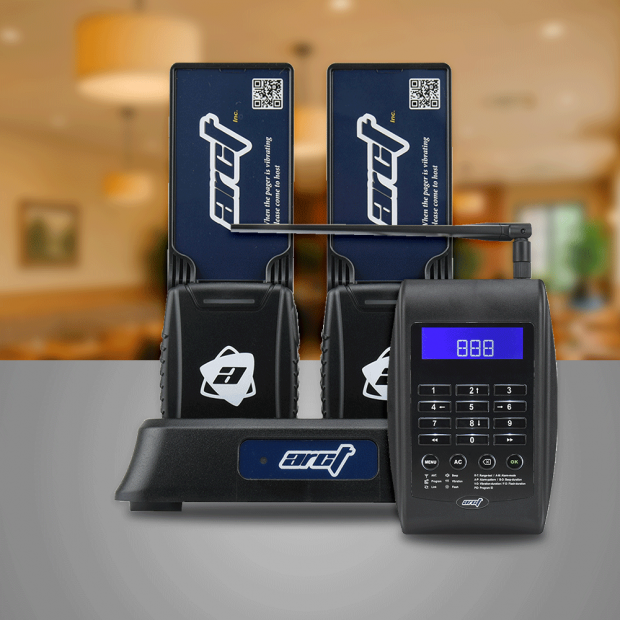

GPK-01P Paddle Guest Paging System
The GPK-01P system is composed of the ATX-02 Transmitter, SP-01 Paddle Upright Pager, and the SPC-01 10-slot Charging Cradle. Designed for convenient pickup and return, the upright pager not only enhances ease of handling but also allows staff to visually check available units at a glance. Each pager has an independent charging slot to ensure reliable power supply and prevent poor contact or power failure issues.
With the ATX-02 transmitter, staff can simply press a button to notify guests when their orders are ready—eliminating the need to call out or search for customers. Guests can remain comfortably seated while waiting; when their pager lights up, vibrates, or beeps, they can proceed to the pickup point, helping improve order and guest experience in the venue.
This smart solution enhances overall service efficiency and provides a quiet and pleasant environment, leading to higher customer satisfaction, loyalty, faster table turnover, and increased revenue.
ARCT offers a wide range of guest pagers to suit different budgets and applications, delivering tailored solutions for front-of-house service needs.
Key Benefits
-
Upright pager design: Easy to grab and return; enhances operational flow
-
Dedicated charging slots: Reliable charging with clear visibility of unit count and status
-
Effective guest notification: Alerts via light, vibration, and sound reduce confusion and waiting
-
Improved customer experience: Quiet environment and seated wait improve comfort
-
Better service management: Monitor queue status efficiently and increase table turnover
-
Flexible configuration: Compatible with different pager models for varying budgets and needs
Product Features
-
User-friendly interface: Intuitive and simple to operate—minimal training required
-
Anti-theft alert: Built-in out-of-range alarm helps prevent pager loss
-
Stable signal reception: High-performance wireless communication with robust reliability
-
Unique system code: Prevents interference from nearby systems
-
Rechargeable NiMH battery: Each pager uses a 1.2V AAA NiMH battery
-
RFID serial storage: Built-in EEPROM allows dealers to add pagers to the system anytime
-
Wide coverage: Transmitter range up to 1 km in open space

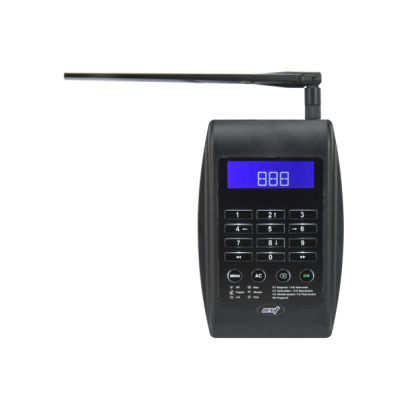

ATX-02 Transmitter Specifications
| Specification | Detail |
|---|---|
| Model | ATX-02 |
| Frequency | 429–470 MHz |
| Data Rate | 1200 bps |
| Modulation | FSK |
| TX Power | Programmable, 10 mW to 1 Watt |
| Modulation Bandwidth | ±4.5 kHz |
| Channel Bandwidth | 25 kHz |
| Harmonic Suppression | < –25 dBm |
| Frequency Stability | ±2 ppm (@ –10°C to +60°C) |
| Antenna Connector | SMA (F) |
| Sound Output | 85 dBa @ 10 cm |
| Power Supply | 5V / 3A adapter |
| Dimensions | 120 × 180 × 26.5 mm |
| Certifications | FCC, CE, NCC |

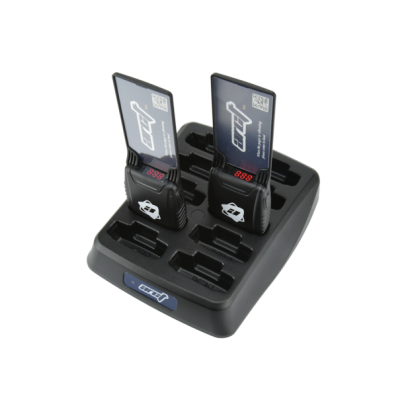

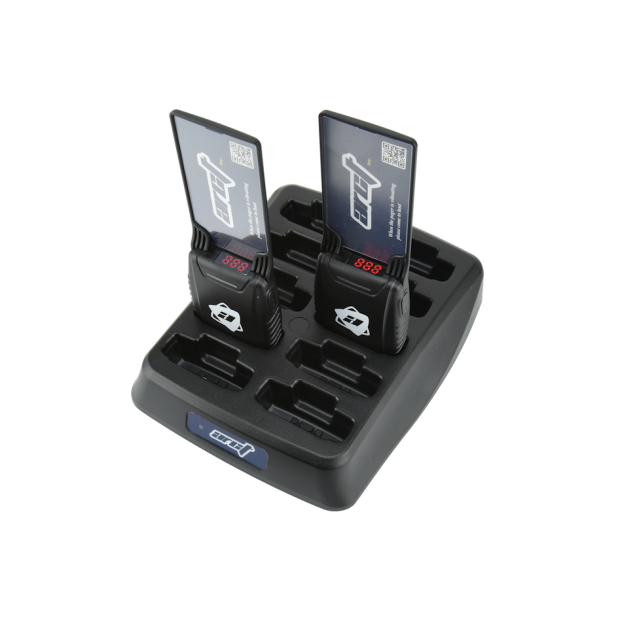

SPC-01 Charging Cradle Specifications
| Specification | Detail |
|---|---|
| Model | SPC-01 |
| Charging Current | 90–100 mA per pager |
| Power Input | 5V / 2A adapter |
| Standby Current | 5 mA |
| Dimensions | 194 × 166 × 36 mm |
| Certifications | FCC, CE |

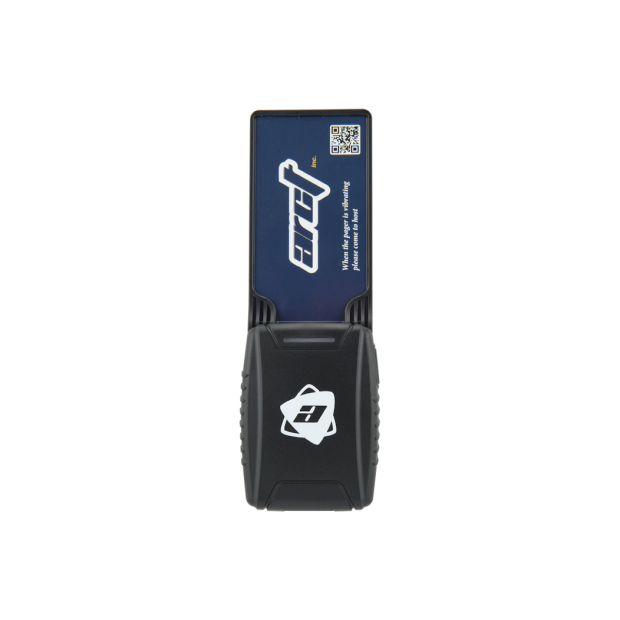

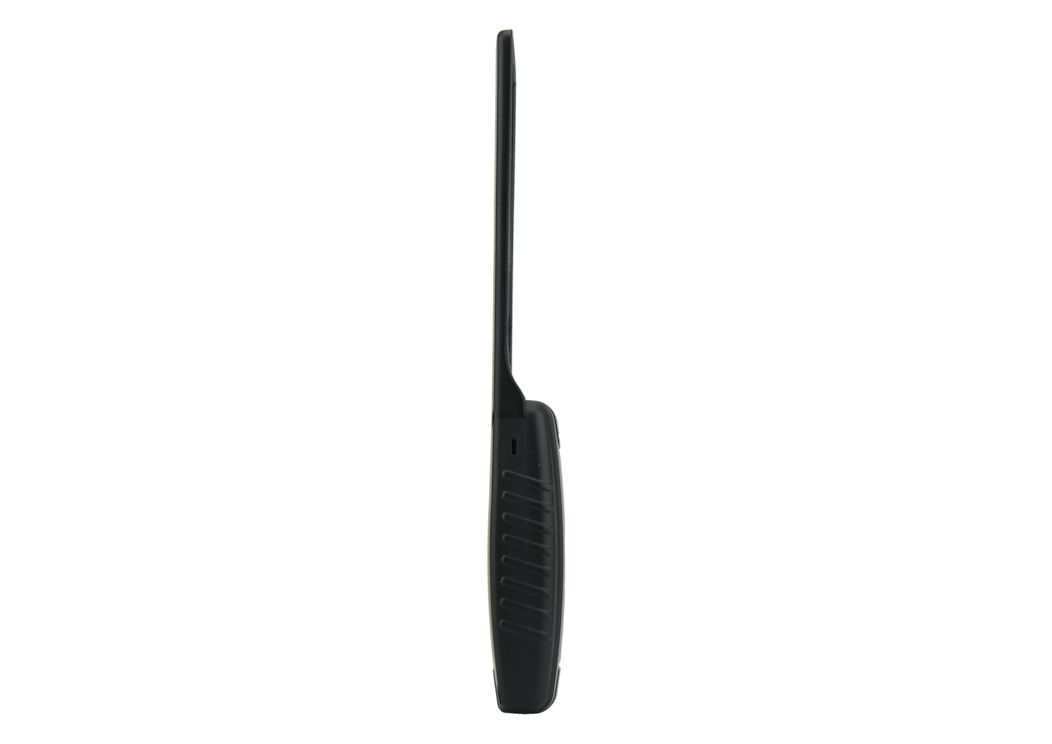

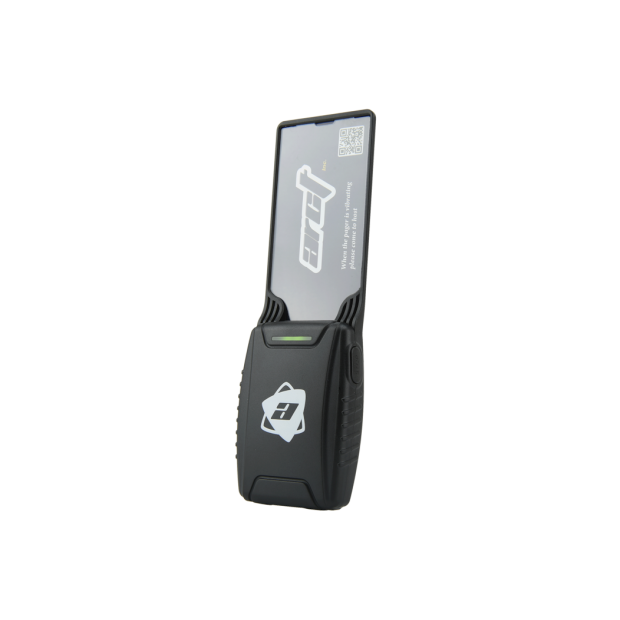

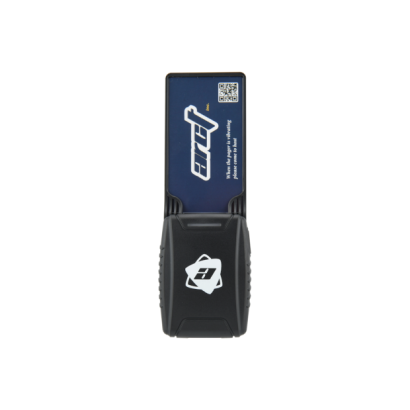

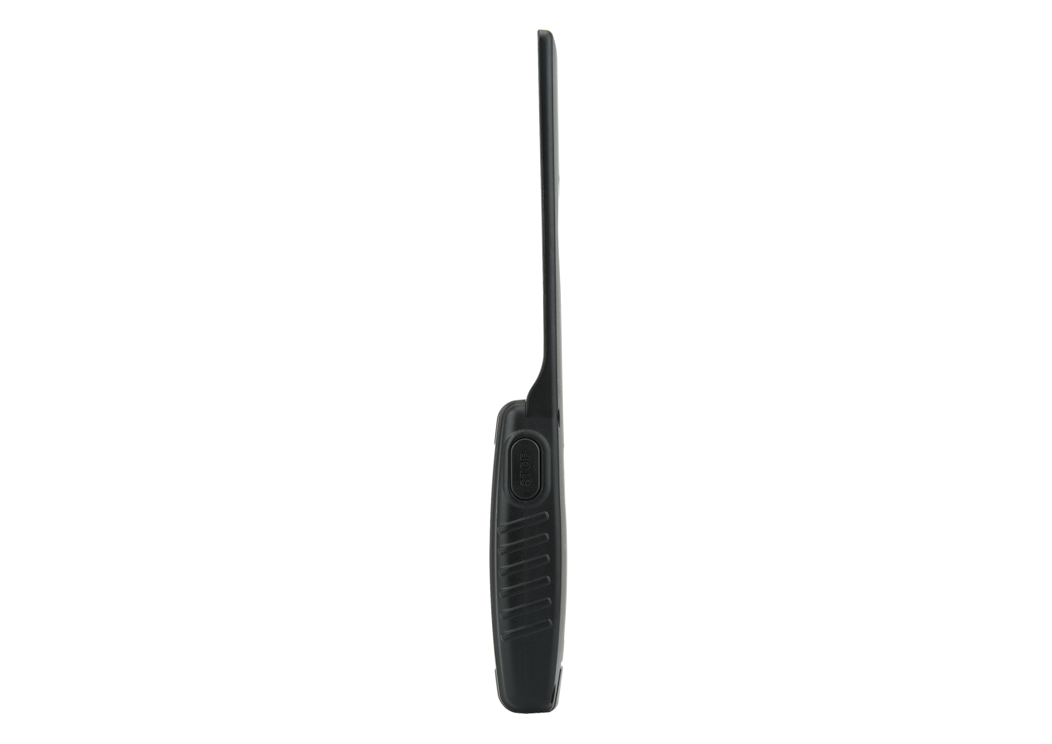

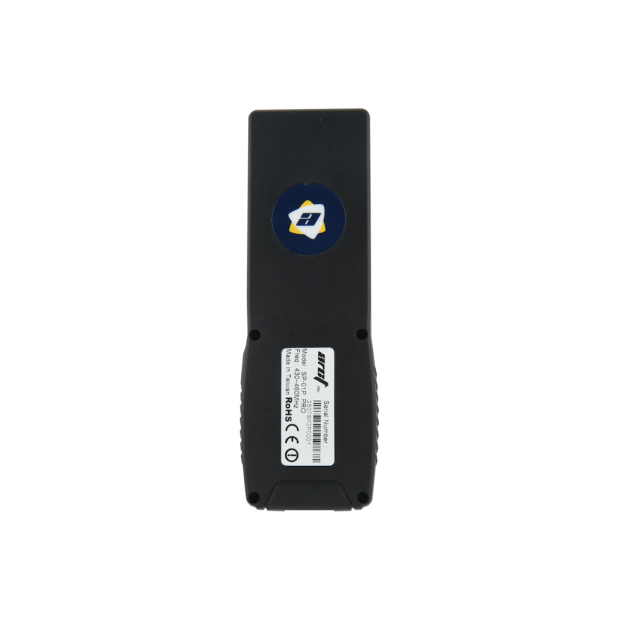

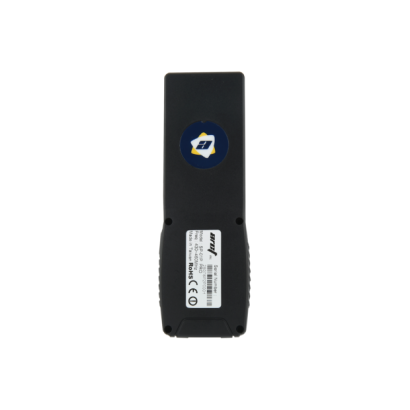

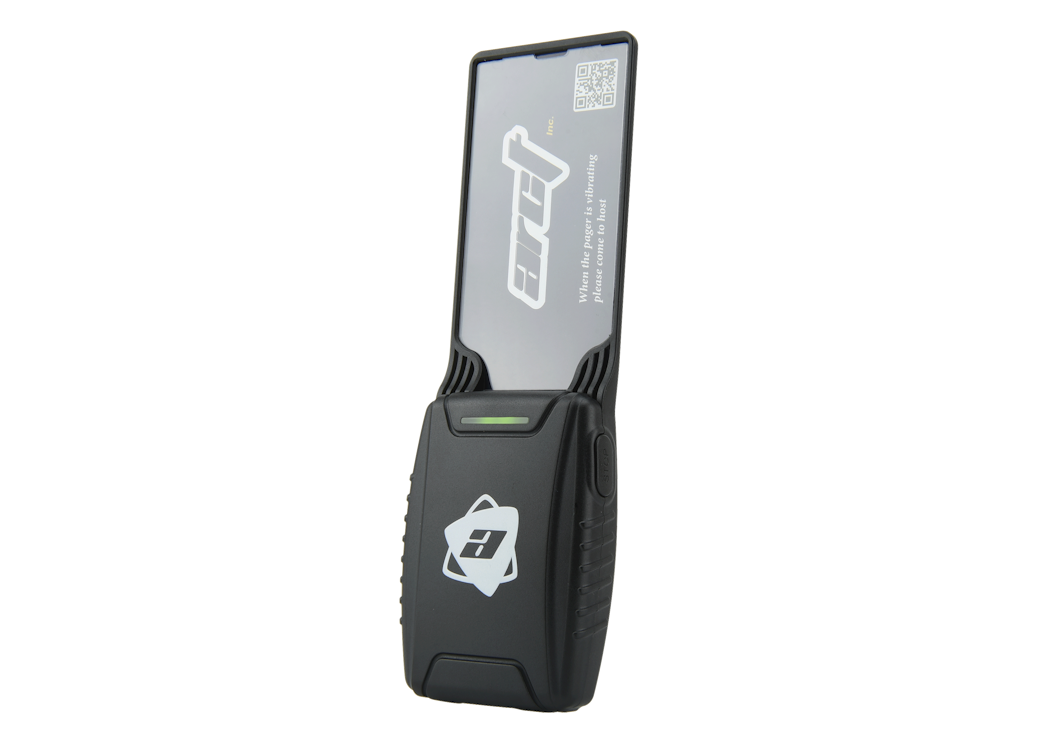

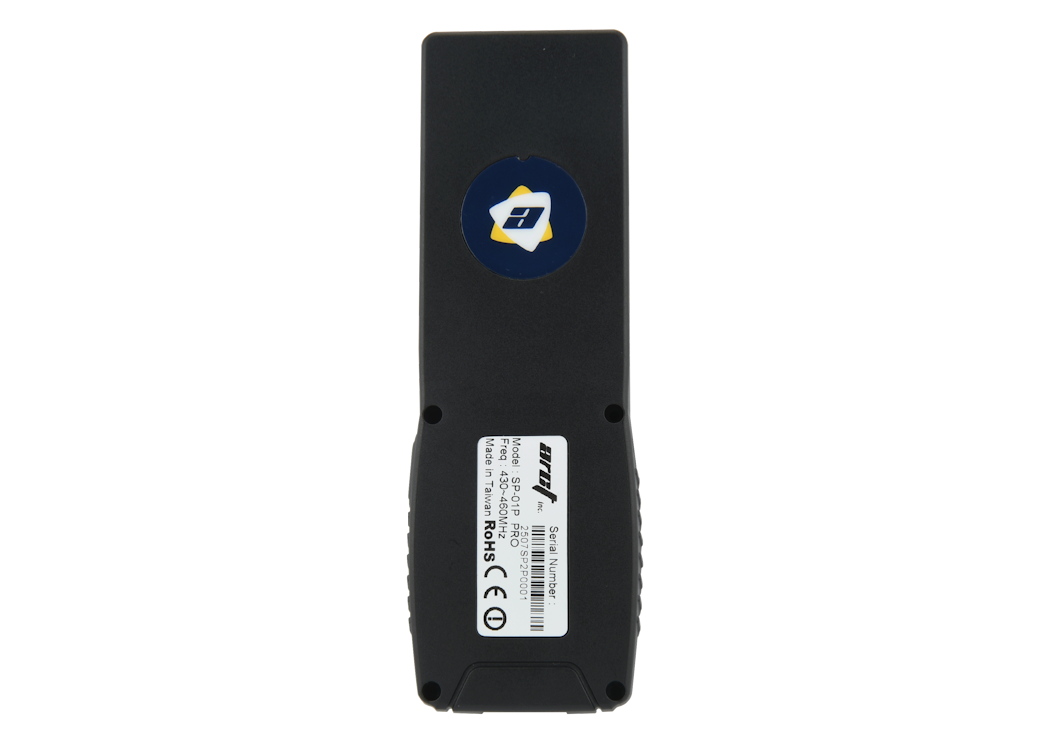

SP-01 Paddle Pager Specifications
| Specification | Detail |
|---|---|
| Frequency | 429–460 MHz |
| Data Rate | 1200 bps |
| Communication Protocol | ARCT Protocol |
| Modulation | FSK |
| Modulation Bandwidth | ±4.5 kHz |
| Channel Bandwidth | 25 kHz |
| Sound Output | 80 dBa @ 10 cm |
| Dimensions | 165 × 56 × 19 mm |
| Battery Type | 1.2V AAA NiMH |
| Battery Life | Up to 96 hours per full charge |
