GPK-02 Starter Guest Paging System

GPK-02 Starter Guest Paging System

Simple, Practical, and Reliable

The GPK-02 Starter is a high-efficiency food pickup paging system specifically designed for small to medium-sized service environments such as cafes, dessert shops, food courts, and quick-service restaurants.
/
/
/
/
/
  • GPK-02P-1.png
  • GPK-02P-6.png
  • GPK-02P-1.png
  • GPK-02P-2.png
  • GPK-02P-6.png
DETAIL

GPK-02 Starter Guest Paging System: The Best Entry-Level Solution for Small Businesses

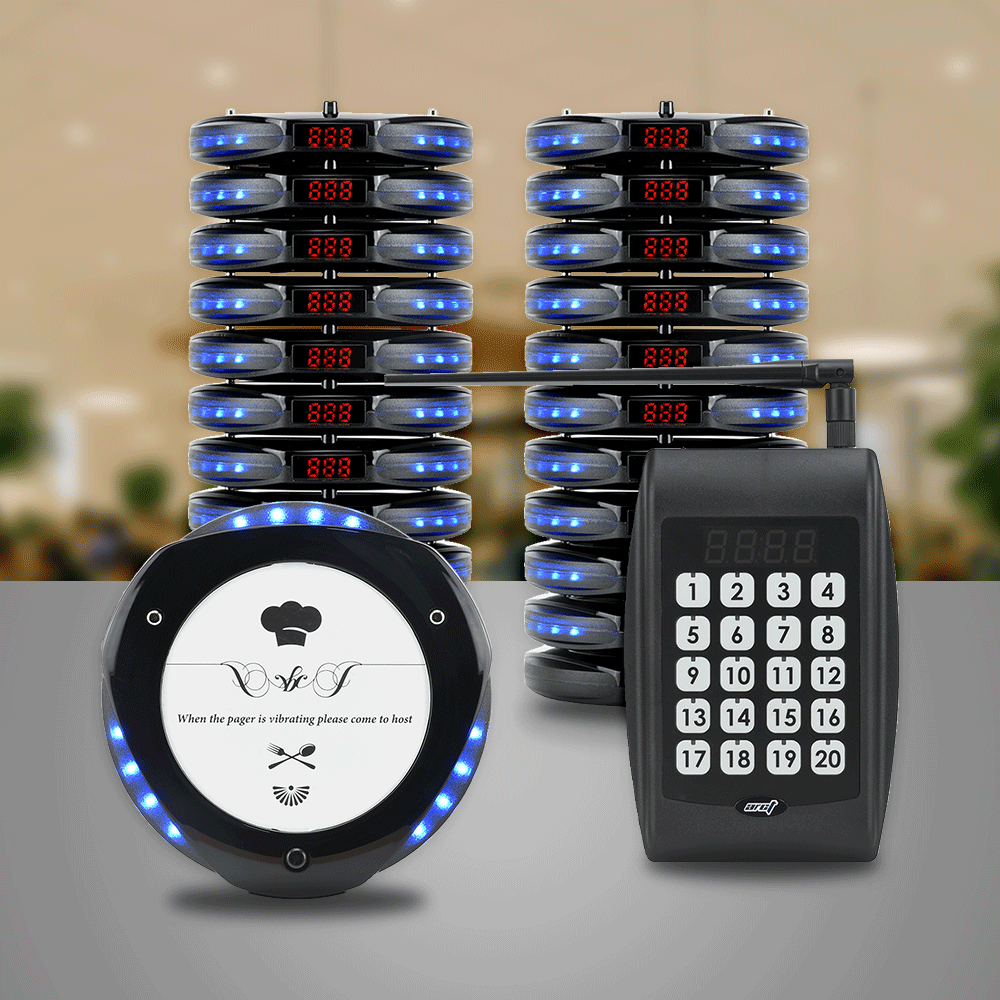

The GPK-02 Starter is a high-efficiency guest paging solution tailored for small to medium-sized service venues. This starter package includes:

  • GP-02Pro Guest Pager

  • ATX-02B Basic Transmitter

  • GPC-02 Stackable Charging Dock

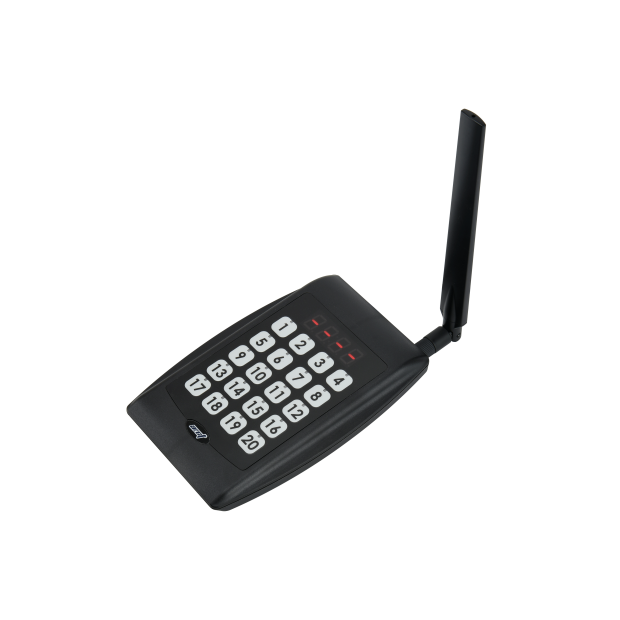

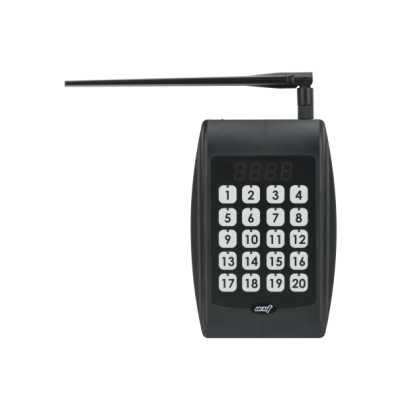

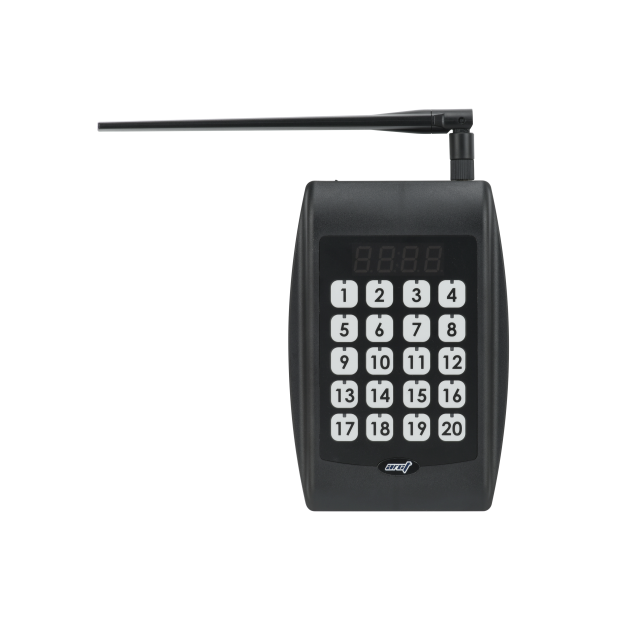

Designed for simplicity, the ATX-02B transmitter features a direct key-to-pager interface—each button corresponds to one pager. No setup required, making it ideal for businesses managing up to 20 guest pagers.

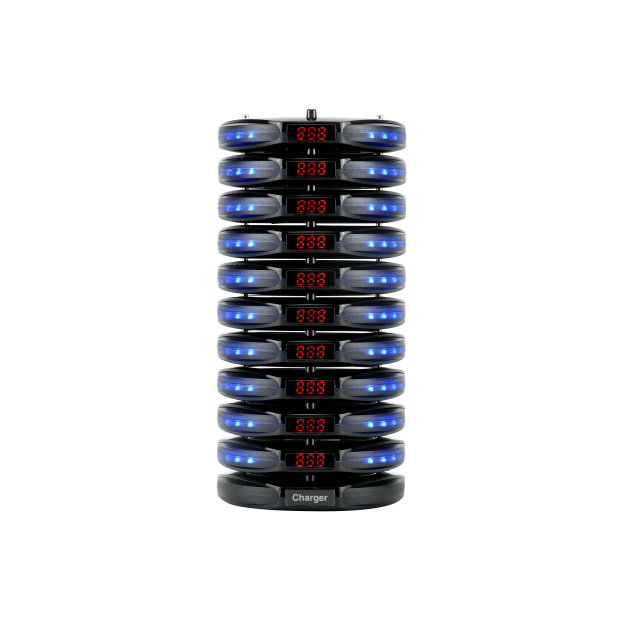

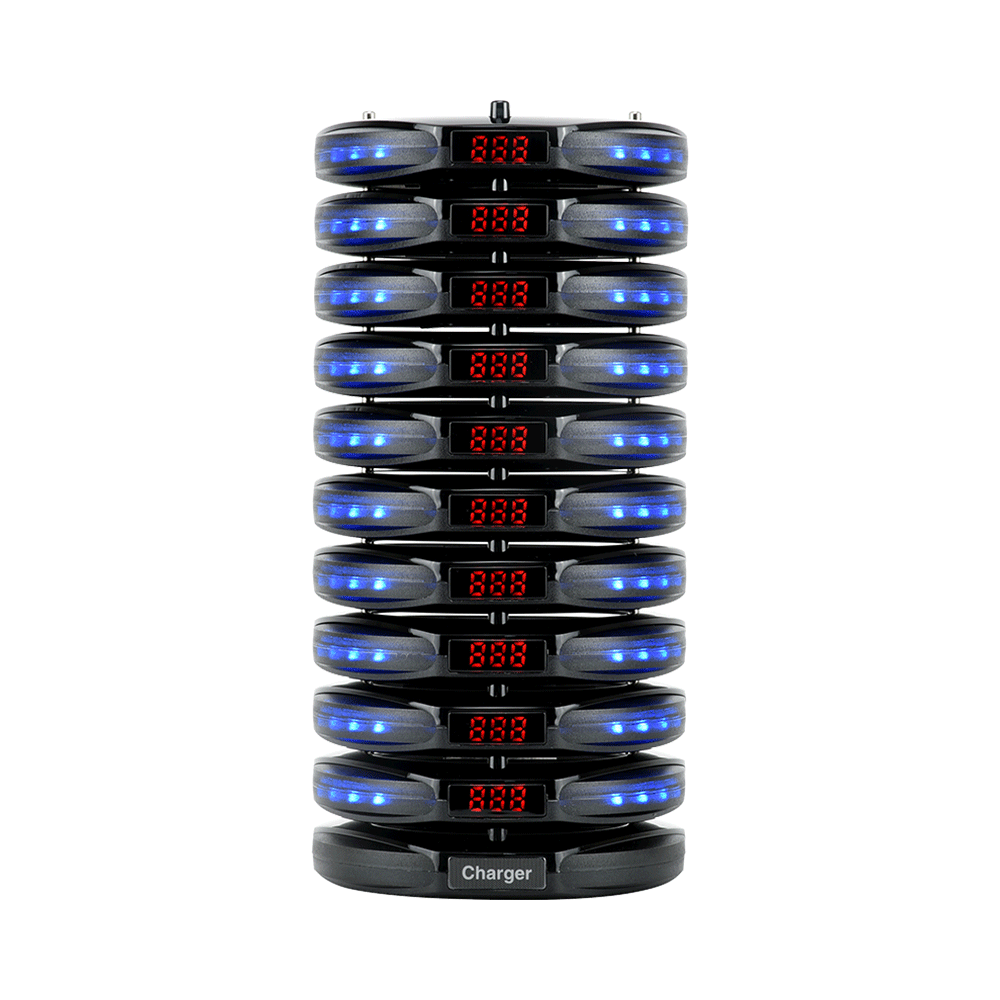

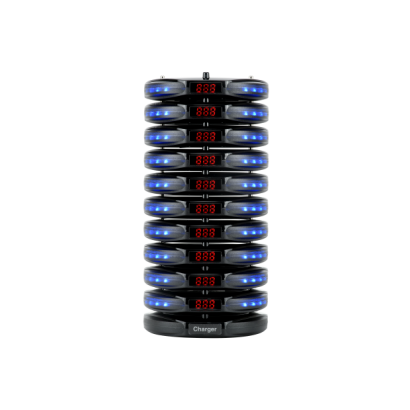

The GPC-02 charging dock supports vertical stacking of pagers, requiring only about 10cm of space. This compact design keeps your counter organized while enabling easy charging and management.

With this system, staff can notify guests when their order is ready with a simple press of a button. The pager in the guest’s hand will vibrate, flash, and emit a sound alert—ensuring timely pickup without the need for queueing or repeated status checks.

This streamlined process not only enhances customer satisfaction and service quality but also creates a quieter and more comfortable dining environment, improves table turnover, and boosts revenue and return visits.

ARCT also offers various pager models and accessories to meet different business needs and budgets. Flexible configuration allows for quick and easy deployment.

Product Advantages

  • User-friendly interface: One-button-per-pager design allows immediate use with no training needed.

  • Space-saving charging dock: Stackable design keeps counters neat and pagers organized.

  • Triple alert mechanism: Vibration, flashing light, and sound effectively notify guests.

  • Enhanced customer experience: Reduces wait times and confusion for a quieter, more efficient operation.

  • Improved operational performance: Increases table turnover and service efficiency, driving revenue and customer loyalty.

Features

  • Intuitive interface: Simple and clear operation that anyone can quickly learn.

  • Stable wireless communication: Reliable, high-quality reception with stylish design.

  • Unique system code: Prevents cross-system interference from neighboring devices.

  • Rechargeable NiMH battery: Each pager uses a built-in 1.2V AAA NiMH cell.

  • Extended coverage: Up to 1km range between transmitter and pager in open space.

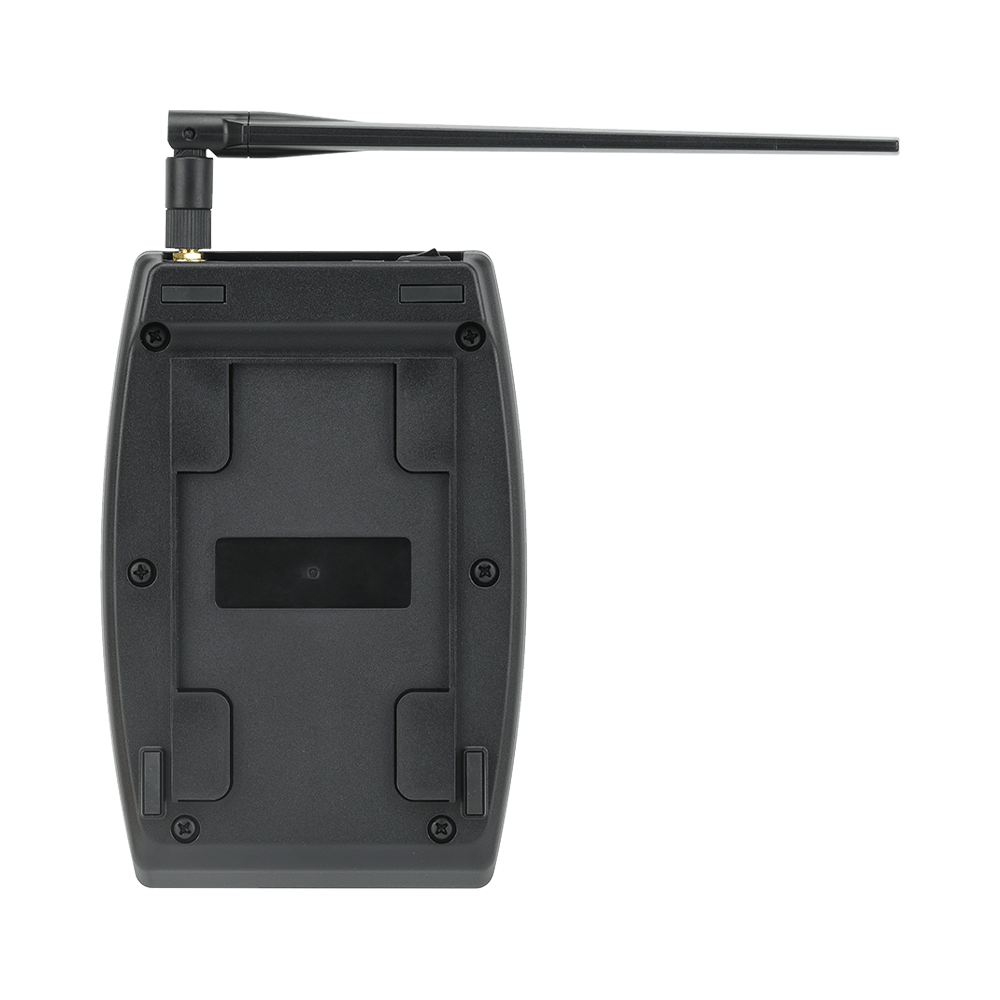

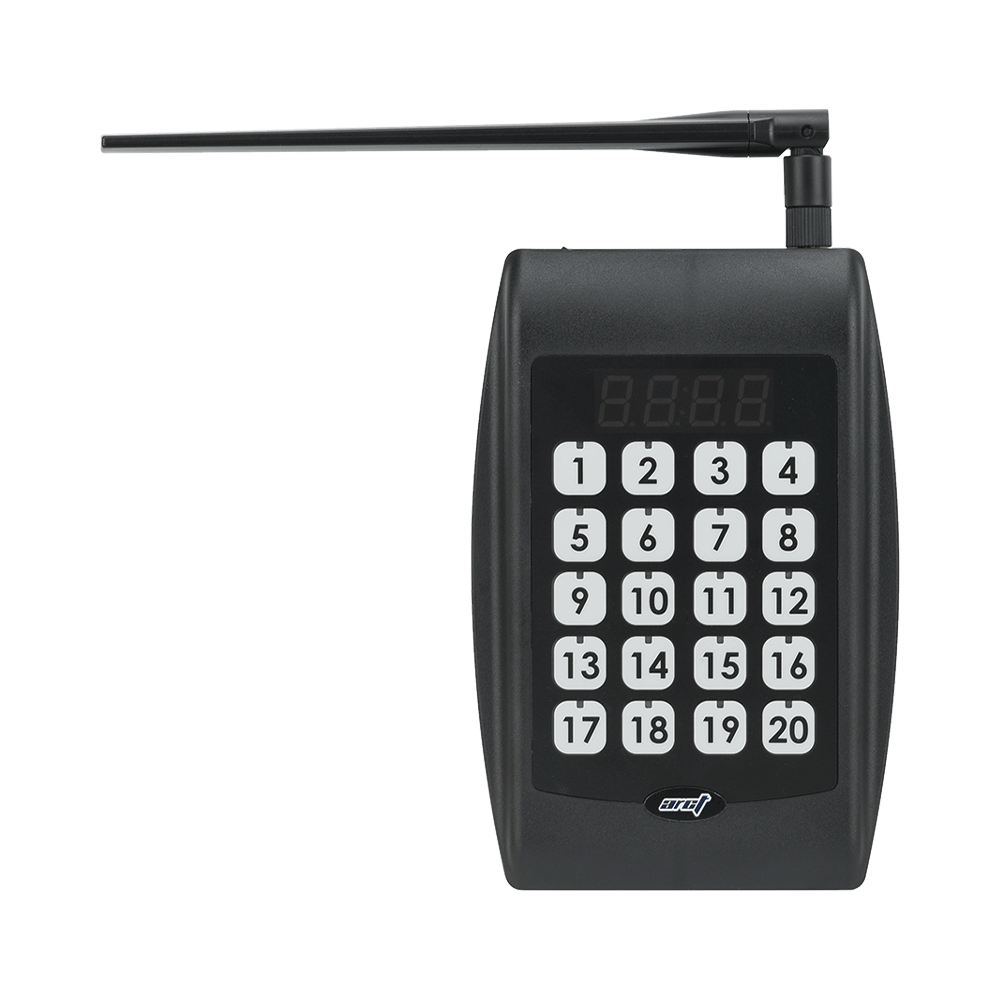

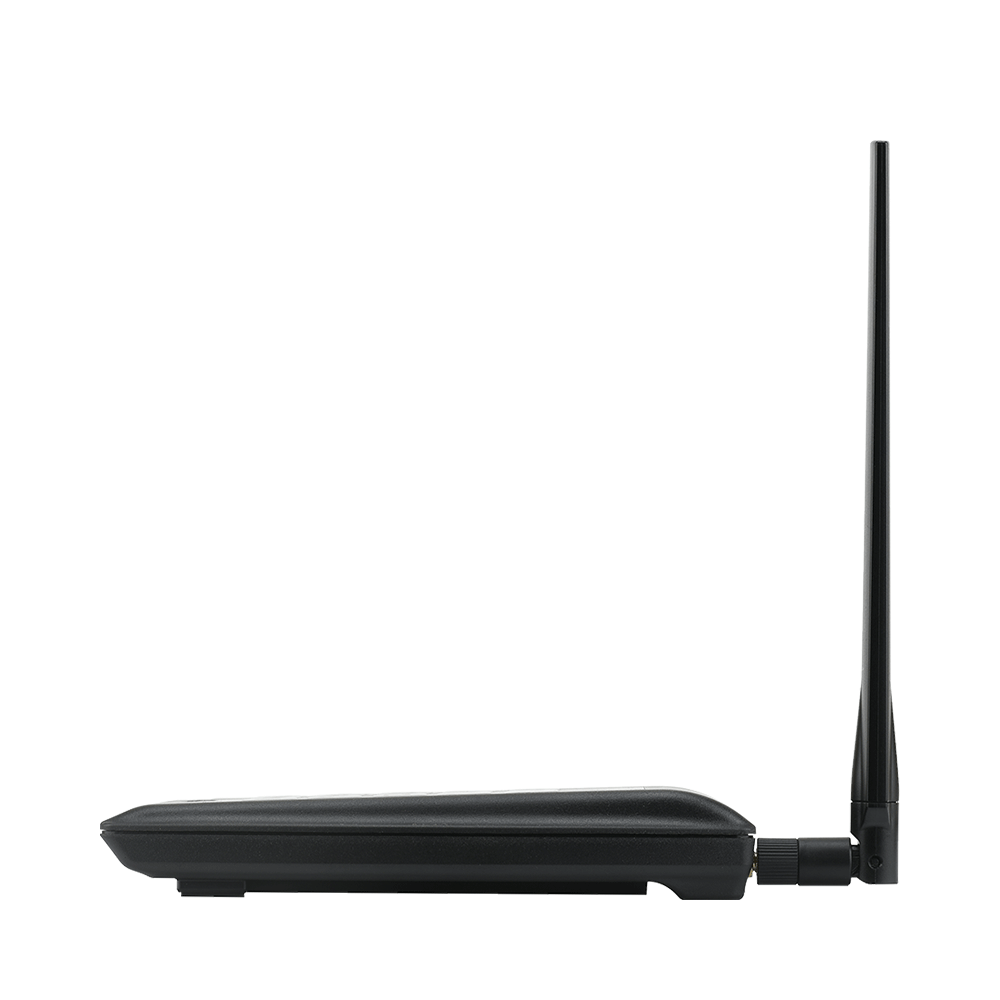

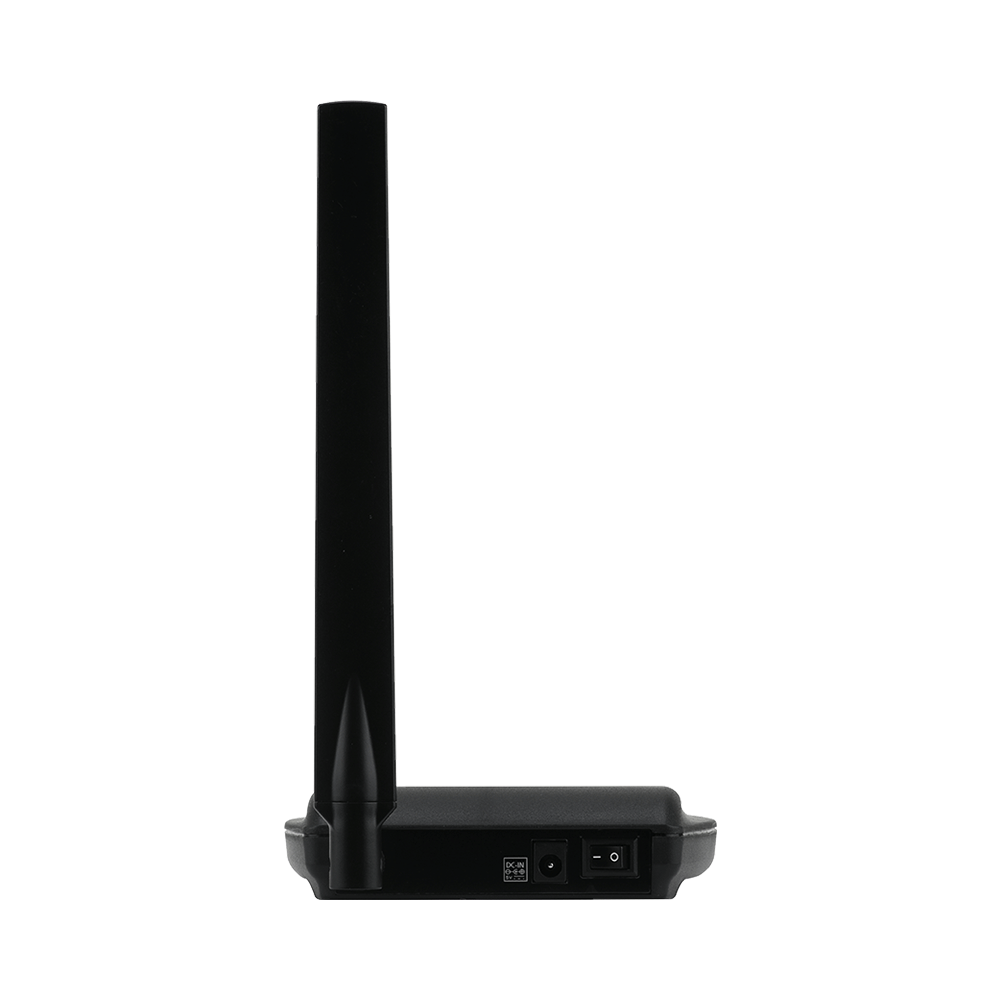

ATX-02B Transmitter Specifications

  • Model: ATX-02B

  • Frequency: 429–460 MHz

  • Output Power: 0.5W

  • Communication Protocol: ARCT Protocol

  • Data Rate: 1200 bps

  • Modulation: FSK

  • Modulation Bandwidth: ±4.5K

  • Channel Bandwidth: 25KHz

  • Harmonic Suppression: < -25dBm

  • Frequency Stability: 2ppm (–10°C to +60°C)

  • Connector: SMA (F)

  • Sound Level: 85 dBa @10cm

  • Power Input: 5V / 2A adapter

  • Current Draw: Standby: 10mA / Transmit: 500mA

  • Dimensions: 120 × 180 × 26.5 mm

  • Certifications: FCC, CE, NCC

GPC-02 Charging Dock Specifications

  • Model: GPC-02

  • Charging Current: 90–100 mA (per pager)

  • Power Input: 5V / 2A adapter

  • Standby Current: 5mA

  • Dimensions: 100 × 100 × 17 mm

  • Certifications: FCC, CE

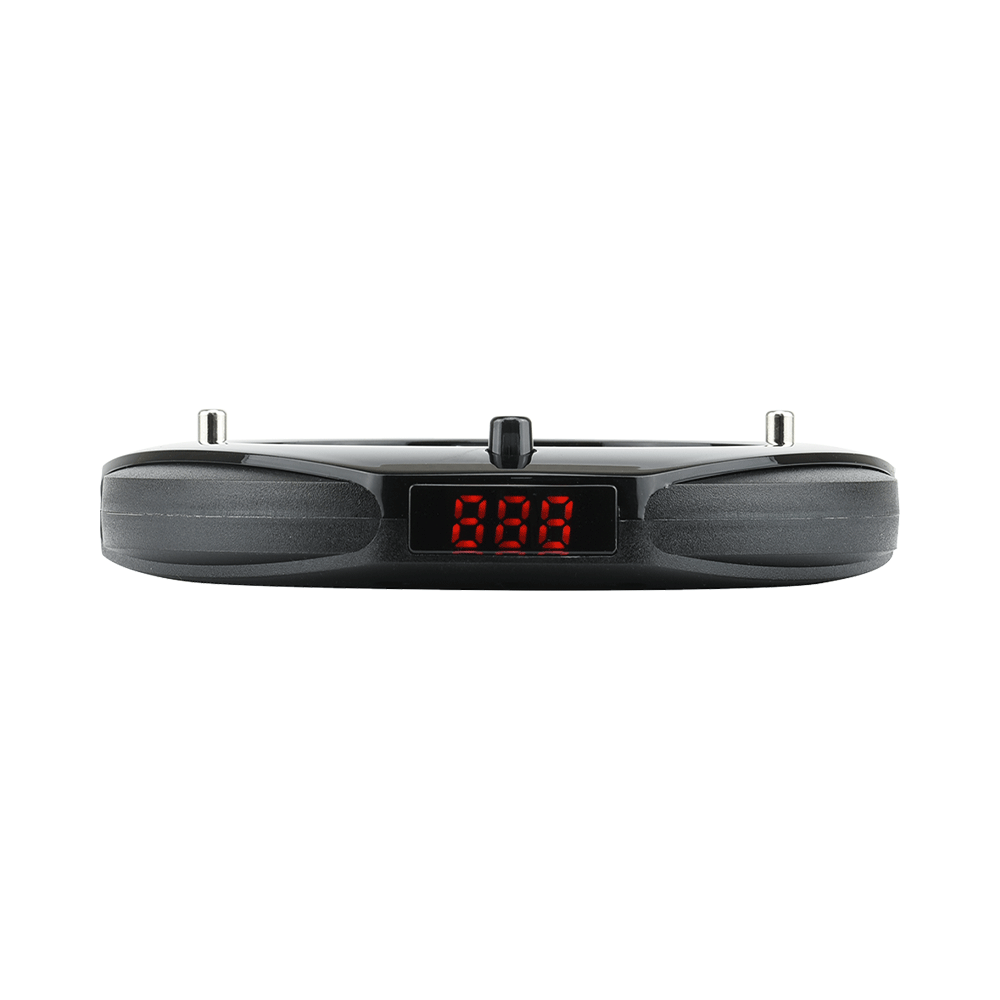

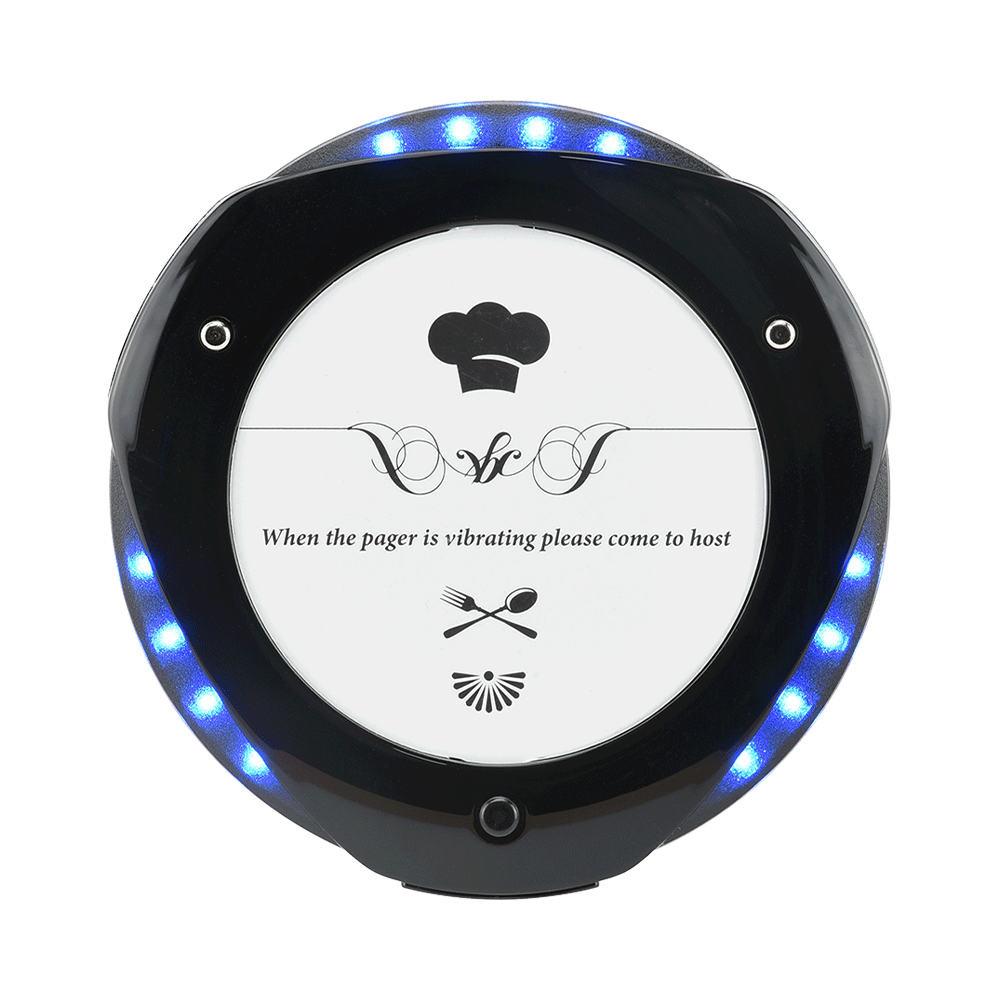

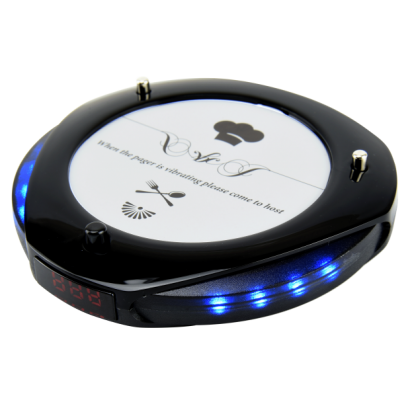

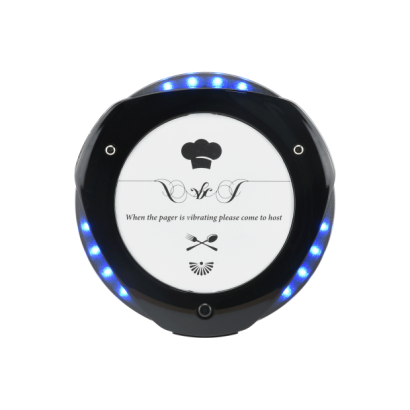

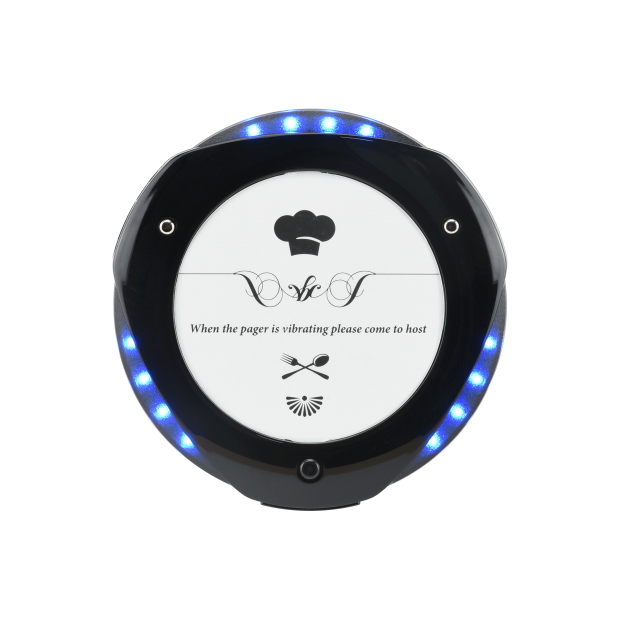

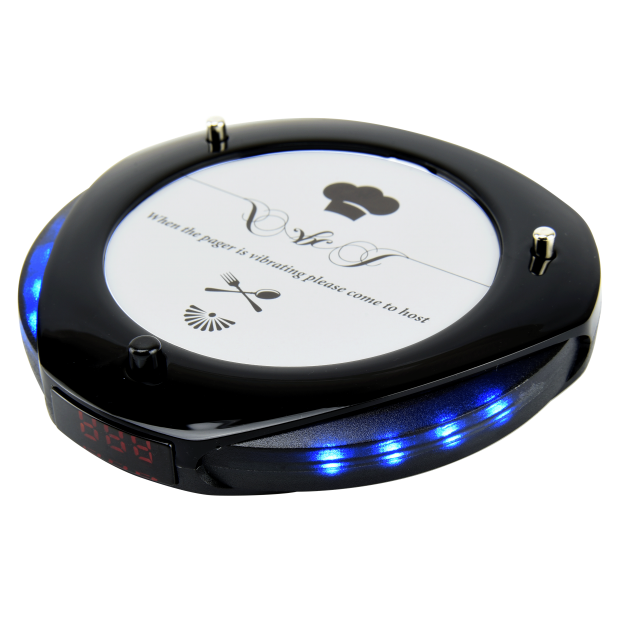

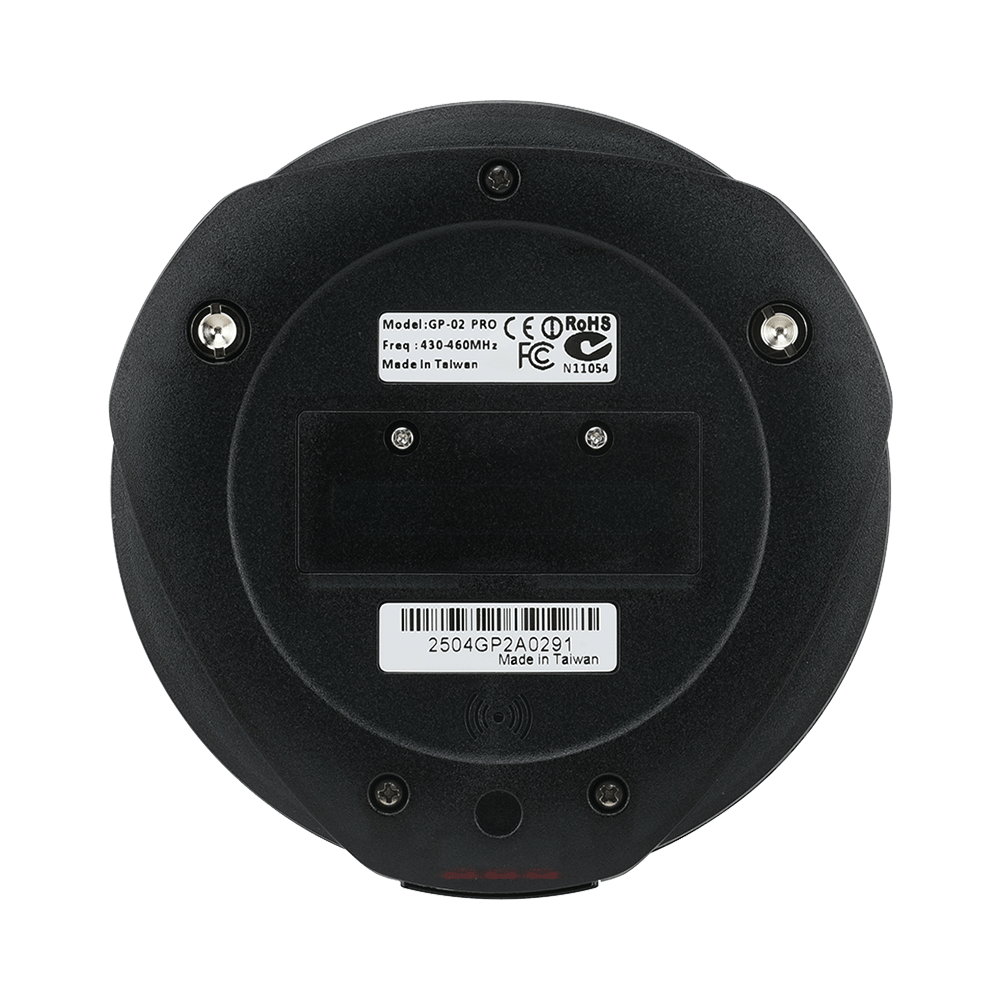

GP-02Pro Pager Specifications

  • Frequency: 429–460 MHz

  • Data Rate: 1200 bps

  • Communication Protocol: ARCT Protocol

  • Modulation: FSK

  • Modulation Bandwidth: ±4.5K

  • Channel Bandwidth: 25KHz

  • Sound Level: 80 dBa @10cm

  • Dimensions: 100 × 100 × 16.5 mm

  • Power Source: 1.2V NiMH AAA rechargeable battery

  • Certifications: FCC, CE, NCC
