GPK-02P Guest Paging System:

GPK-02P Guest Paging System:

Space-Saving Solution for Efficient Order Pickup

The GPK-02P system is composed of the ATX-02 transmitter, GP-02Pro paging receiver, and GPC-02 stackable charging base. Its key feature is the space-saving stackable charging design, which allows all pagers to be neatly organized in just 10 cm of counter space—making it an ideal solution for locations with limited room, such as small restaurants, cafés, or kiosks.
This efficient and compact setup ensures smooth customer flow and reduces clutter at the counter while maintaining excellent service performance.
  • ATX-02-1-1M.png
  • GPK-02P-1.png
  • GPK-02P-2.png
  • GPK-02P-4.png
  • GPK-02P-6.png
DETAIL

GPK-02P Paging System — Space-Efficient, High-Performance Order Notification Solution

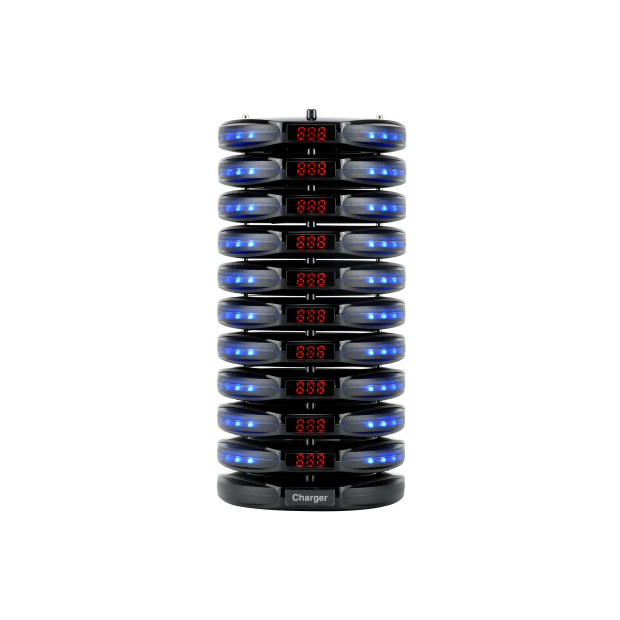

The GPK-02P paging system includes the ATX-02 transmitter, GP-02Pro pagers, and a GPC-02 stackable charging base. Its standout feature is the stackable charging design, which allows all pagers to be neatly arranged in just 10 cm of counter space—making it ideal for small or space-constrained environments such as kiosks, food stalls, or compact restaurants.

With the GPK-02P system, customers no longer need to wait in line or worry about missing their order. After placing an order, they can relax at their seats. When the order is ready, staff can use the ATX-02 transmitter to send a signal to the pager. The pager alerts the customer with flashing lights, vibration, or sound, guiding them to pick up their meal efficiently.

This system improves service flow and enhances the customer experience. It not only boosts operational efficiency and table turnover, but also helps create a quiet and comfortable dining environment—ultimately increasing customer satisfaction, loyalty, and overall revenue.

ARCT offers various pager models to accommodate different budgets and venue types, helping businesses build the ideal smart dining solution.


Key Benefits

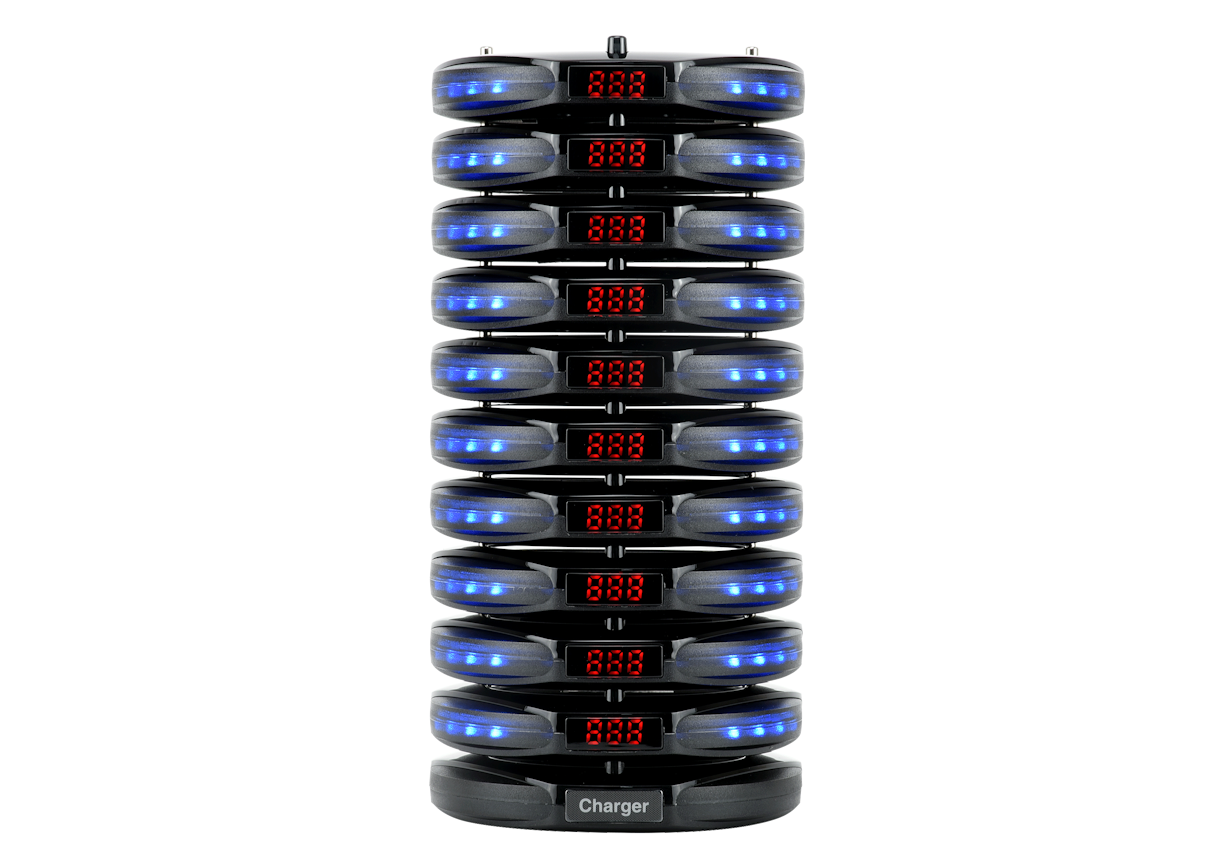

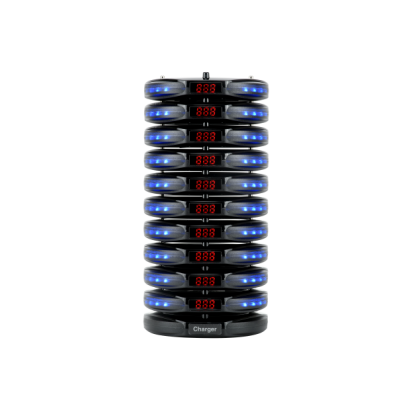

  • Space-saving: Stackable charging base requires only 10 cm of width to store all pagers neatly.

  • Easy operation: One-button paging — no need for staff to walk around calling out numbers.

  • Excellent user experience: Flash, vibration, and sound notifications keep customers informed without stress.

  • Increased efficiency: Streamlines the pickup process and improves turnover rate and revenue.

  • Quiet dining environment: Replaces voice calling with discreet alerts.

  • Scalable system: Multiple pager models available to suit various business needs and budgets.

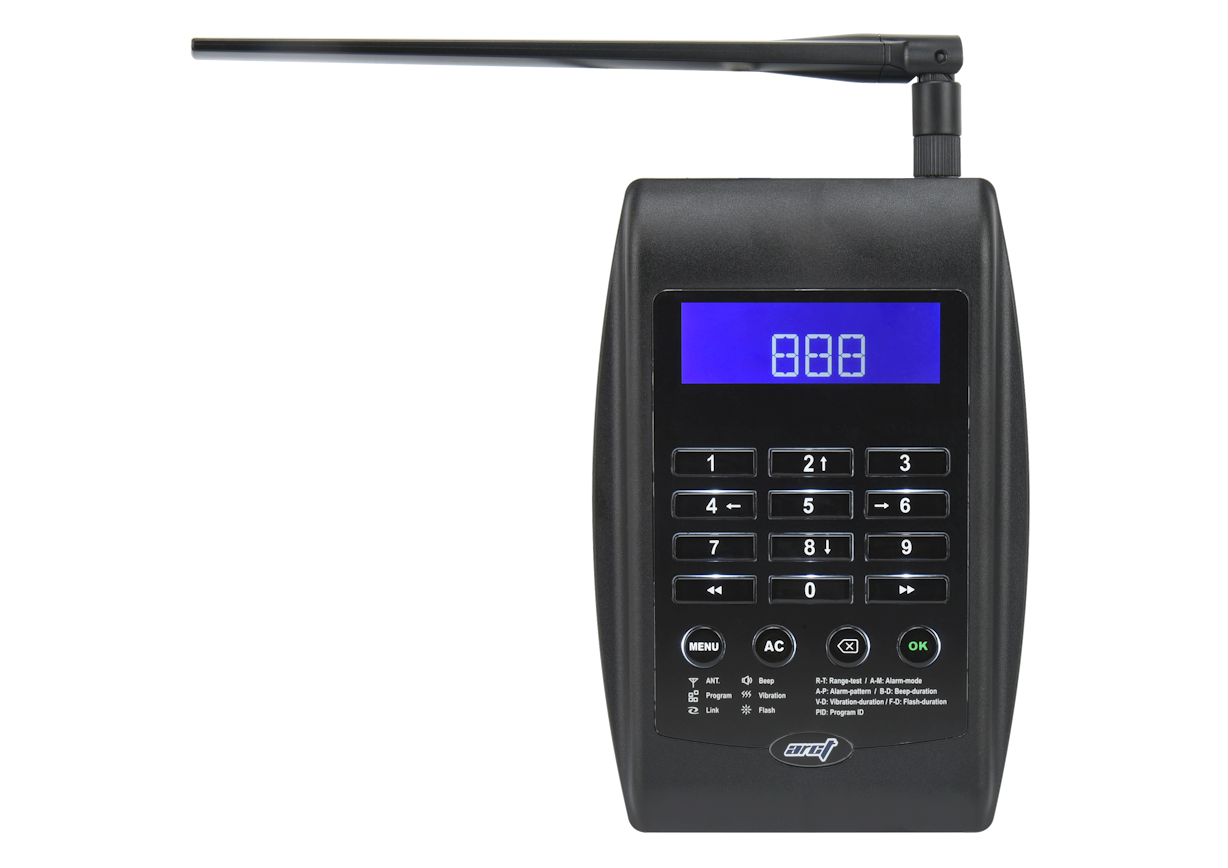

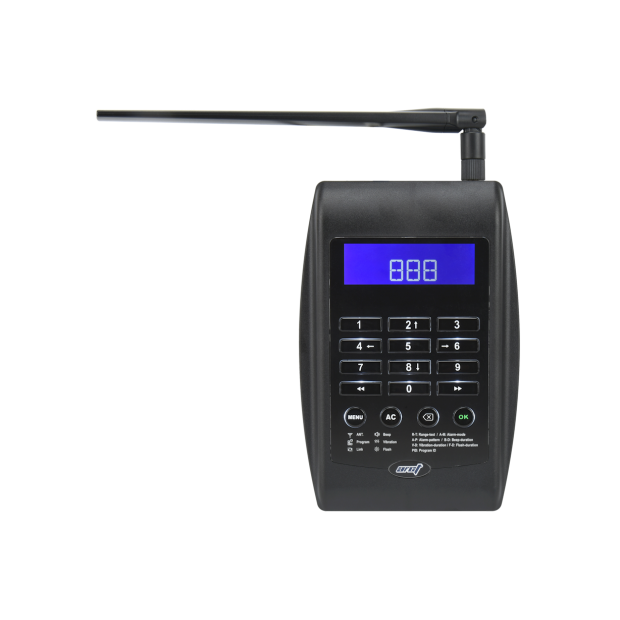

ATX-02 Transmitter Specifications

Specification Details
Model ATX-02
Frequency 429~470 MHz
Transmission Rate 1200 bps
Modulation FSK
Transmit Power Programmable: 10 mW ~ 1 W
Modulation Bandwidth ±4.5K
Channel Bandwidth 25K
Harmonic Suppression < -25 dBm
Frequency Stability 2 ppm @ -10~+60°C
Output Connector SMA (F)
Audio Volume 85 dBa @ 10 cm
Current Consumption Standby: 10 mA / Transmit: 800 mA
Power Input 5V / 3A adapter
Dimensions 120 x 180 x 26.5 mm
Certifications FCC, CE, NCC

GPC-02 Charging Base Specifications

Specification Details
Model GPC-02
Charging Current 90~100 mA (each pager)
Power Input 5V / 2A adapter
Standby Current 5 mA
Dimensions 100 x 100 x 17 mm
Certifications FCC, CE

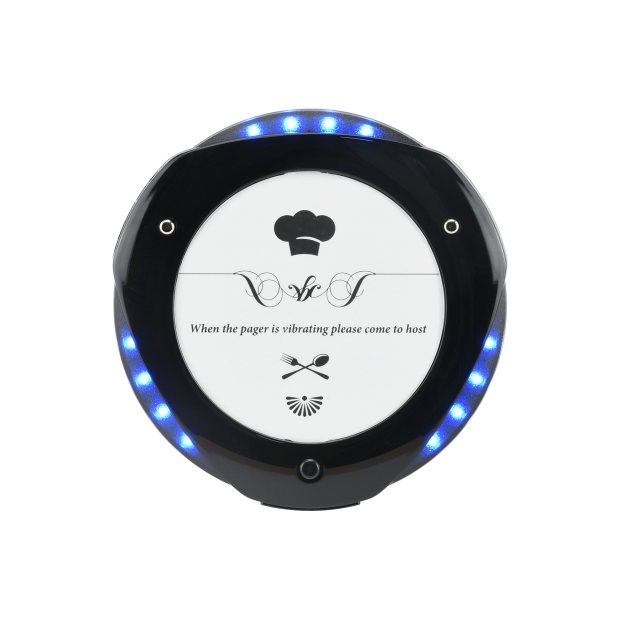

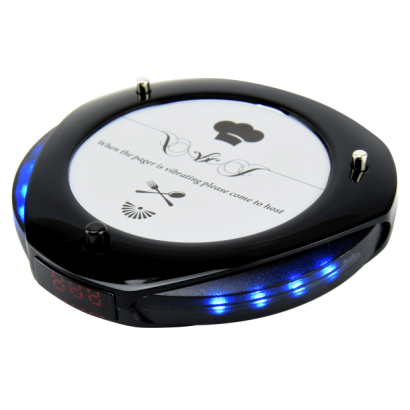

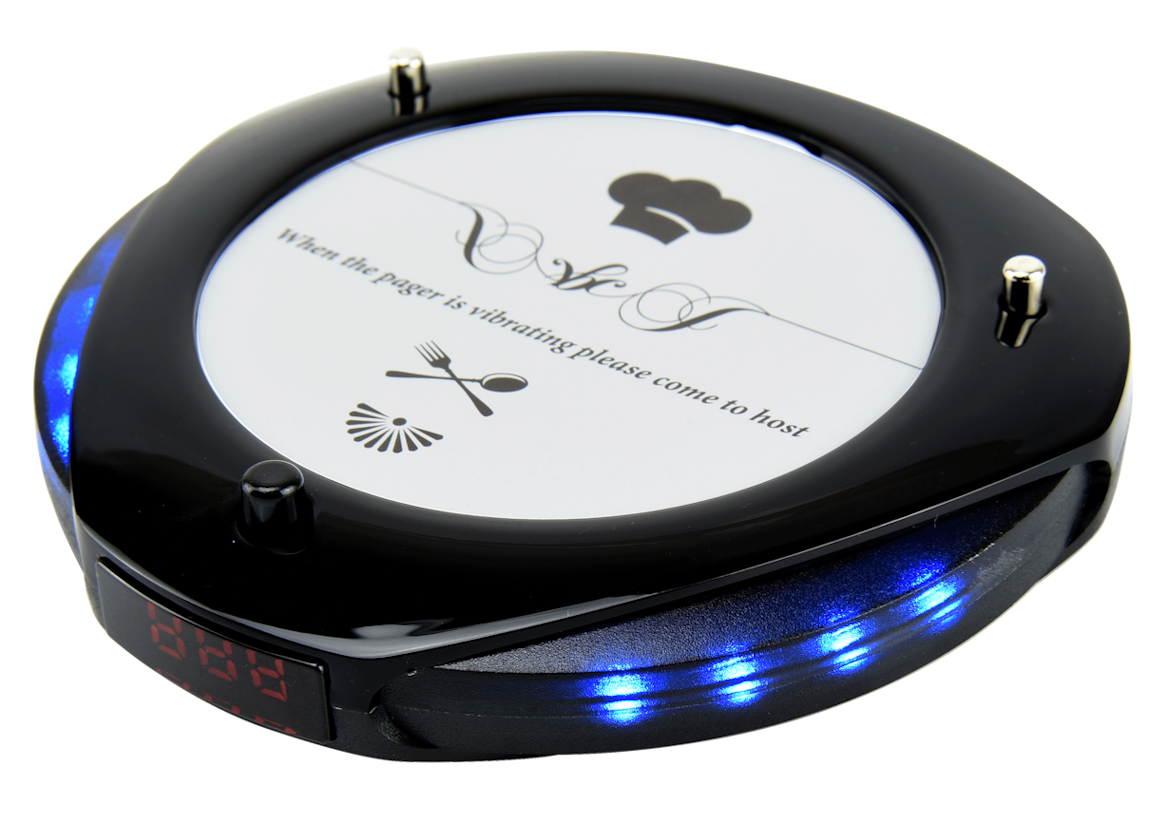

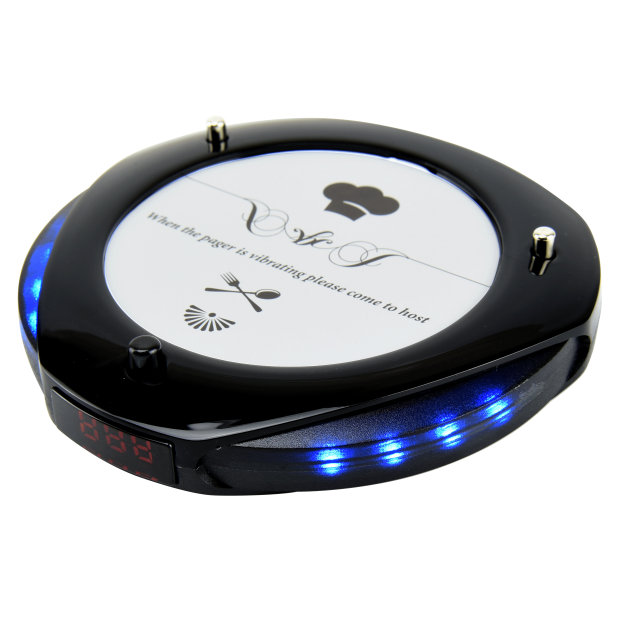

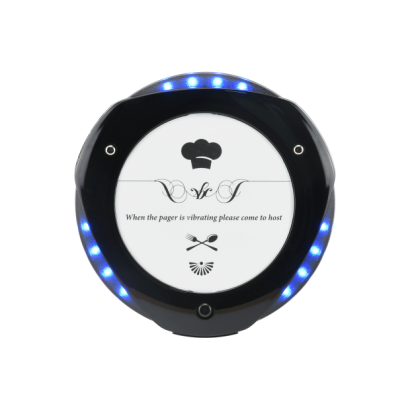

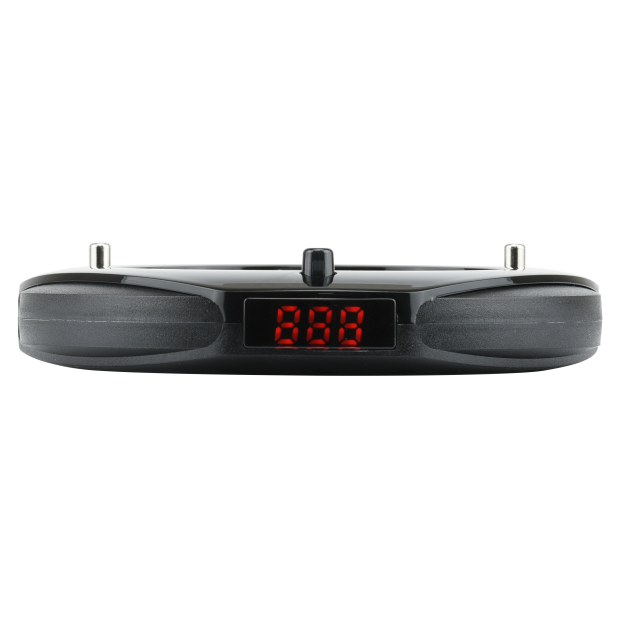

GP-02Pro Pager Specifications

Specification Details
Frequency 429~460 MHz
Transmission Rate 1200 bps
Communication Format ARCT Protocol
Modulation FSK
Modulation Bandwidth ±4.5K
Channel Bandwidth 25 KHz
Audio Volume 80 dBa @ 10 cm
Dimensions 100 x 100 x 16.5 mm
Power Supply 1.2V Ni-MH AAA battery
Certifications FCC, CE, NCC
