  1. Guest Call System
GPK-02P Pastel Series Guest Paging System

GPK-02P Pastel Series Guest Paging System

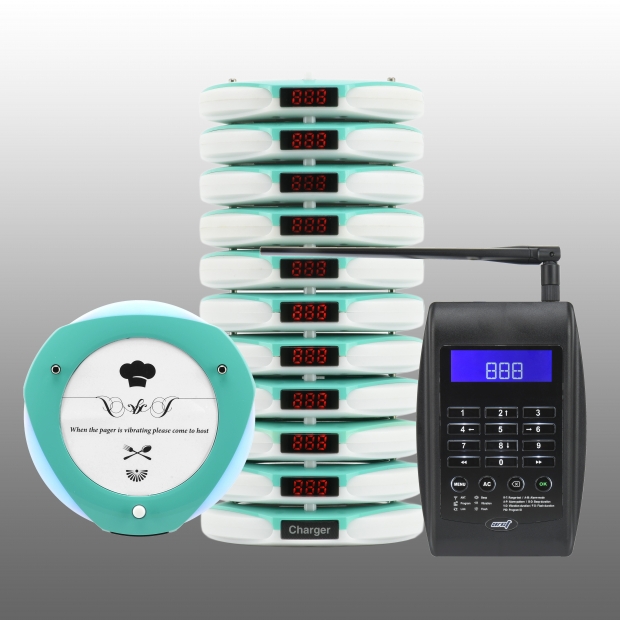

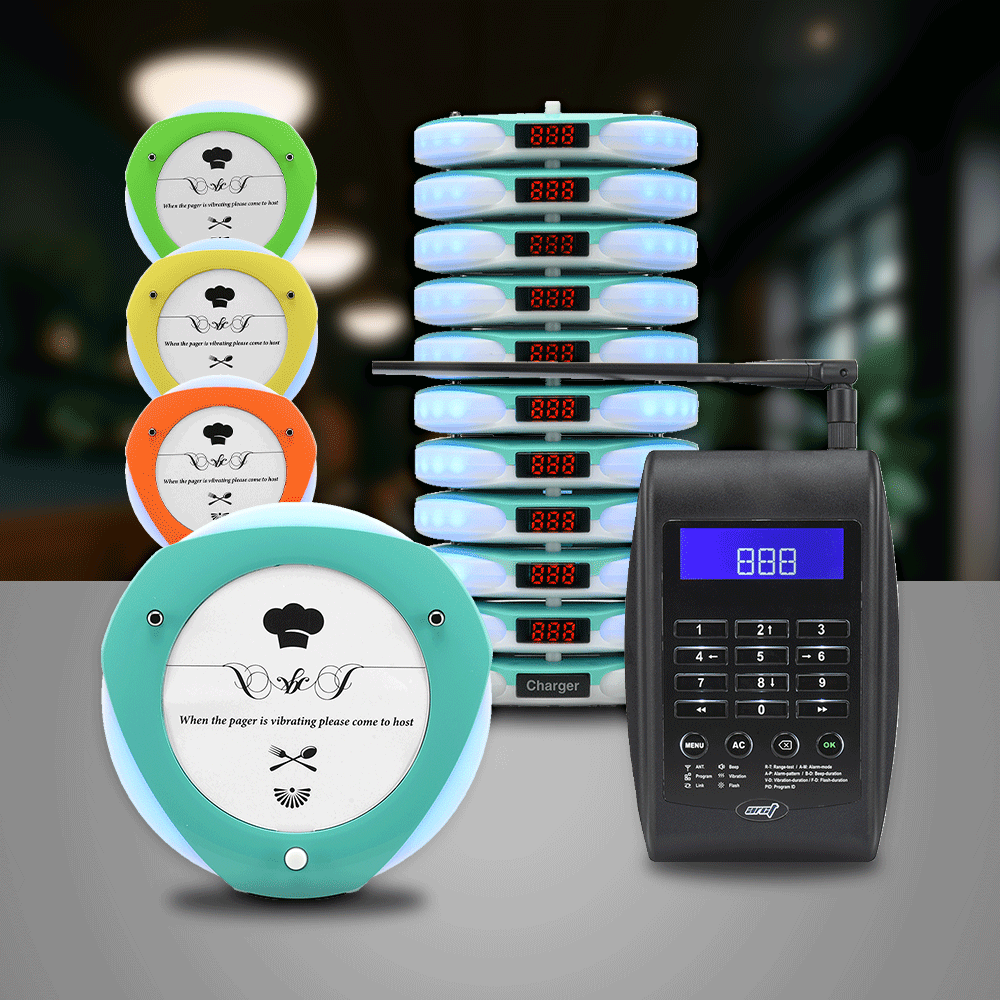

The GPK-02P Pastel Series Guest Paging System includes the ATX-02 transmitter, GP-02Pro macaron color pagers, and the GPC-02 stackable charging dock.

The GP-02Pro pagers come in four vibrant Pastel Series colors: Fresh Green, Energetic Orange, Sunny Yellow, and Classic Tiffany Blue. Paired with a pure white body, the design is fresh and stylish—perfectly blending into both modern minimalist and cozy, charming store interiors. This adds a lively and refined touch to the counter area, enhancing the customer’s first impression.
/
/
/
/
/
/
  • GPK-02P-WH.jpg
  • 修圖工作區域-1.png
  • 修圖工作區域-2.png
  • 修圖工作區域-3.png
  • 修圖工作區域-4.png
  • 修圖工作區域-5.png
DETAIL

GPK-02P Macaron Series – Stylish and Efficient Paging System for Food Pickup

Brighten Your Counter Area with a Fresh, Vibrant Look

The GPK-02P Macaron Series Paging System includes:

  • ATX-02 Transmitter

  • GP-02Pro Macaron Paging Device

  • GPC-02 Stackable Charging Base

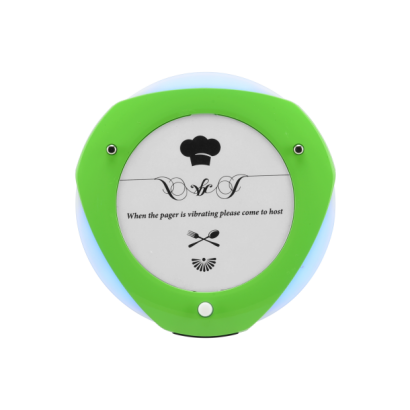

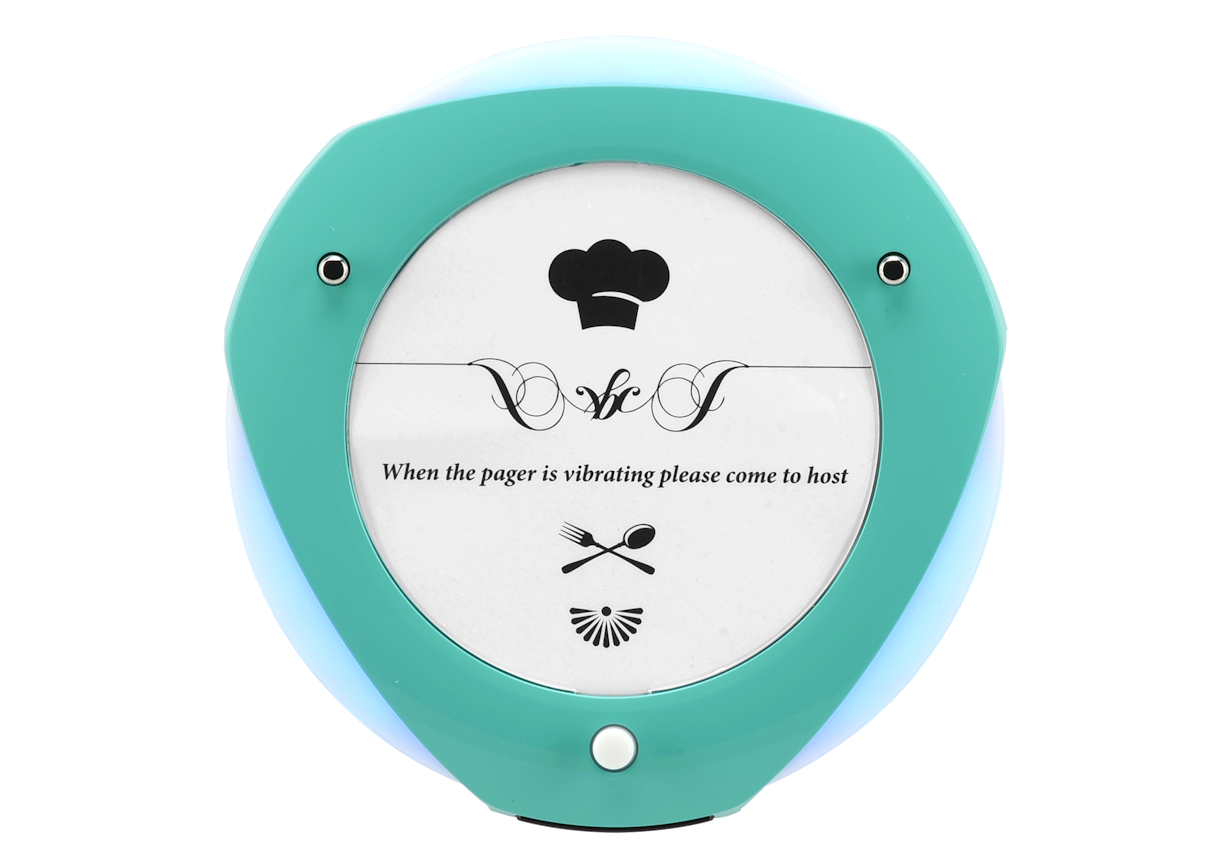

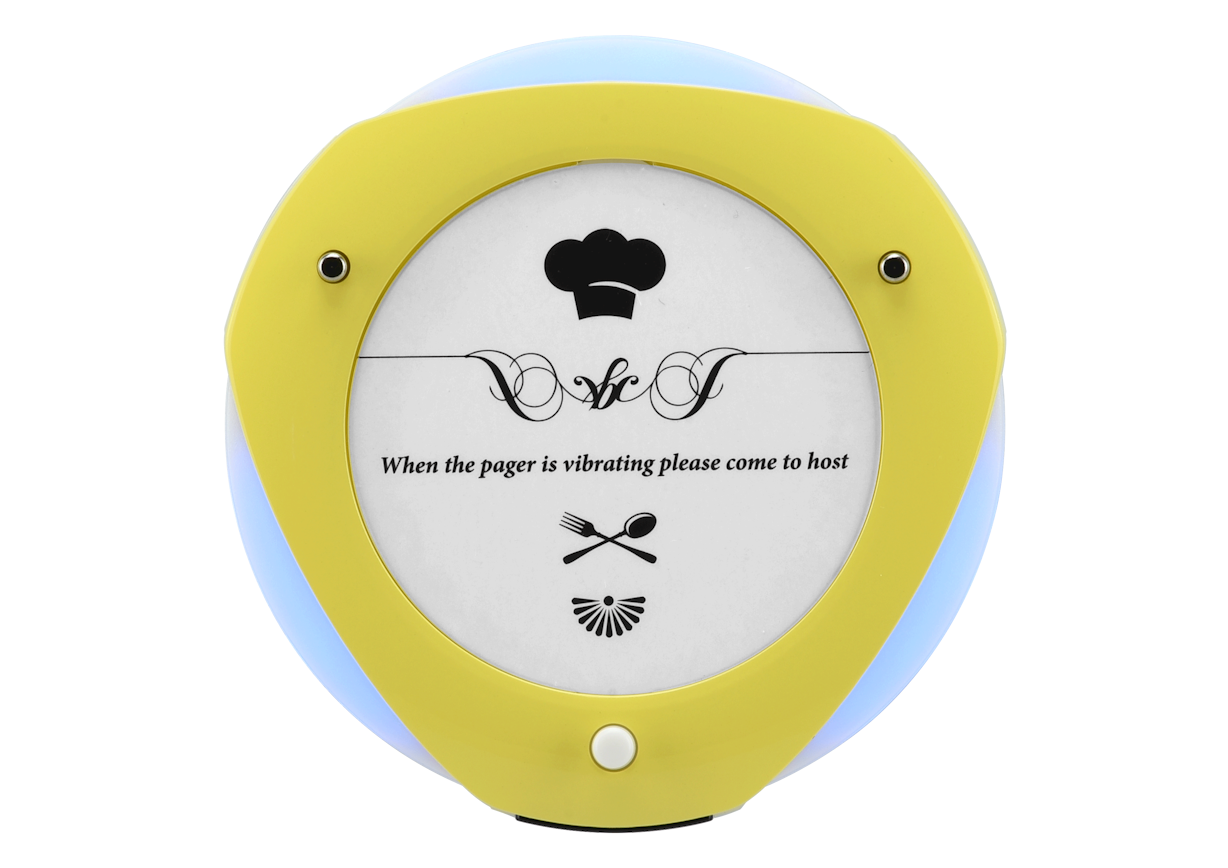

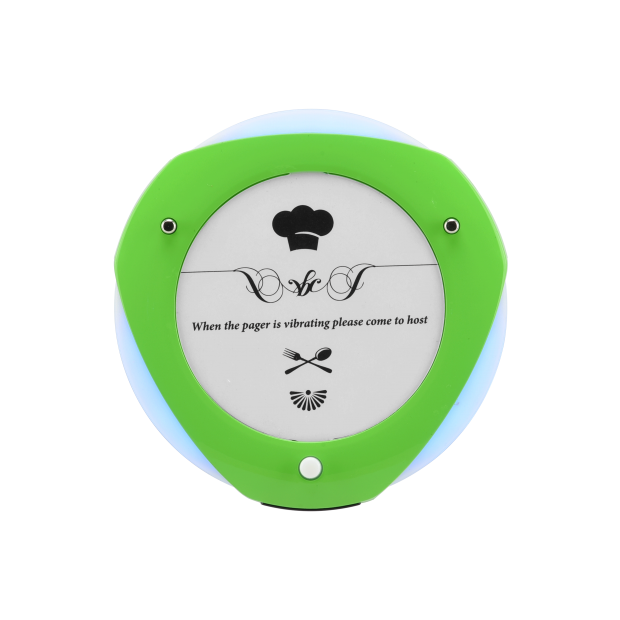

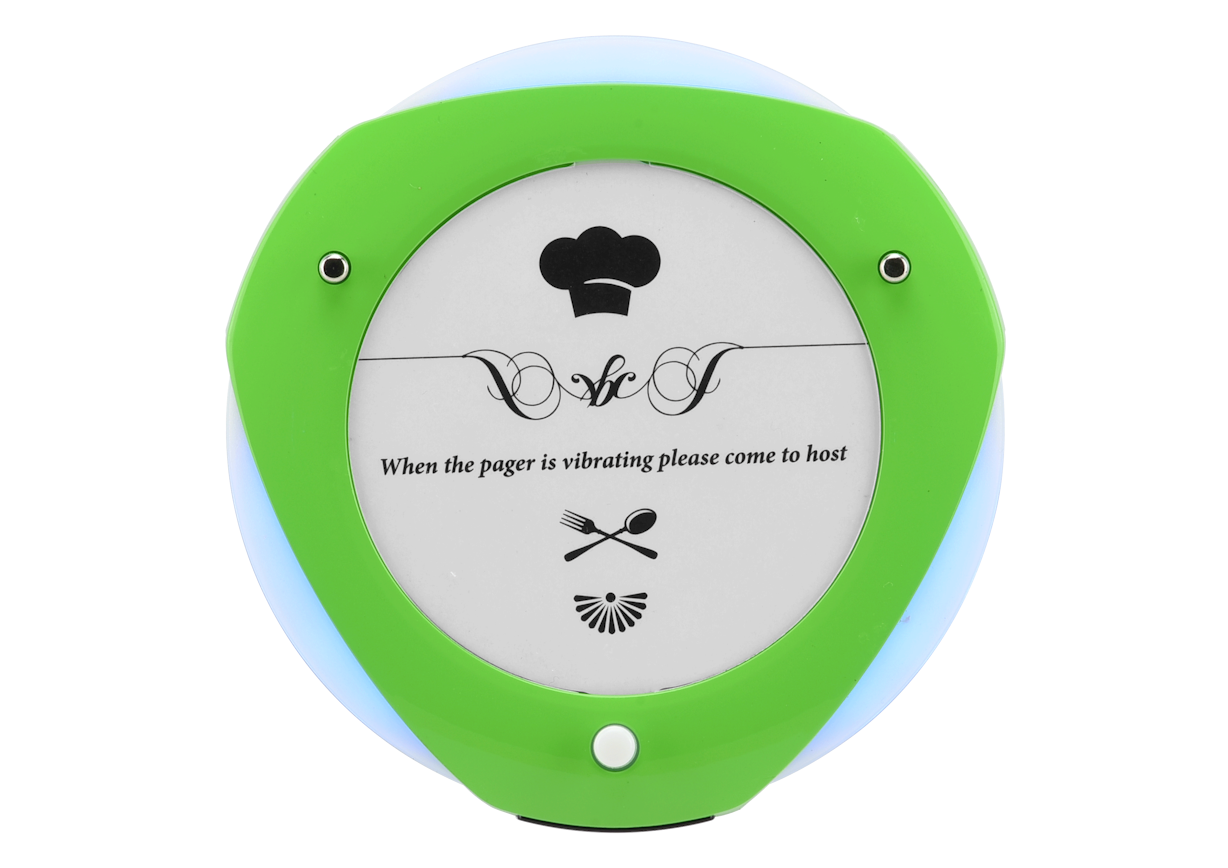

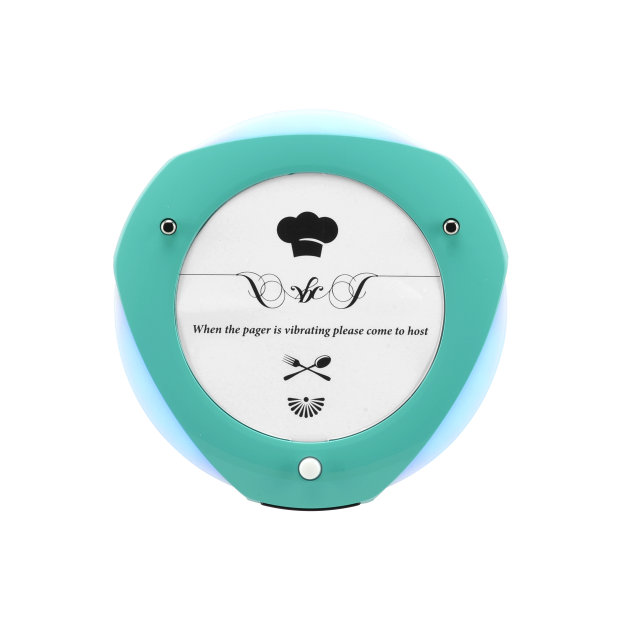

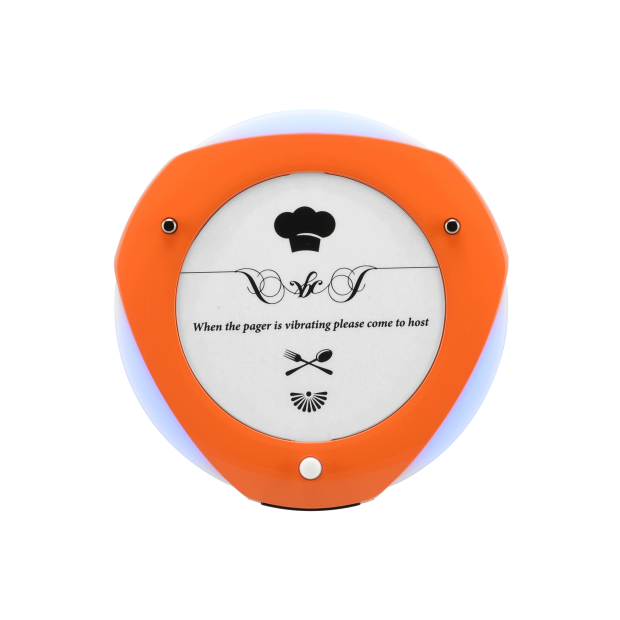

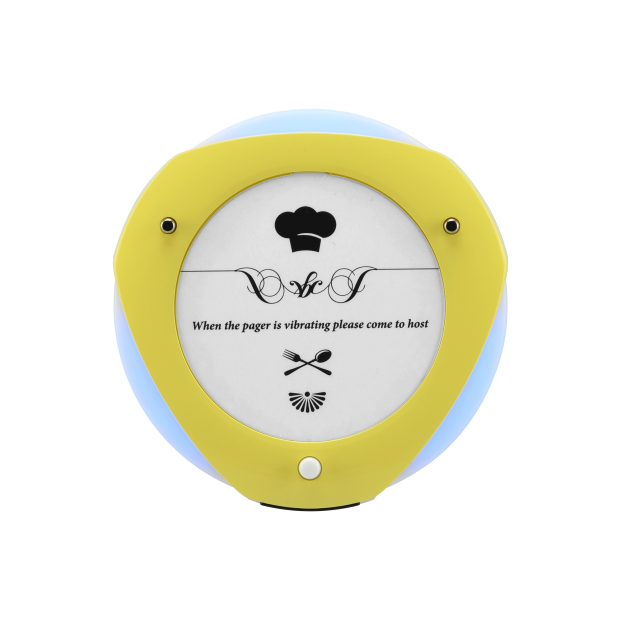

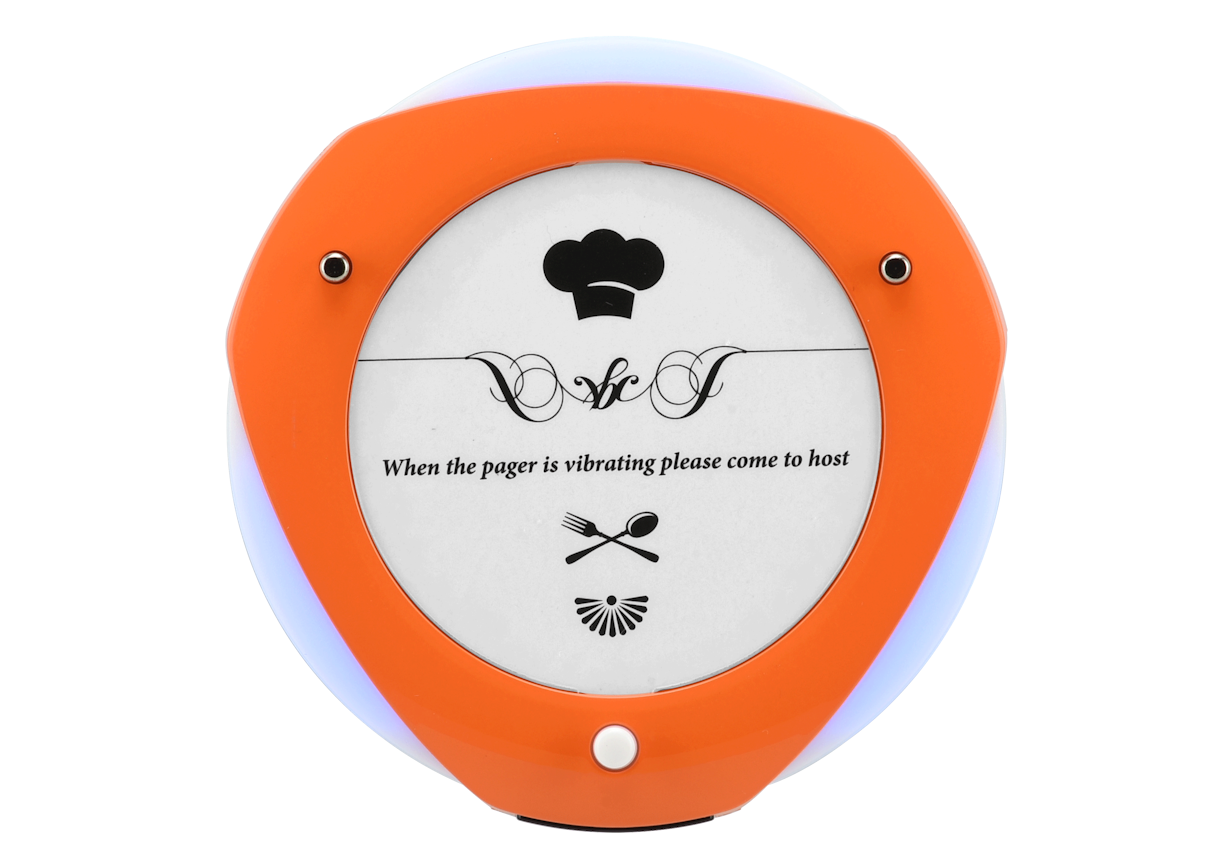

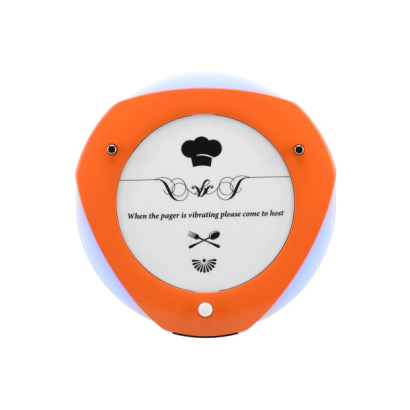

The GP-02Pro paging device comes in four eye-catching macaron colors: Mint Green, Vibrant Orange, Sunshine Yellow, and Classic Tiffany Blue. Combined with a pure white body, the design is modern, fresh, and playful—perfect for complementing various interior styles from sleek minimalism to cozy charm. It enhances your counter’s visual appeal and elevates the first impression for your customers.

Smart, Quiet, and Efficient Service Flow

With this system, staff no longer need to call out orders or search for customers. The ATX-02 transmitter allows instant notification to customers once their meal is ready. The pager alerts with flashing lights, vibration, and sound, so customers can return to the counter effortlessly.

This quiet and efficient method:

  • Reduces noise levels on-site

  • Allows customers to wait comfortably

  • Improves service quality and customer satisfaction

  • Boosts loyalty and encourages repeat visits

The system also enhances workflow, shortens table turnover time, and ultimately increases revenue and operational efficiency.

Why Choose the GPK-02P System?

Product Advantages:

  • Trendy Design: Macaron colors boost brand image and dining atmosphere.

  • Space-saving Charging Base: Stackable design only requires 10 cm of width.

  • User-Friendly: ATX-02 transmitter enables one-touch paging.

  • Multi-Alert Notifications: Flash, vibration, and sound ensure message delivery.

  • Faster Turnover: Speeds up the pick-up process and minimizes waiting time.

  • Improved Management: Real-time usage visibility for better on-site coordination.

  • Flexible Options & Pricing: Tailored to different business needs and budgets.

Key Features:

  • Intuitive Interface: Easy to use with minimal training required.

  • Anti-Theft Alert: Device triggers a warning if taken beyond service range.

  • High-Stability Reception: Reliable communication and robust design.

  • Exclusive System Code: Prevents signal interference from nearby systems.

  • Rechargeable NiMH Battery: Uses a 1.2V AAA NiMH cell for long-term use.

  • RFID Encoding Support: Built-in EEPROM allows dealers to manage device IDs and parameters. New pagers can be added and programmed into the system anytime.

  • Extended Coverage: Transmission range up to 1 km.

ATX-02 Transmitter

  • Frequency: 429–470 MHz

  • Data Rate: 1200 bps

  • Modulation: FSK

  • Power Output: Programmable, 10 mW – 1W

  • Channel Bandwidth: 25KHz

  • Frequency Stability: ±2ppm @ -10~+60°C

  • Output Connector: SMA(F)

  • Sound Volume: 85 dBa @10cm

  • Current: Standby 10mA / Transmit 800mA

  • Power Input: 5V/3A Adapter

  • Size: 120 x 180 x 26.5 mm

  • Certifications: FCC, CE, NCC

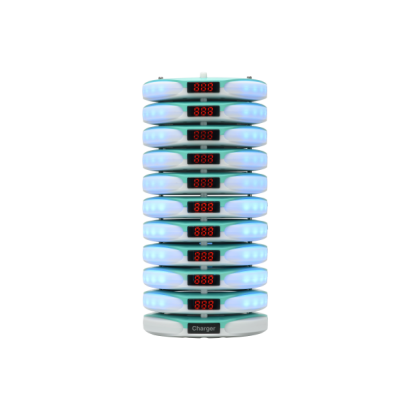

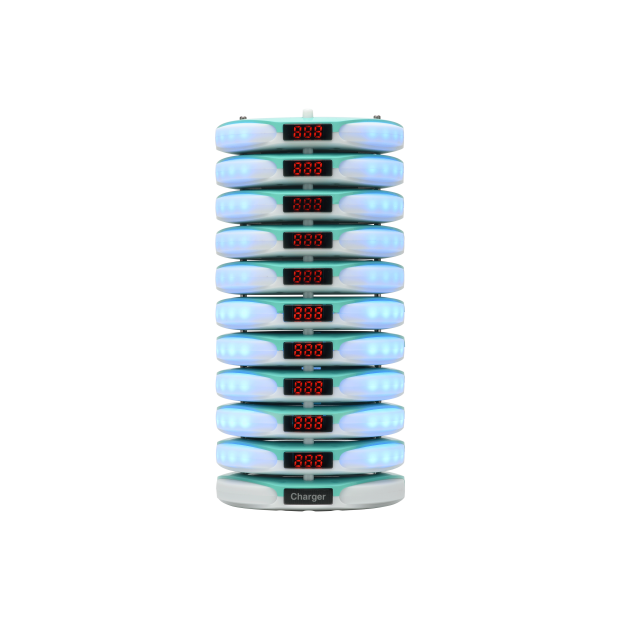

GPC-02 Charging Dock

  • Charging Current: 90–100mA (each pager)

  • Power Input: 5V/2A Adapter

  • Standby Current: 5mA

  • Size: 100 x 100 x 17 mm

  • Certifications: FCC, CE

GP-02Pro Receiver (Pager)

  • Frequency: 429–460 MHz

  • Data Rate: 1200 bps

  • Communication Protocol: ARCT Protocol

  • Modulation: FSK

  • Frequency Bandwidth: 25KHz

  • Sound Volume: 80 dBa @10cm

  • Size: 100 x 100 x 16.5 mm

  • Power: 1.2V AAA NiMH Battery

  • Certifications: FCC, CE, NCC
