GPK-03B Upright Guest Paging System

GPK-03B Upright Guest Paging System

The GPK-03B system consists of the ATX-02B transmitter, GP-03 vertical guest pager, and GPC-03 10-slot charging base. This system is specifically designed for food service environments, including food courts, hybrid restaurants, and outdoor dining areas. It delivers a stable, efficient, and orderly meal pickup notification mechanism, enhancing operational flow and customer satisfaction.
/
/
/
/
/
/
  • ATX-02B-1.png

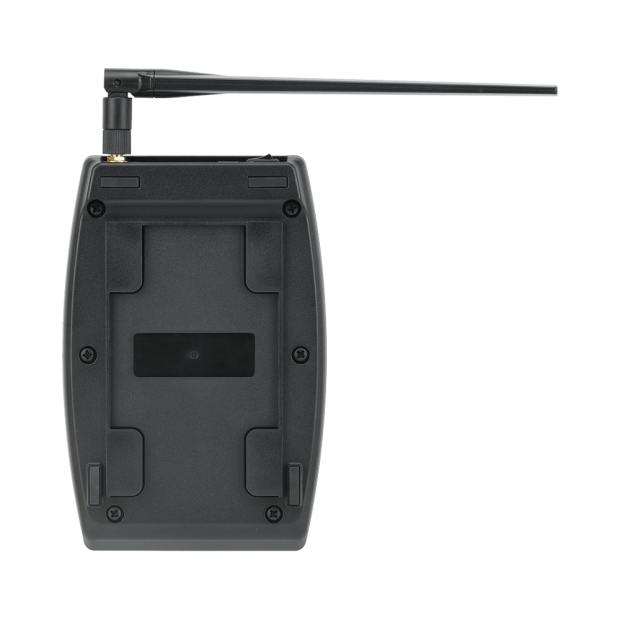

  • ATX-02B-2.png

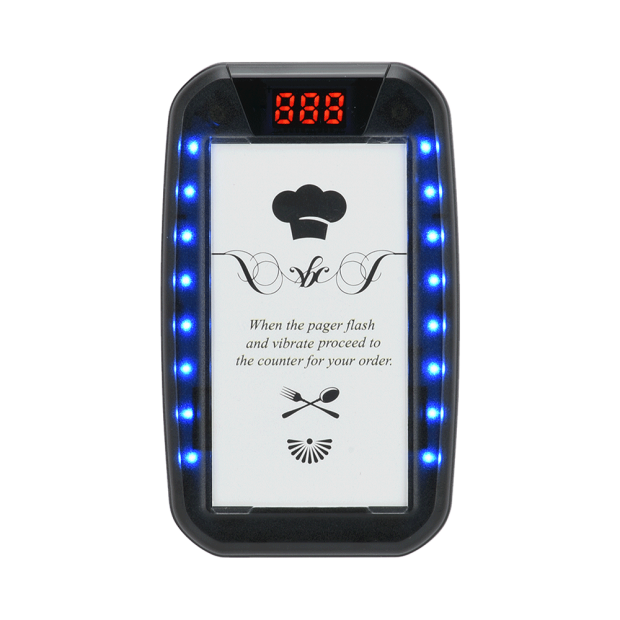

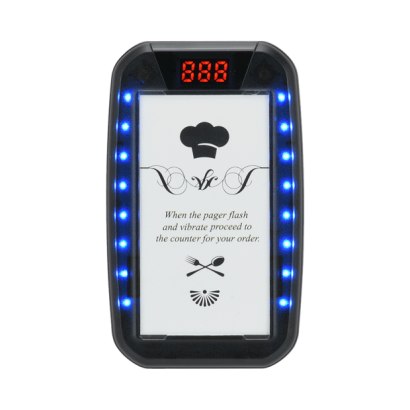

  • GP-03-1.png
  • GP-03-2.png

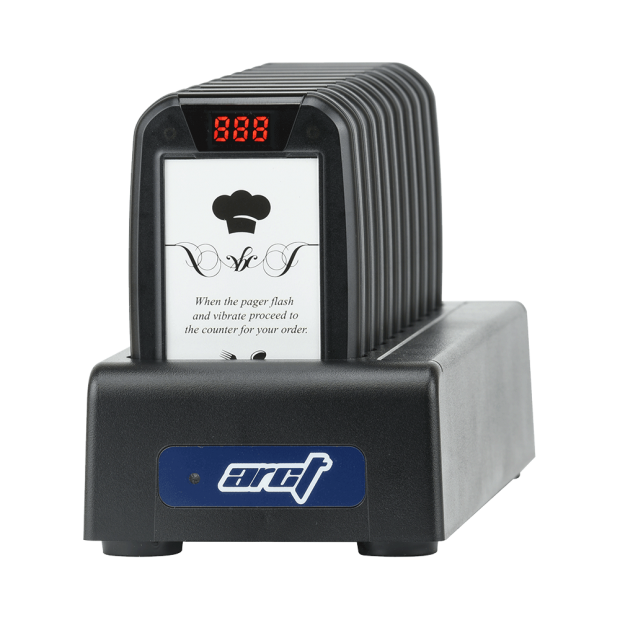

  • GP-03-6.png
  • GP-03-7.png
DETAIL

GPK-03B Guest Paging System | Efficient, Reliable, and Silent Meal Notification Solution

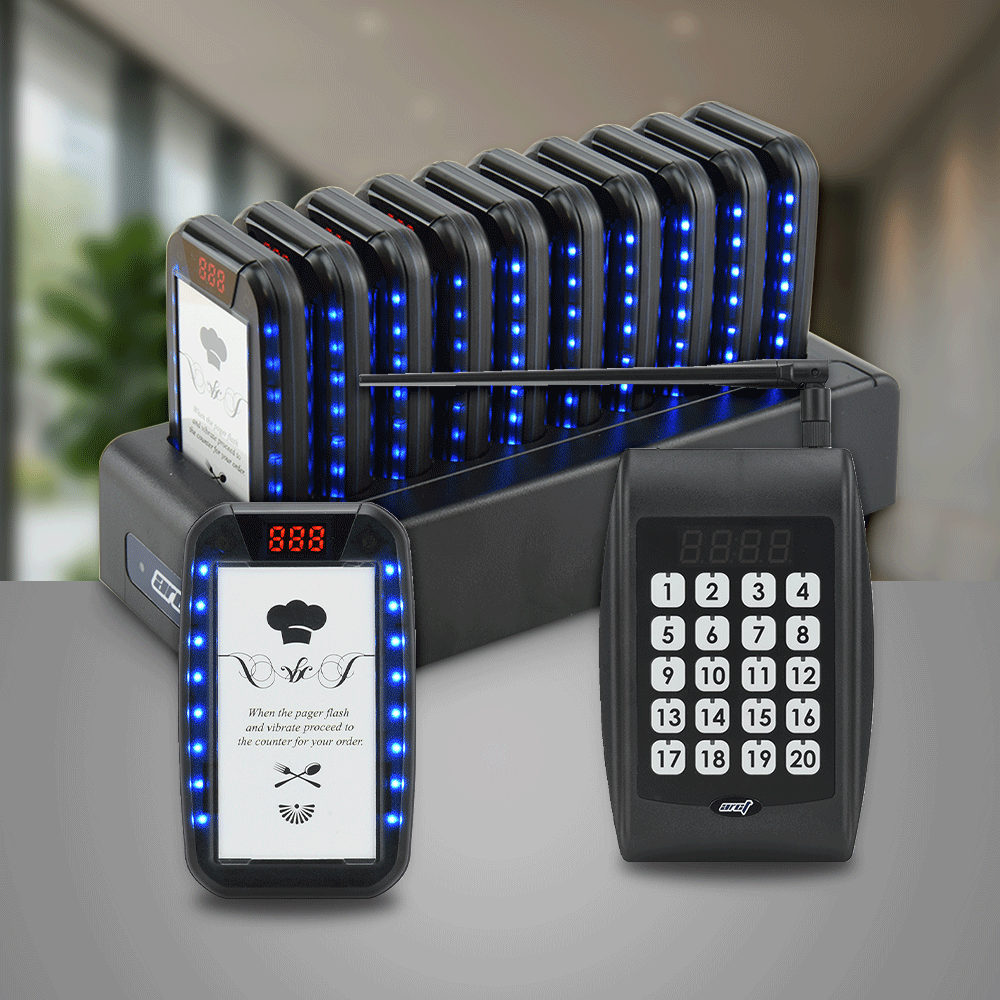

The GPK-03B guest paging system is composed of three core components:

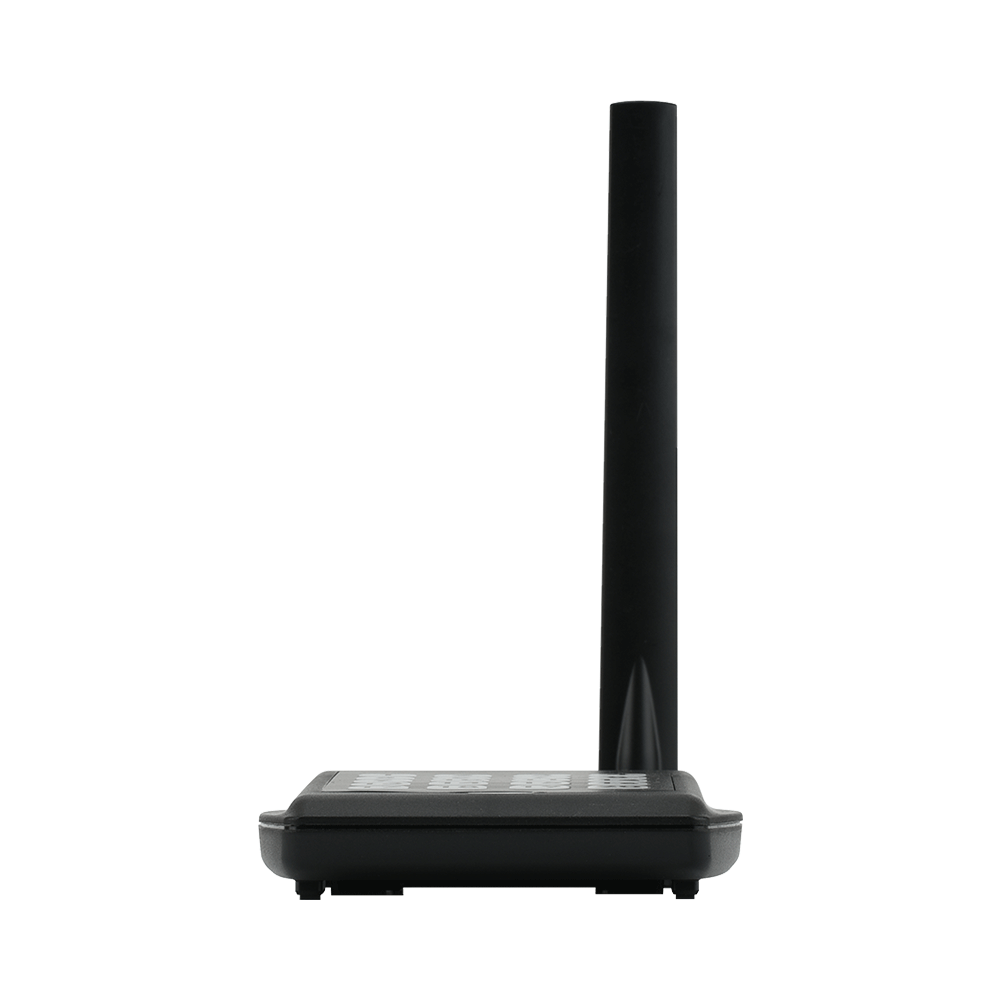

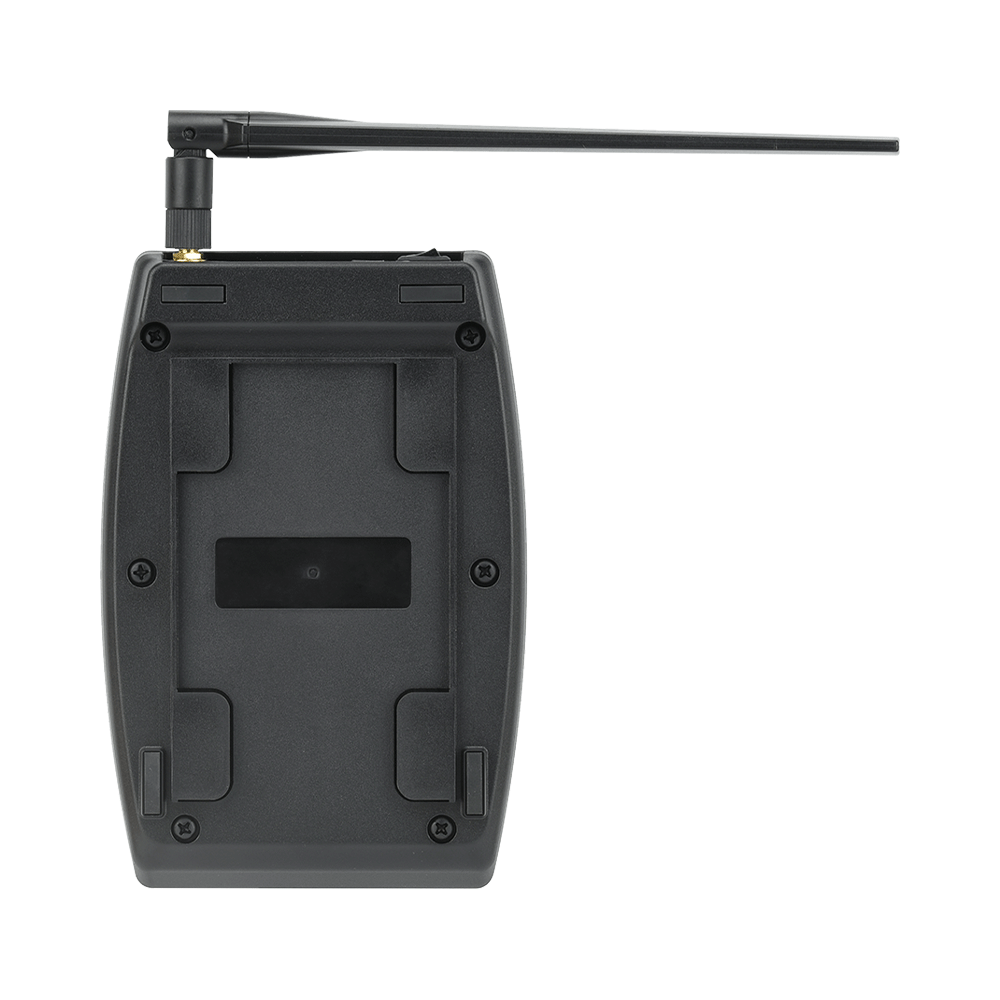

  • ATX-02B Transmitter

  • GP-03 Vertical Guest Pager

  • GPC-03 10-slot Charging Base

Designed specifically for medium to large-scale dining venues—such as food courts, multi-concept restaurants, and outdoor dining areas—this system delivers stable, efficient, and orderly meal notification.

Key Features & Benefits

  • IP67 Waterproof and Dustproof | Ideal for High-Traffic Outdoor Environments
 The GP-03 pager features IP67-rated protection against dust and water ingress, ensuring durable and reliable operation even in harsh conditions.

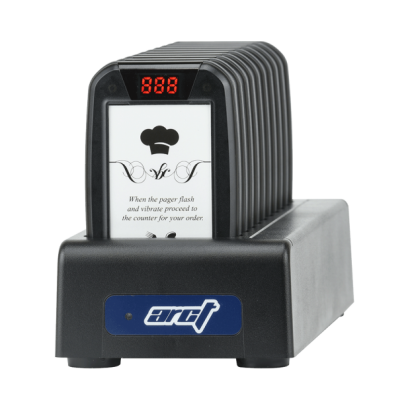

  • Vertical Design | Intuitive Use and Stable Charging
The pagers’ upright design makes them easy to pick up and return. Each unit automatically aligns in its charging slot, preventing poor contact and ensuring smooth daily operations.

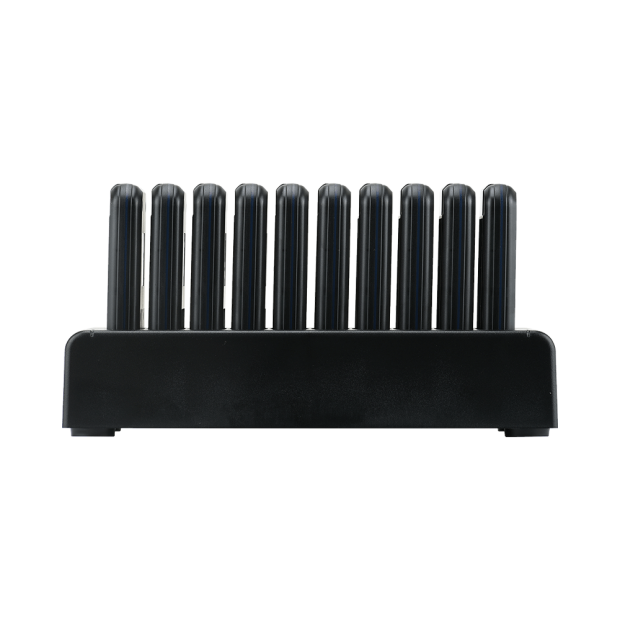

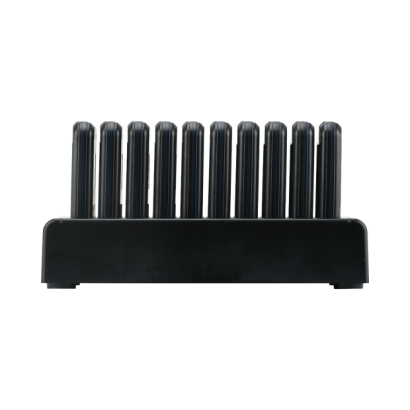

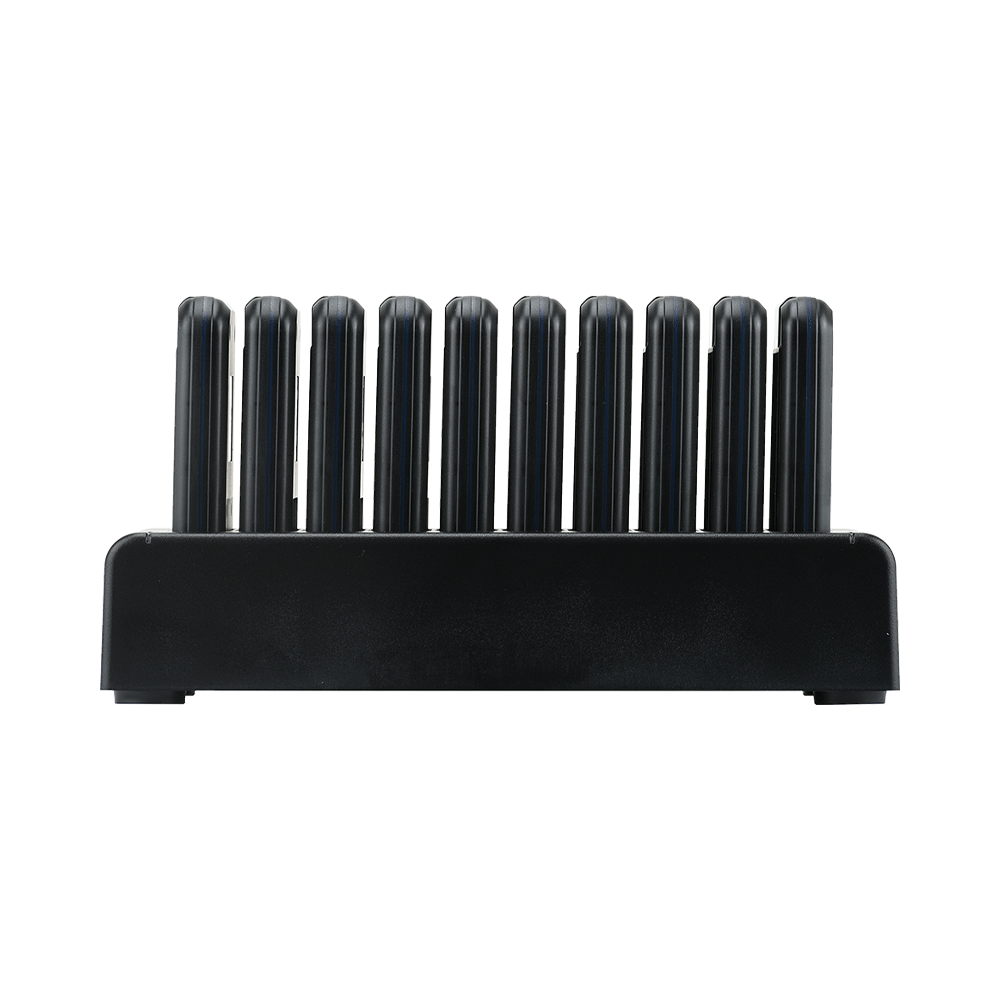

  • 10-Slot Charging Base | Clear Device Management
The GPC-03 charging base clearly displays pager usage status and available slots, allowing staff to manage inventory efficiently without confusion.

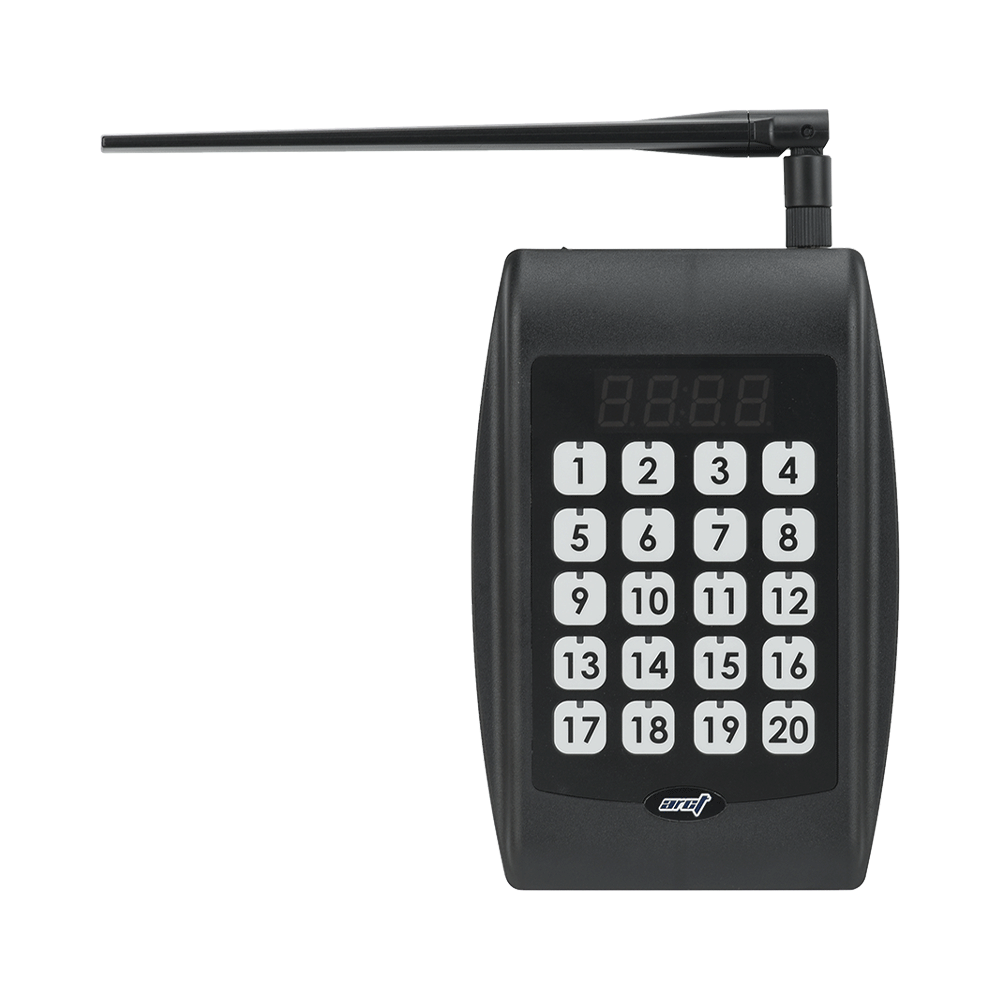

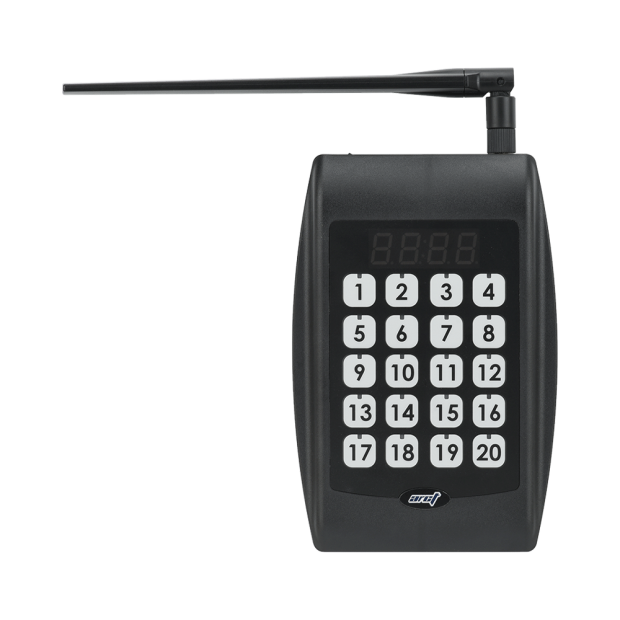

  • ATX-02B Transmitter | One-Touch Calling, User-Friendly Operation
With 20 dedicated buttons—each linked to a specific pager—staff can easily notify customers by simply pressing the corresponding button. Pagers alert customers through simultaneous flashing lights, vibration, and sound.
  • Silent Notification | Maintain a Quiet and Orderly Environment
No need for loud announcements or searching for customers around the counter. The pagers automatically deliver the alert, improving service efficiency while creating a comfortable dining atmosphere.
  • Increased Table Turnover | Enhanced Customer Experience

Customers can relax at their seats without queuing or crowding. Restaurants benefit from faster meal delivery cycles, boosting turnover rates, revenue, and customer retention.

ARCT Solution Value

  • Multiple pager styles available for flexible budget and space planning

  • Suitable for multi-floor, large-area, outdoor dining, and fast-food chain venues

  • Modular design for easy maintenance and upgrades

  • Supports custom call codes and optimized customer flow management

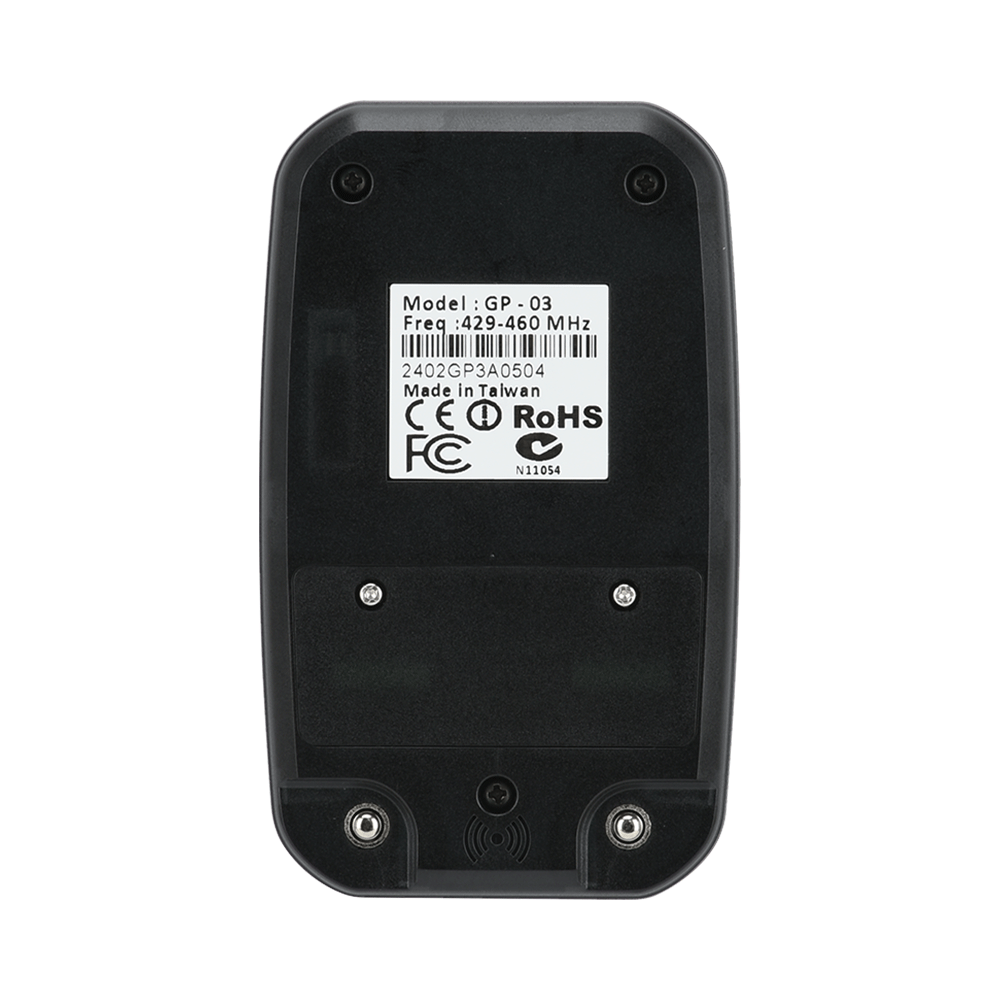

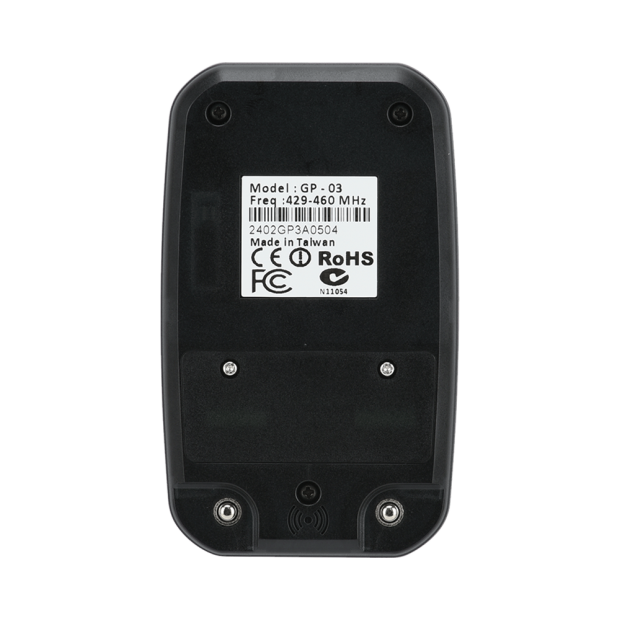

GP-03 Pager Specifications

Feature Specification
Model GP-03
Frequency 429~460 MHz
Data Rate 1200 bps
Modulation FSK
Channel Width 25 kHz
Sound Level 75 dBa @ 10 cm
Dimensions 75(L) x 56(W) x 19(H) mm
Power Input 1.2V Ni-MH AAA battery
Certifications FCC, CE

ATX-02B Transmitter Specifications

Feature Specification
Model ATX-02B
Frequency 429~460 MHz
Transmit Power 0.5 Watt
Protocol ARCT Protocol
Data Rate 1200 bps
Modulation FSK
Modulation Width ±4.5 kHz
Channel Bandwidth 25 kHz
Harmonic Suppression Less than -25 dBm
Frequency Stability ±2 ppm (-10 to +60 °C)
Connector SMA (Female)
Sound Level 85 dBa @ 10 cm
Current Consumption Standby: 10 mA; Transmit: 500 mA
Power Input 5V/2A Adapter
Dimensions 120 x 180 x 26.5 mm
Certifications FCC, CE, NCC
