  1. Wireless Service Button System
SPS-01 Service Paging System

SPS-01 Service Paging System

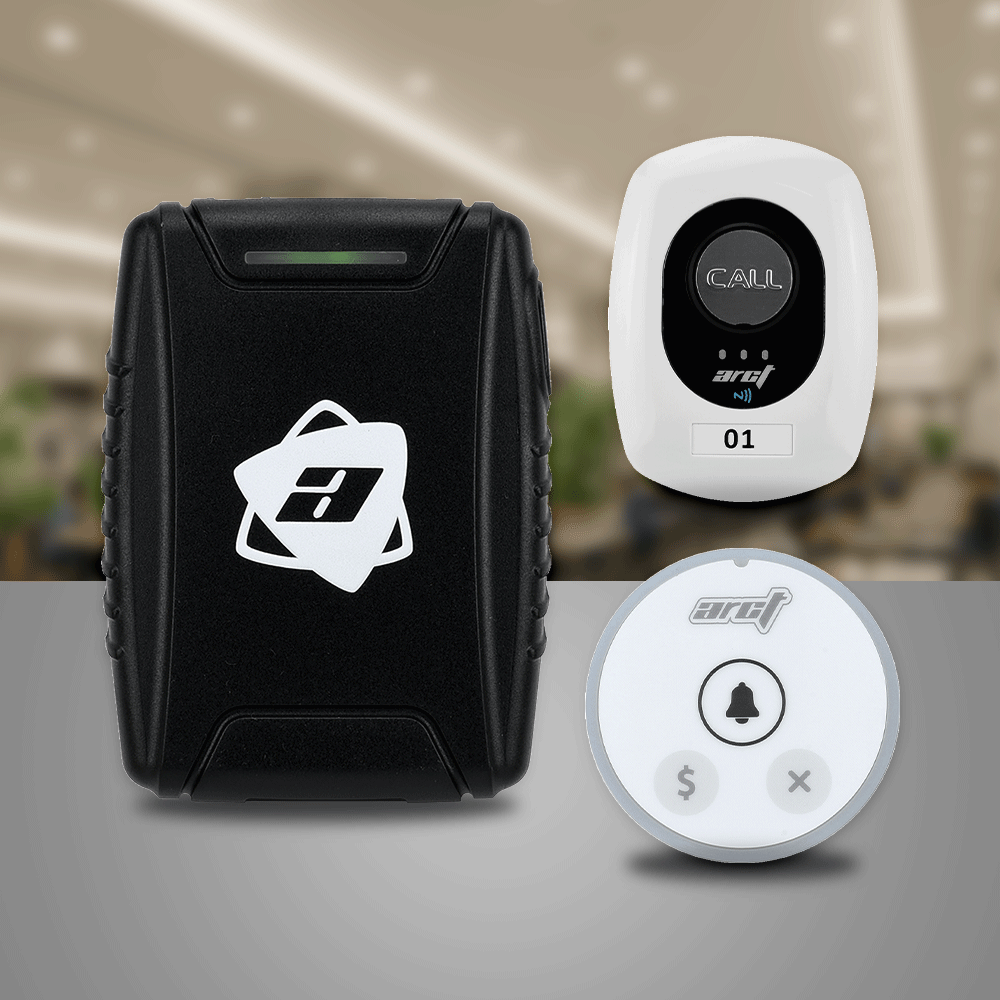

SPS-01 Basic Wireless Call System
The SPS-01 is a basic wireless call system specifically designed to enhance customer service quality. It consists of the PT-01 or PT-03 wireless call buttons paired with the SP-01Pro receiver. When a customer presses the call button, a signal is instantly transmitted to the receiver, notifying staff to provide prompt assistance.

This system significantly improves the customer experience in restaurants by eliminating the need for loud calls or actively searching for staff. It creates a quieter, more comfortable, and highly efficient dining environment.
/
/
/
/
/
/

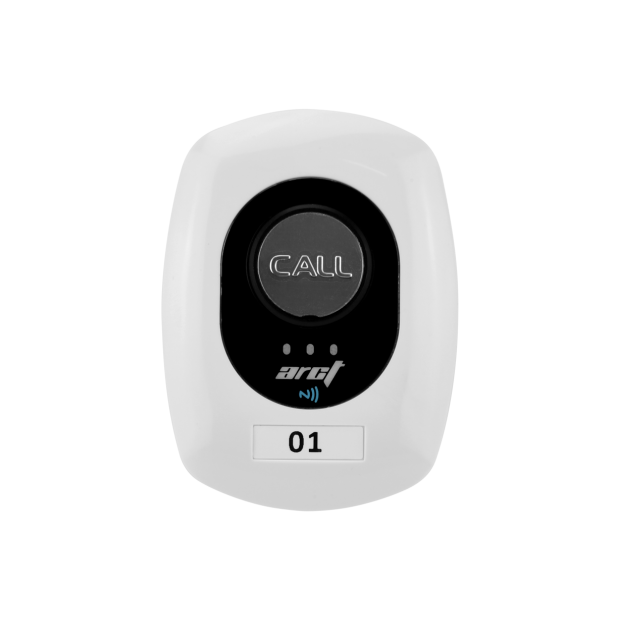

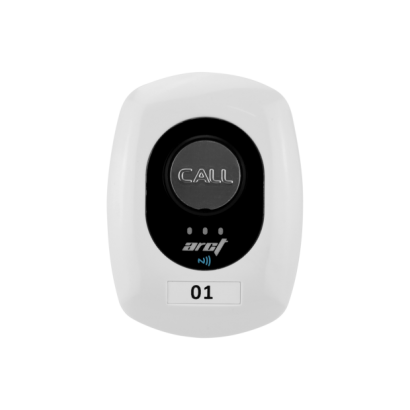

  • PT-01-1-1M.png

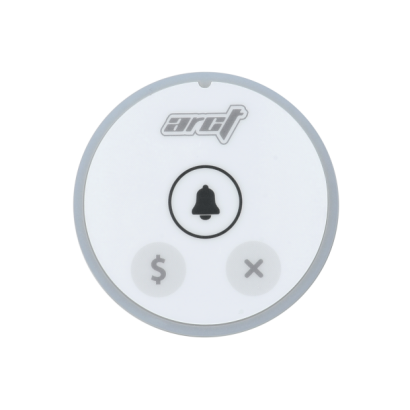

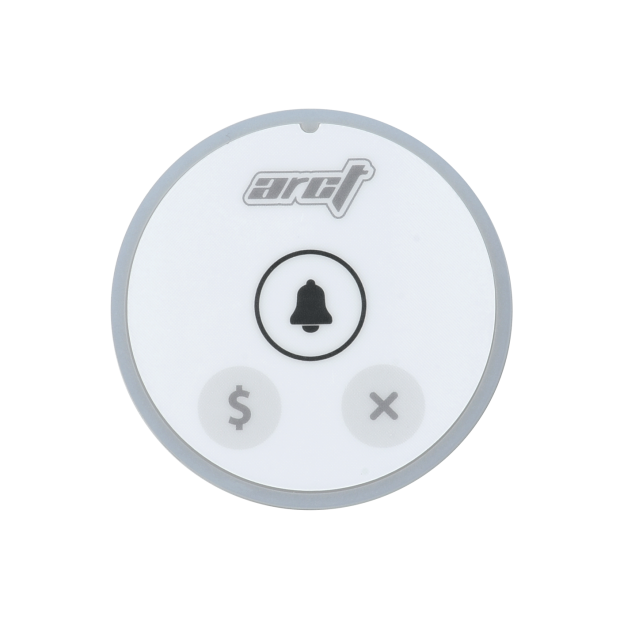

  • PT-03-1-1M.png

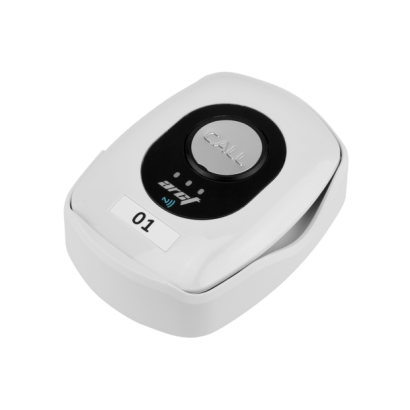

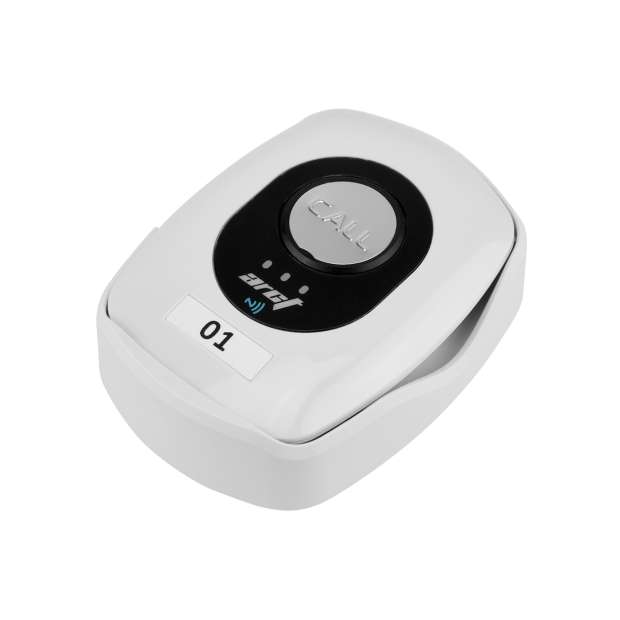

  • PT-01-10-1M.png

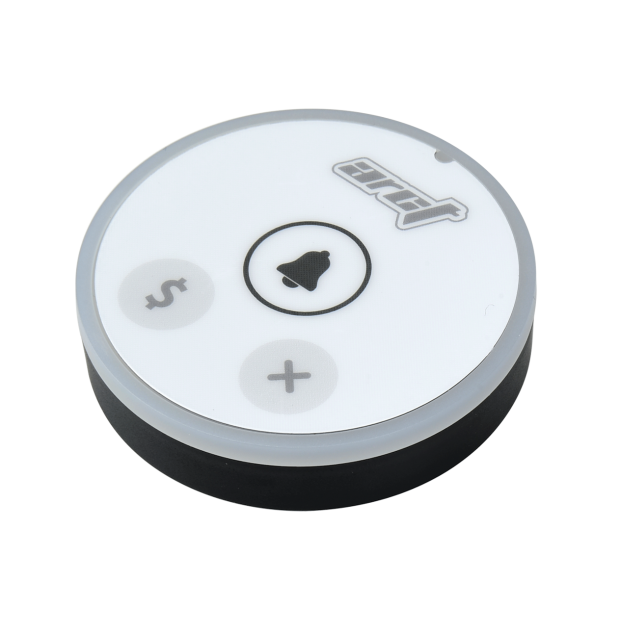

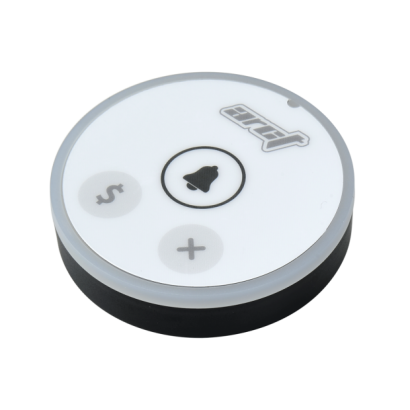

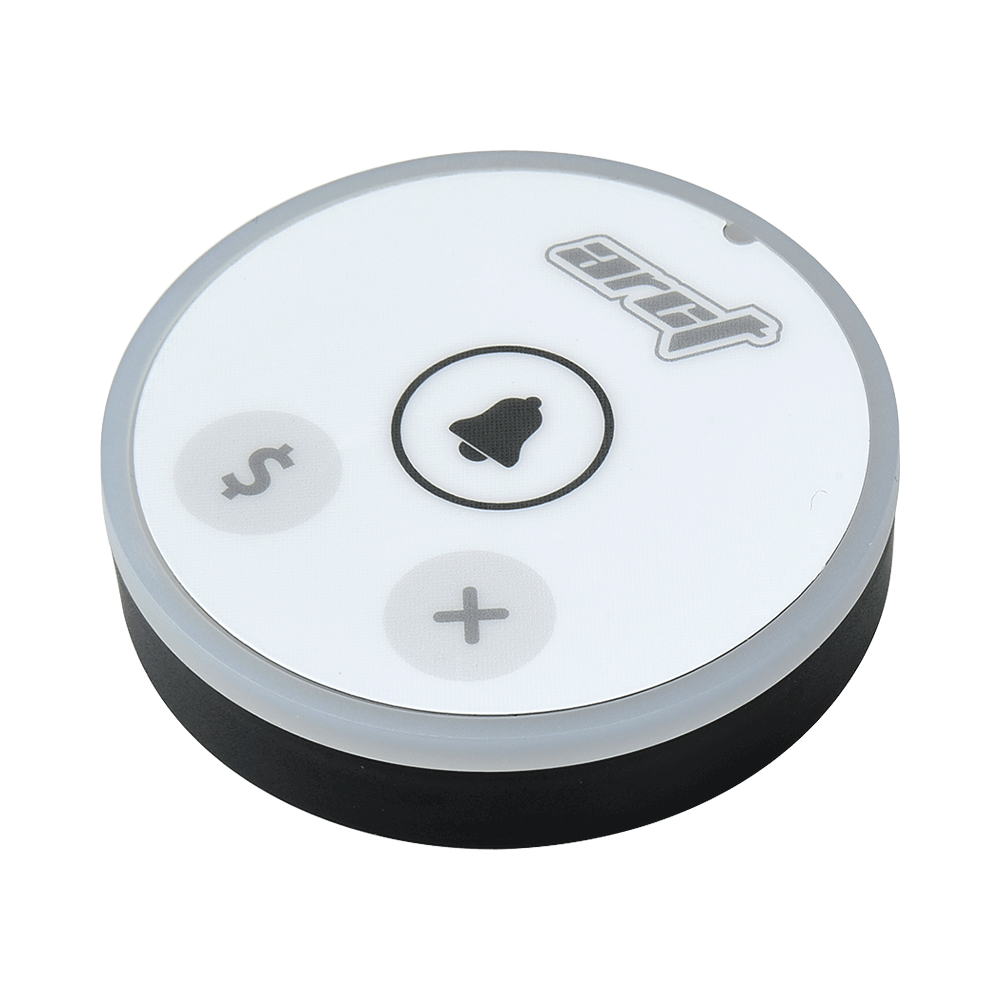

  • PT-03-4-1M.png

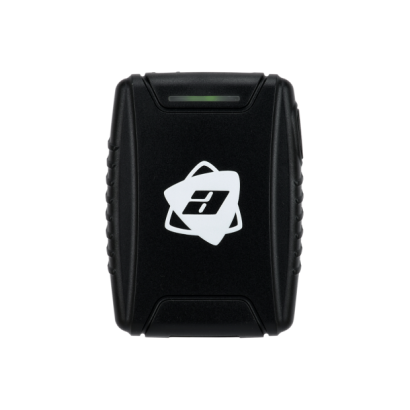

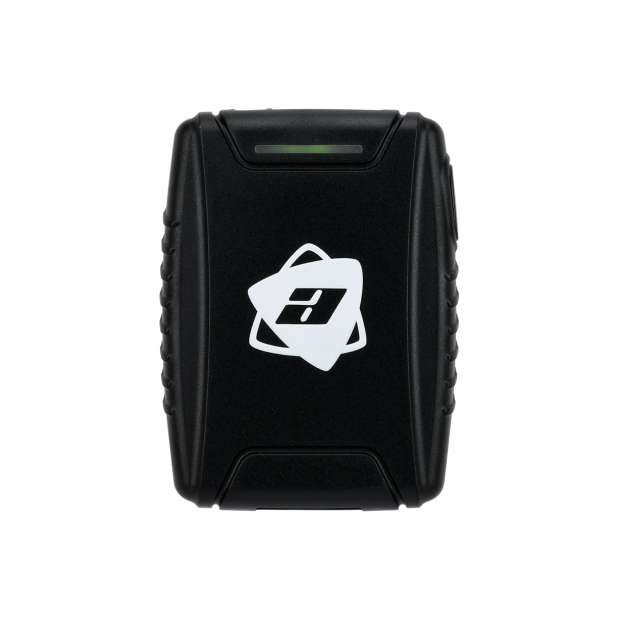

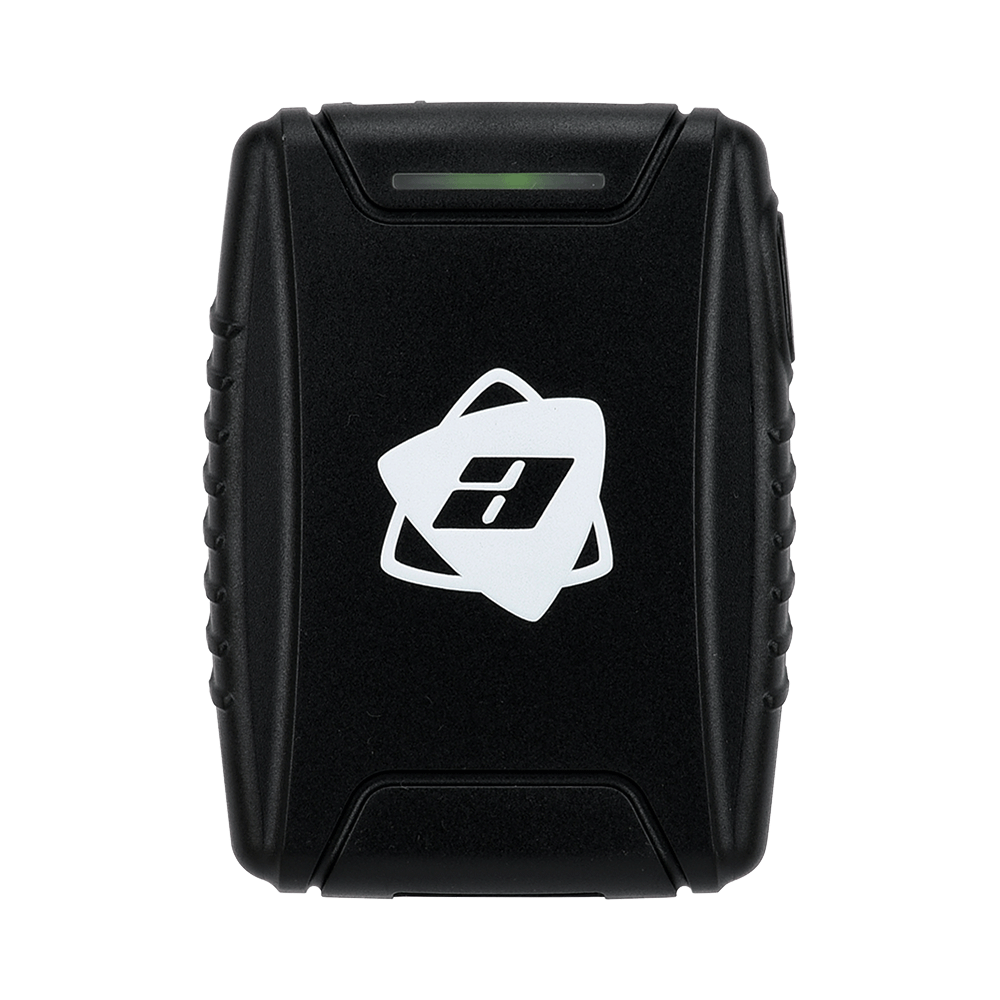

  • SP-01PRO-4-1M.png

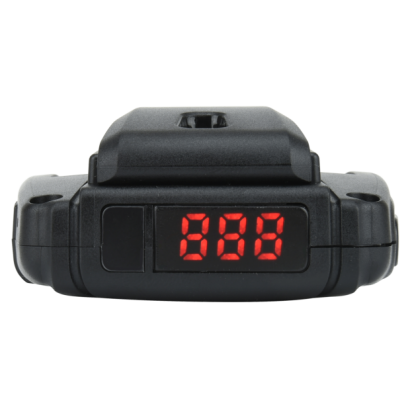

  • SP-01PRO-9-1M.png
DETAIL

SPS-01 Wireless Service Paging System

The SPS-01 is a basic wireless call system specifically designed to enhance customer service quality. It consists of the PT-01 or PT-03 wireless service buttons, paired with the SP-01Pro receiver. When a customer presses the button, the system instantly transmits a signal to the receiver, notifying staff to respond promptly.

By eliminating the need for customers to raise their voices or actively seek assistance, this system significantly improves the overall dining experience—creating a quieter, more comfortable, and more efficient environment.

Ideal Applications

  • Restaurants

  • Cafés

  • Food courts

  • VIP rooms

  • Lounges

  • Any location requiring prompt service response

Key Benefits

  • Instant wireless call alerts improve service response time

  • Streamlined operations reduce customer wait times and staff workload

  • Professional service experience increases customer satisfaction

  • Quiet environment helps maintain an orderly and comfortable atmosphere

Features

  • Wireless communication – No external wiring or power source required

  • Easy installation – Flexible placement in any environment

  • User-friendly design – Intuitive button interface

  • Single system ID – Prevents interference from nearby systems

  • NFC configuration support – Configure via NFC-enabled smartphone

  • Extended battery life – Over 1 year of usage

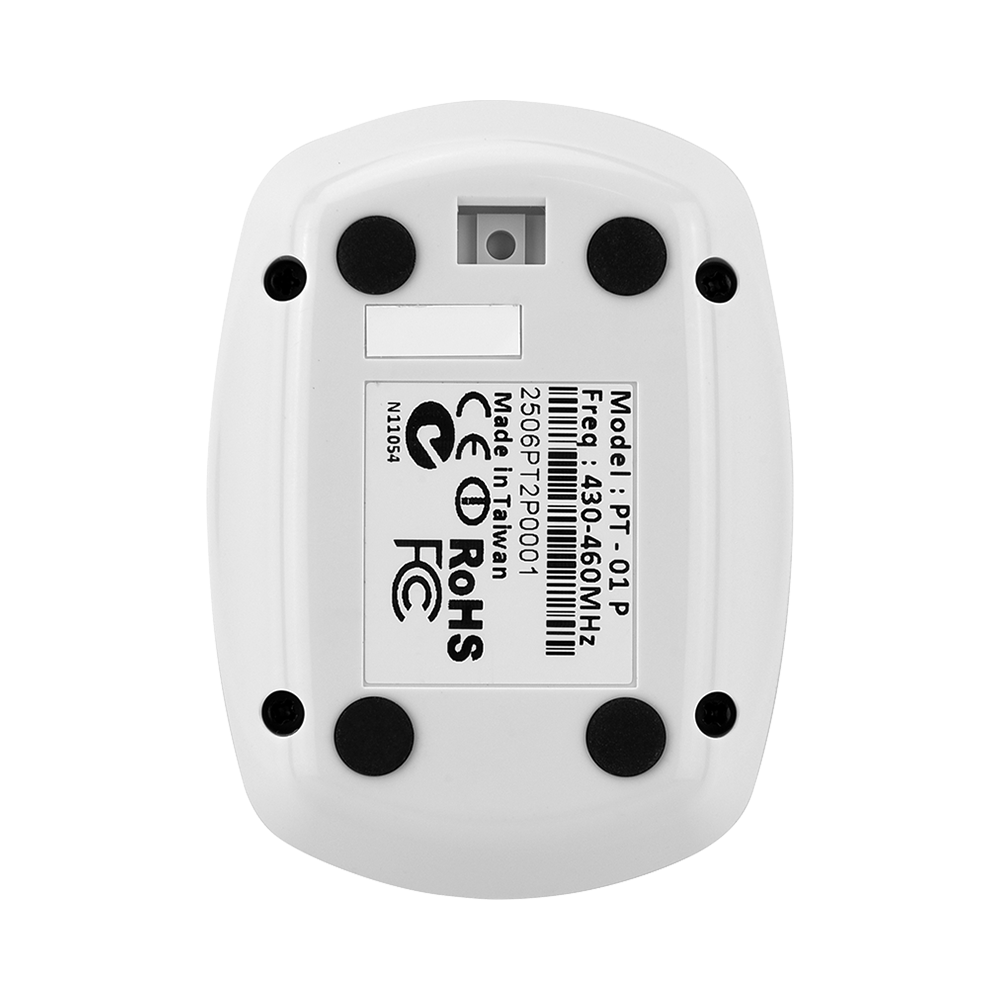

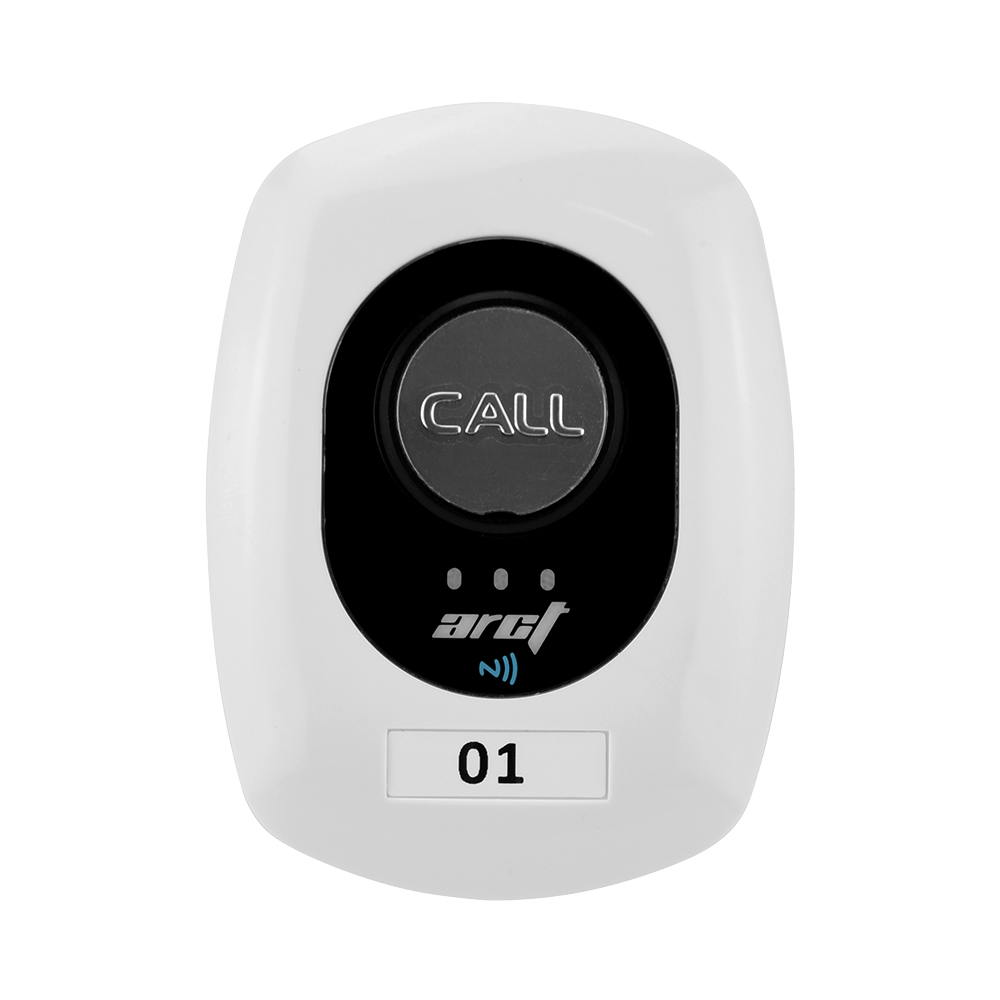

PT-01 Specifications

  • Frequency: 429–460 MHz

  • Data Rate: 1200 bps

  • Protocol: ARCT Protocol & POCSAG

  • Modulation: FSK

  • Bandwidth: 25K

  • Output Power: 20 dBm (100 mW)

  • Range: 100 meters

  • Frequency Stability: ±10 ppm (@ -10°C ~ +60°C)

  • Dimensions: 75 x 55 x 18.5 mm

  • Weight: 60 g

  • Power Supply: 2 × AAA alkaline batteries

  • Battery Life: Up to 2 years

  • Certifications: FCC, CE, NCC

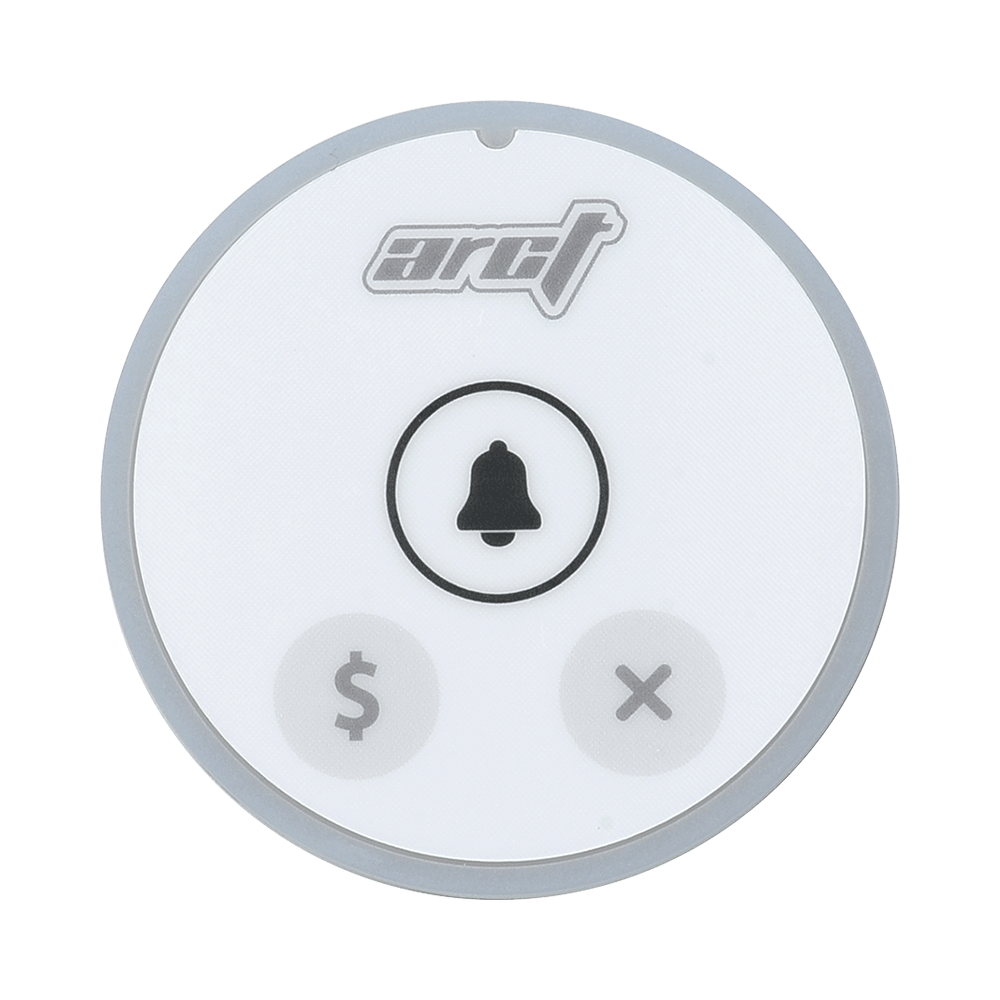

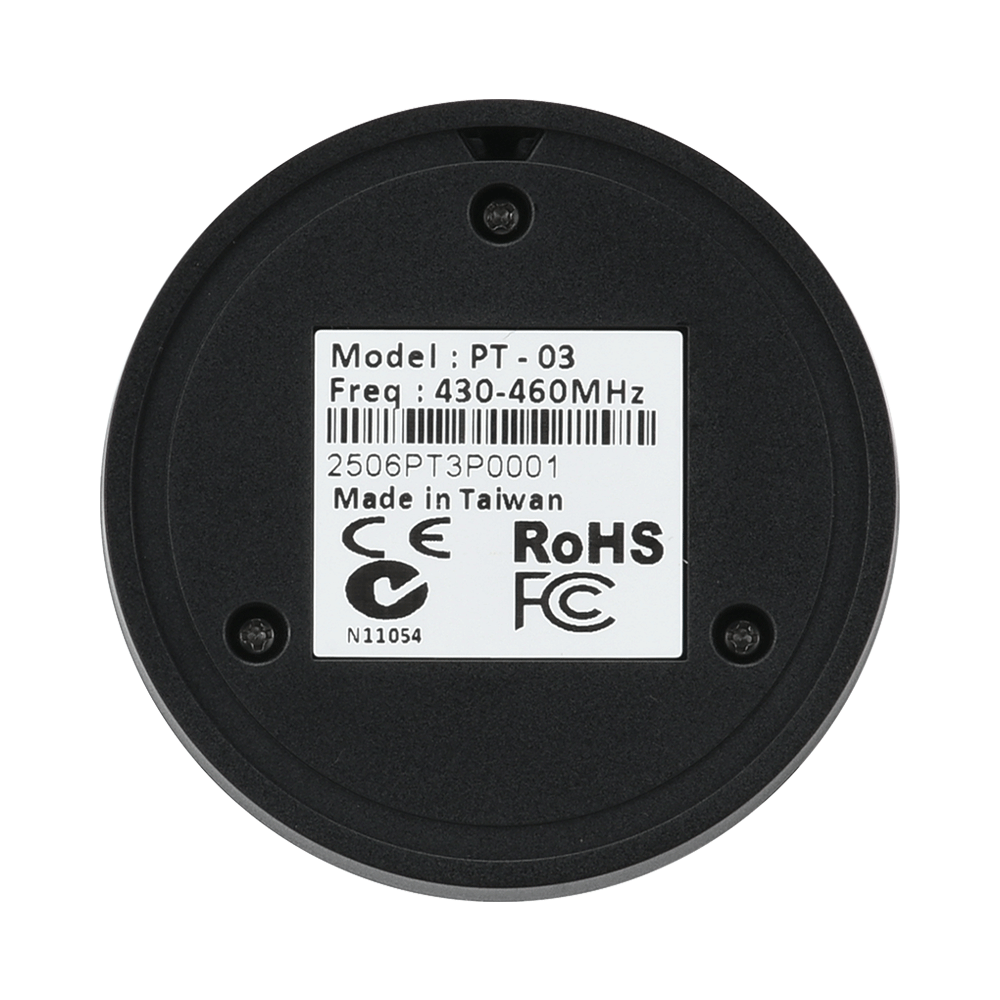

PT-03 Specifications

  • Frequency: 429–460 MHz

  • Data Rate: 1200 bps

  • Protocol: ARCT Protocol & POCSAG

  • Modulation: FSK

  • Bandwidth: 25K

  • Output Power: 10 dBm (10 mW)

  • Range: 50 meters

  • Frequency Stability: ±10 ppm (@ -10°C ~ +60°C)

  • Dimensions: 75 x 55 x 18.5 mm

  • Weight: 30 g

  • Power Supply: CR2450 3V lithium battery

  • Battery Life: Up to 2 years

  • Certifications: FCC, CE, NCC

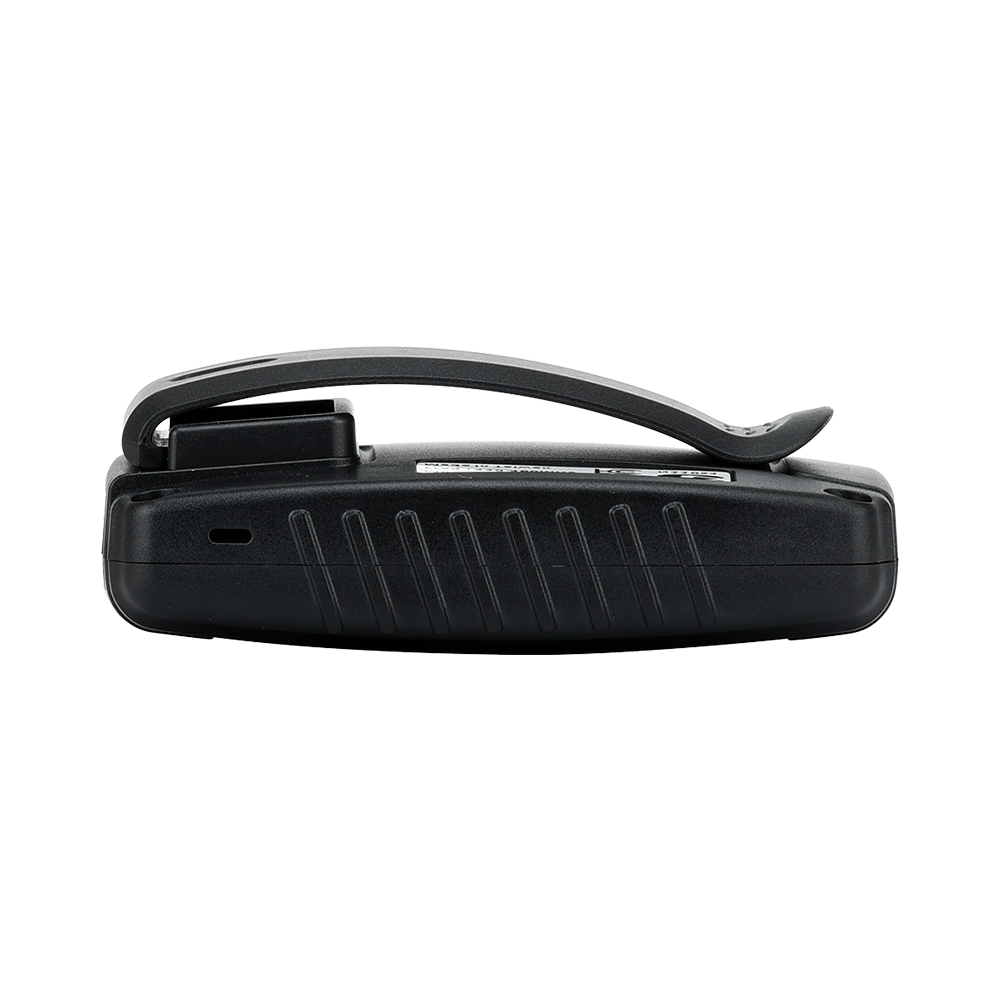

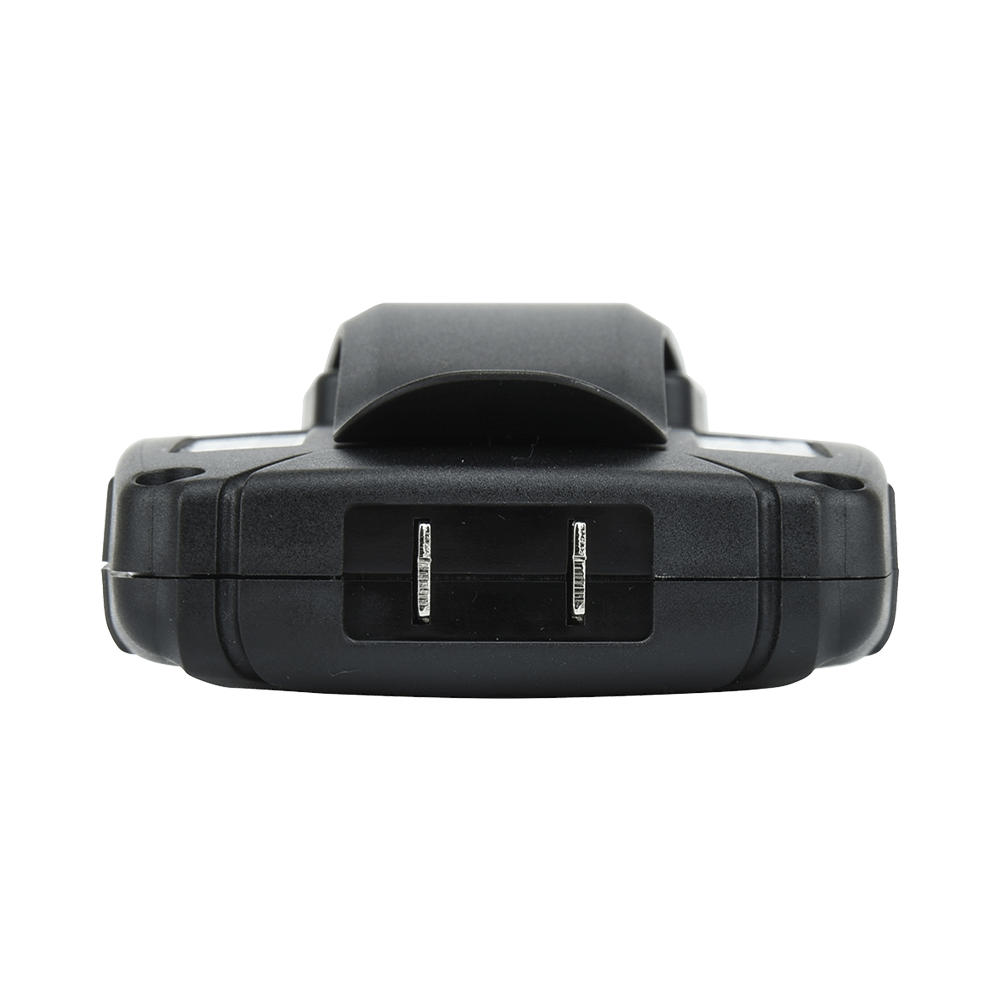

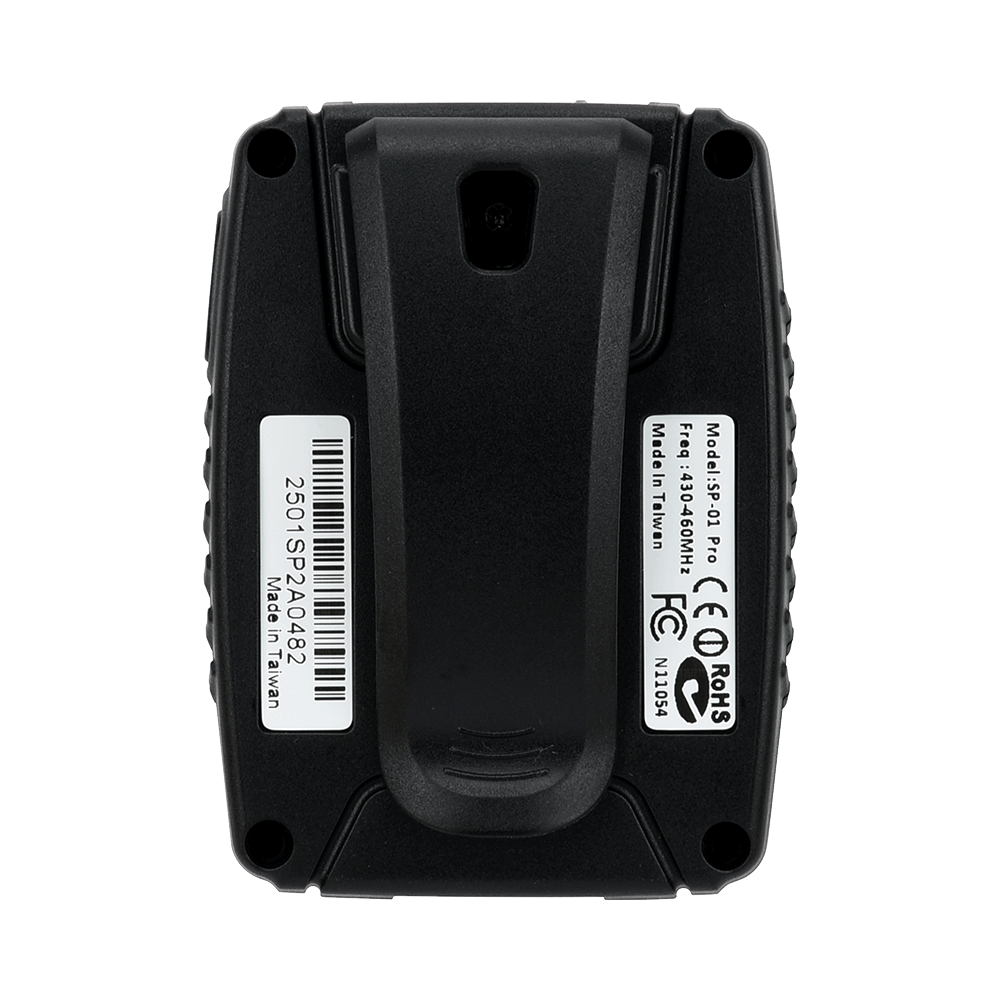

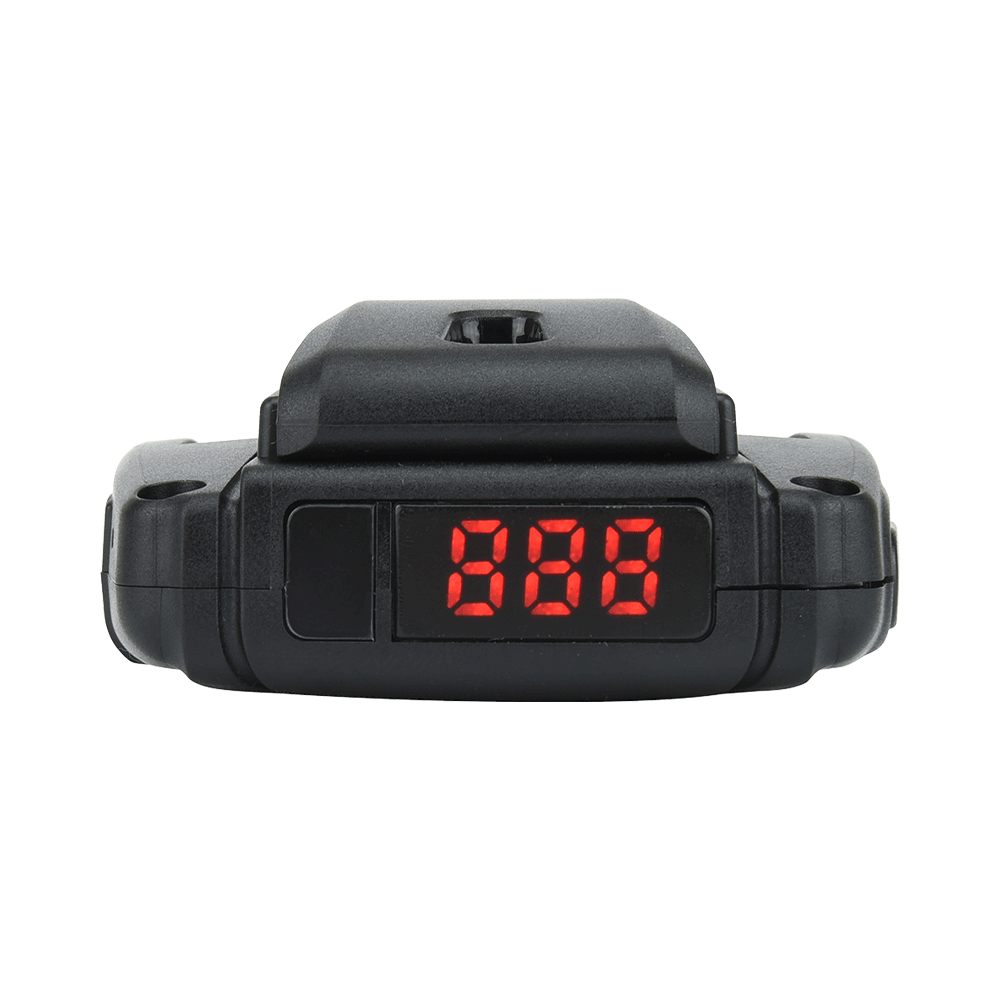

SP-01Pro Specifications

  • Frequency: 429–460 MHz

  • Data Rate: 1200 bps

  • Protocol: ARCT Protocol

  • Modulation: FSK

  • Bandwidth: 25K

  • Volume Output: 80 dBa

  • Dimensions: 76 x 56 x 19 mm

  • Power Supply: 1 × AAA Ni-MH rechargeable battery (1.2V)

  • Standby Time: 3 days (fully charged)

  • Certifications: FCC, CE, NCC
