SPS-01 Alpha Wireless Service Call System

SPS-01 Alpha Wireless Service Call System

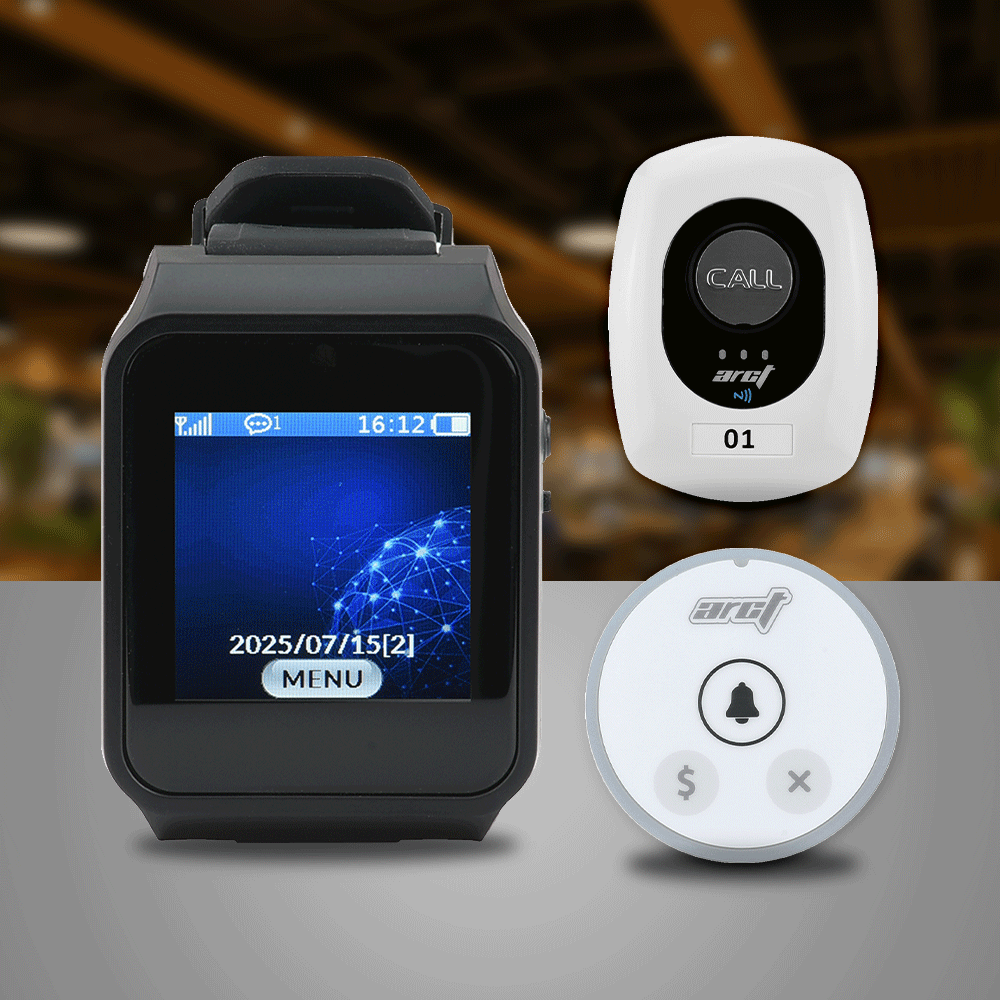

SPS-01 Alpha is a wireless call system designed for real-time communication and service efficiency. The system consists of the PT-01 or PT-03 wireless service buttons and the P3 watch-style text receiver. When a customer presses the button, a message is instantly sent to the staff’s wearable receiver, clearly showing the source and service request to ensure fast and accurate response.
  • P3Watch-7-1M.png
  • P3Watch-4-1M.png

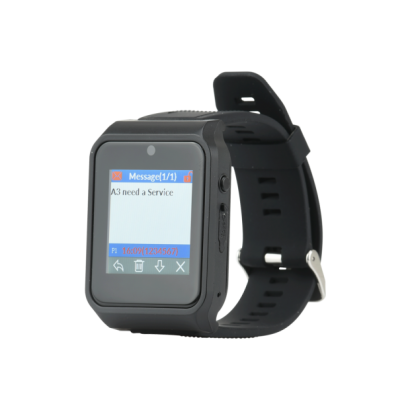

  • P3Watch-5-1M.png

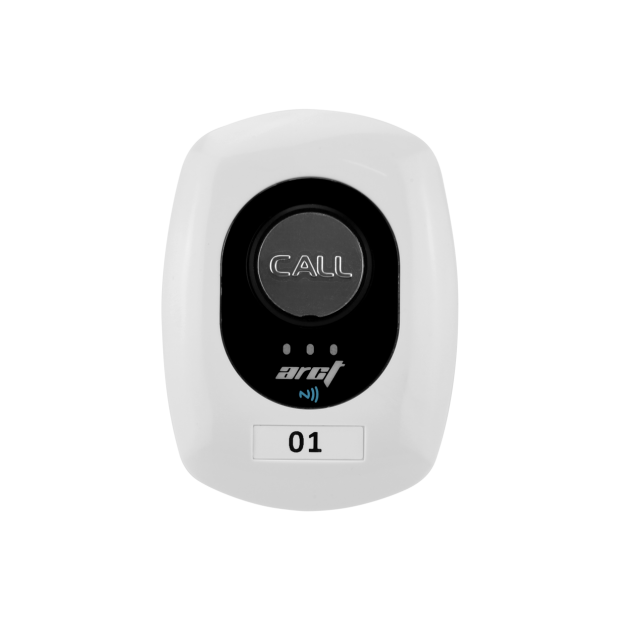

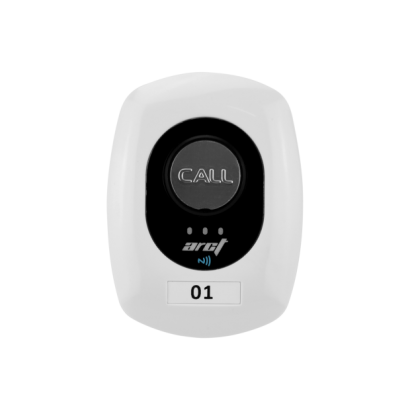

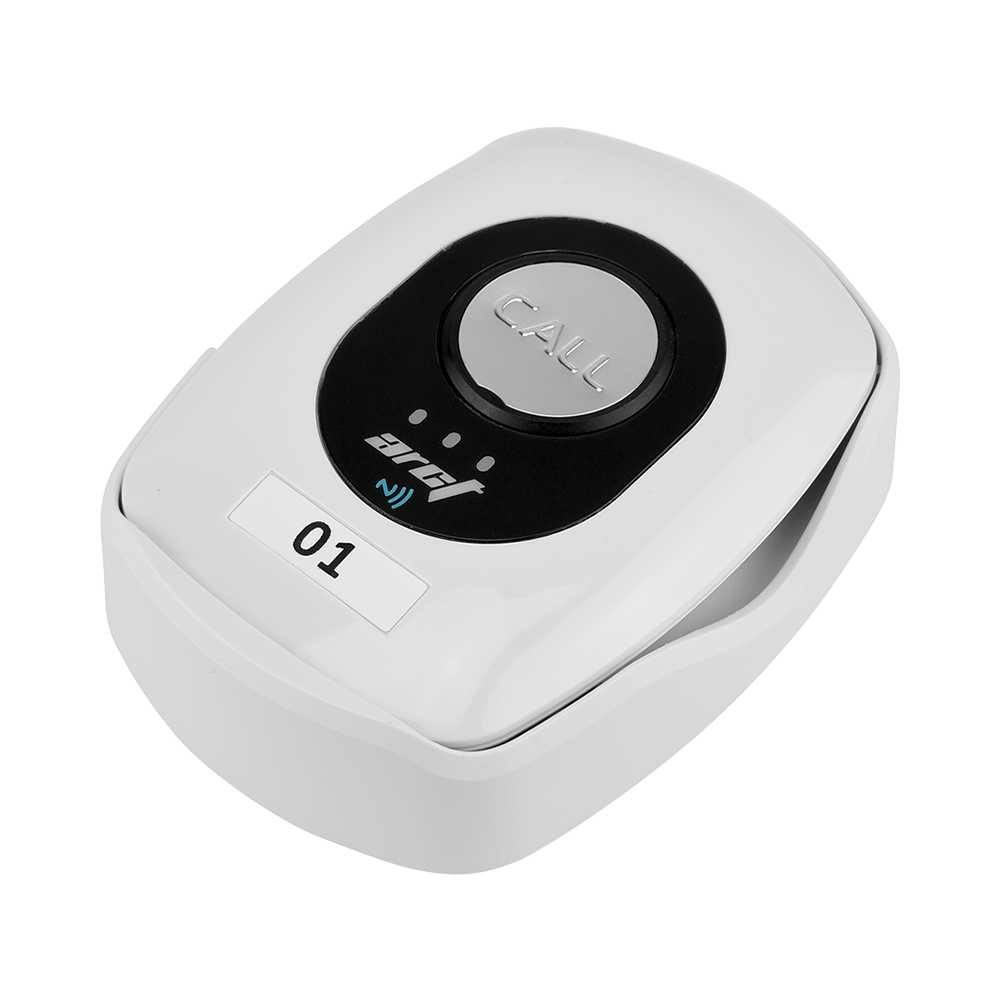

  • PT-01-1-1M.png

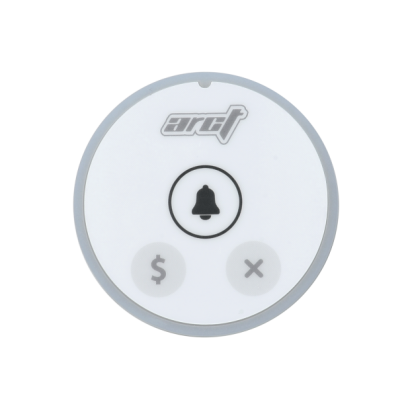

  • PT-03-1-1M.png

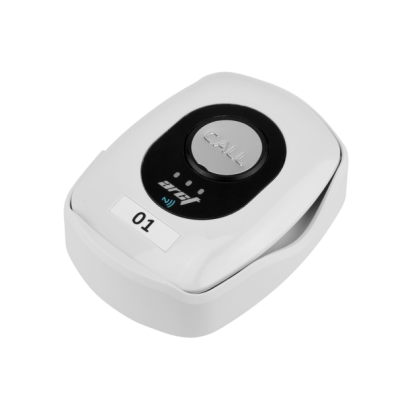

  • PT-01-10-1M.png
DETAIL

SPS-01 Alpha Wireless Text Call System

Overview
The SPS-01 Alpha is a wireless text-based call system designed for real-time communication and efficient service operations. It comprises the PT-01 or PT-03 call buttons paired with the P3 smartwatch-style text receiver. When a customer presses the call button, a message is instantly transmitted to the staff’s wrist receiver, clearly displaying the source and requested service to ensure rapid identification and response.

Key Applications
Ideal for service-intensive environments such as restaurants, cafés, clinics, beauty salons, VIP lounges, and more, this system enhances service quality by:

  • Establishing high service standards

  • Reducing the risk of staff oversight

  • Enabling real-time site monitoring

  • Improving operational efficiency and customer satisfaction

Advantages

  • Clear and intuitive messaging: The smartwatch instantly displays detailed service information, avoiding confusion caused by voice or numeric codes.

  • Instant response, greater efficiency: No need to search for guests or guess their needs—respond immediately.

  • Enhanced customer experience: Guests no longer need to wave, shout, or leave their seats, maintaining a quiet and orderly environment.

  • Optimized service process management: Every call and response time is recorded for better internal management and performance evaluation.

  • Easy installation & flexible deployment: Fully wireless setup eliminates complex wiring; suitable for F&B, medical, retail, and office use.

  • Boosts brand image and customer loyalty: Delivering professional and prompt service builds loyalty and competitive advantage.

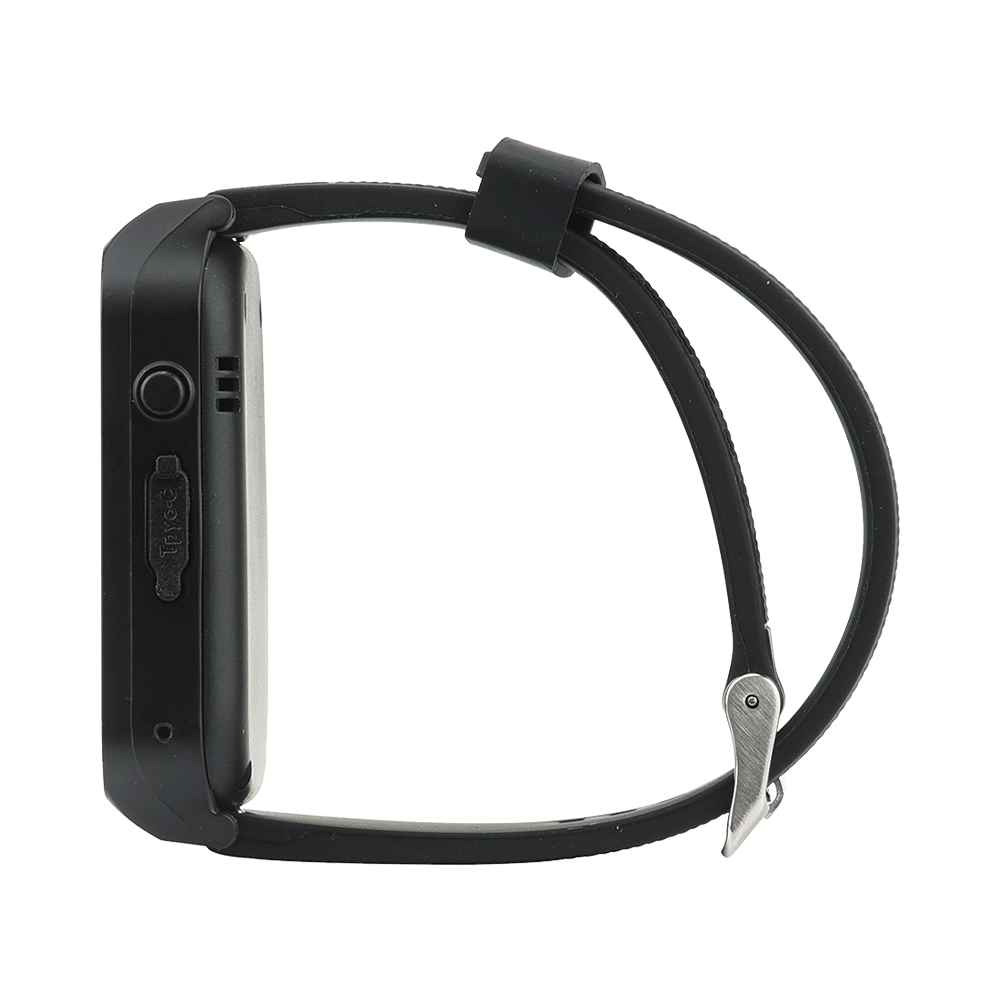

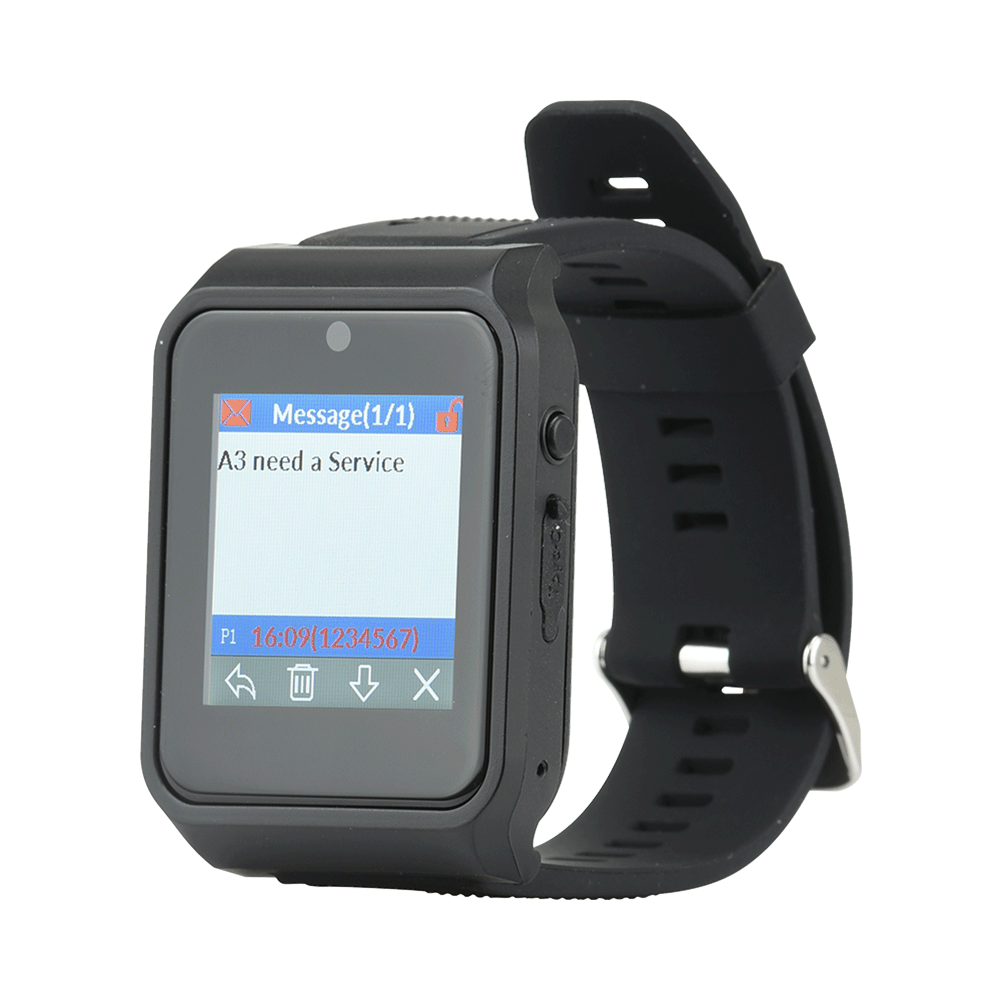

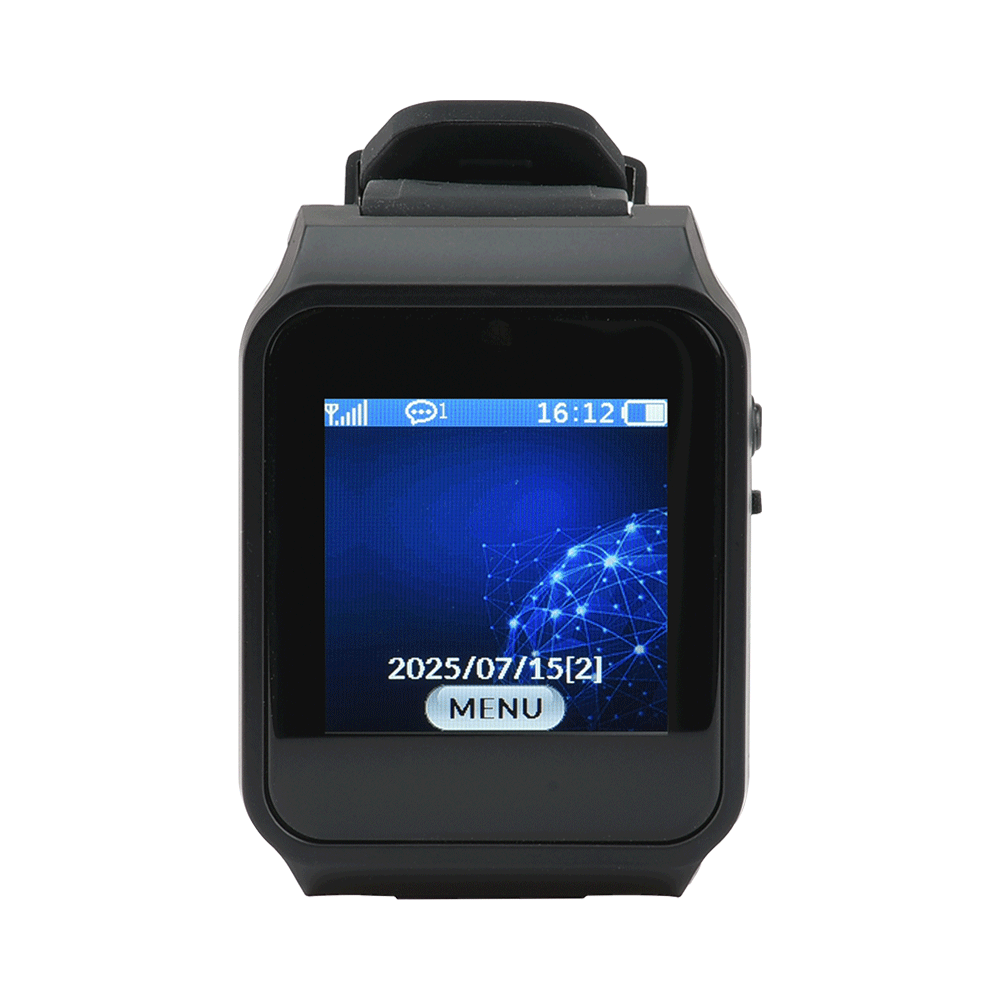

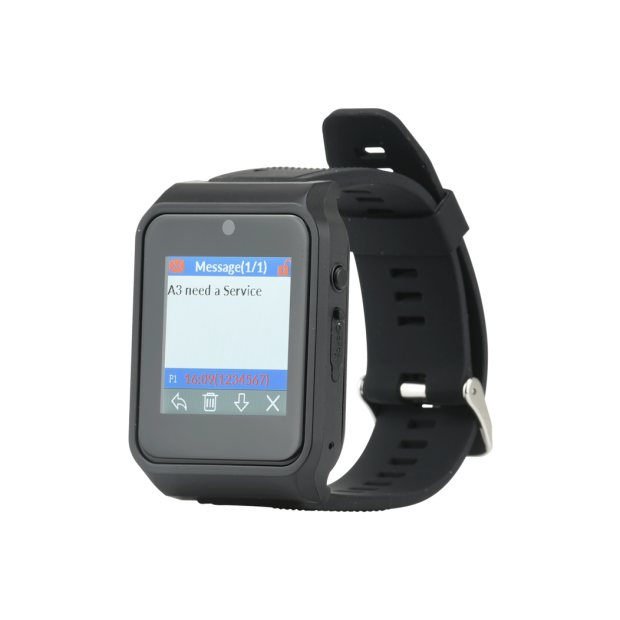

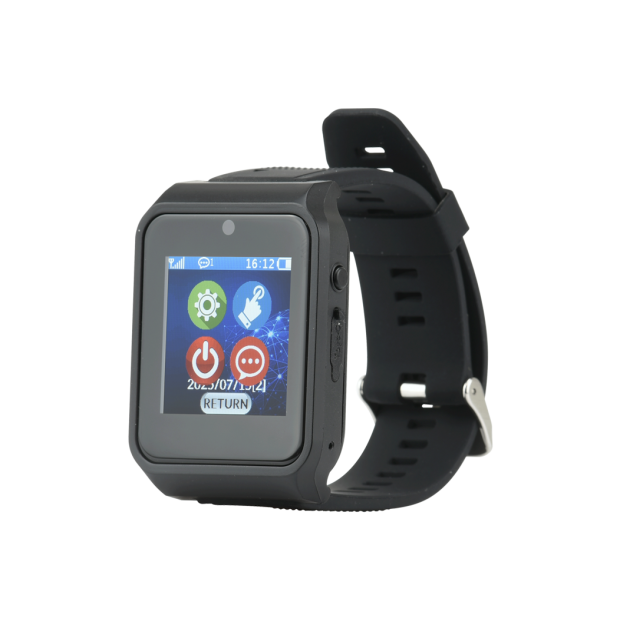

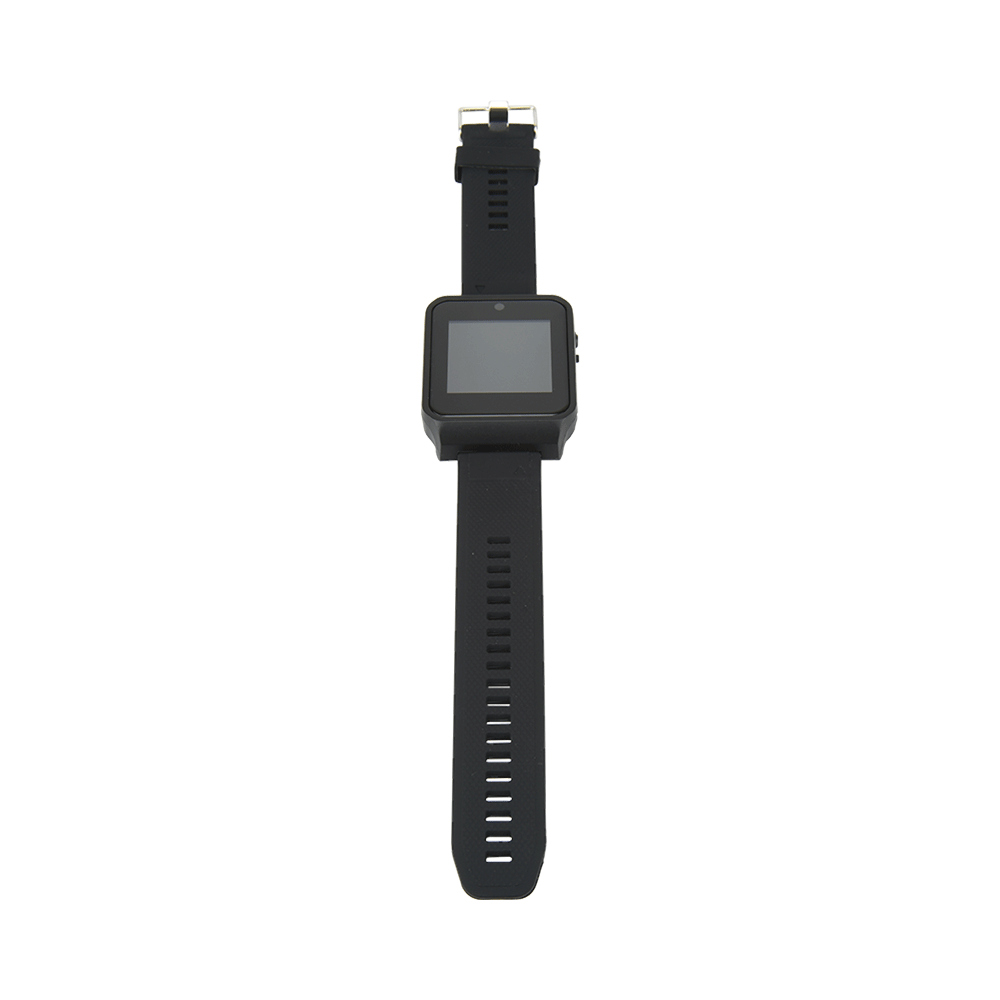

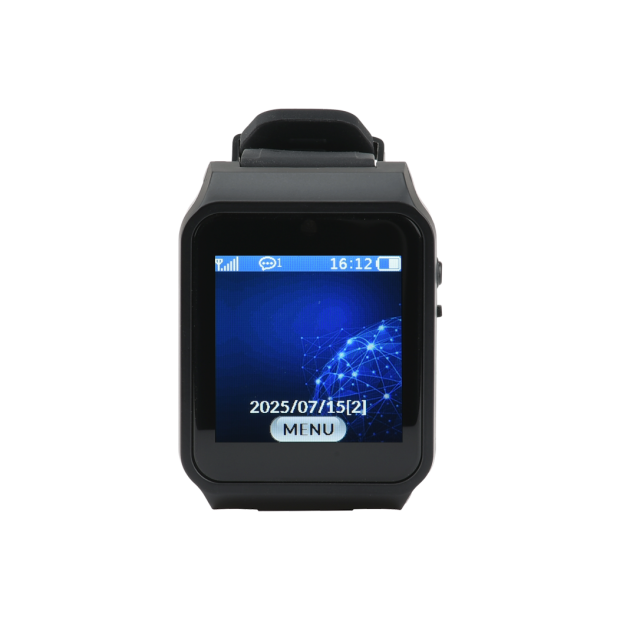

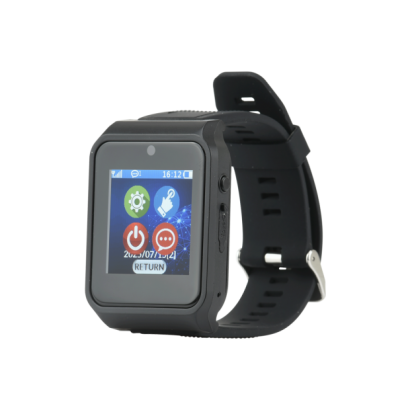

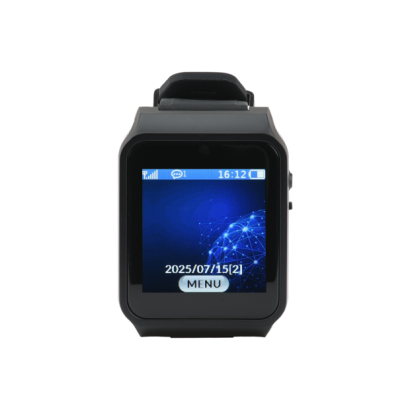

P3 Smartwatch Text Receiver Specifications

Item Specification
Model P3 Watch
Frequency 420–470 MHz
Communication Protocol POCSAG
Channel Spacing 25 KHz
Modulation Deviation ±4.5K
Operating System Visual Graphical UI
Transmission Rates 512 / 1200 / 2400 bps
Alert Modes Sound, Vibration, LED Flash, Silent
Display 1.54" TFT Color Touchscreen
Operation Touchscreen
Message Capacity Stores up to 30 messages, 128 characters max per message
Display Format 3 lines, 19 characters per line
Certifications FCC, CE

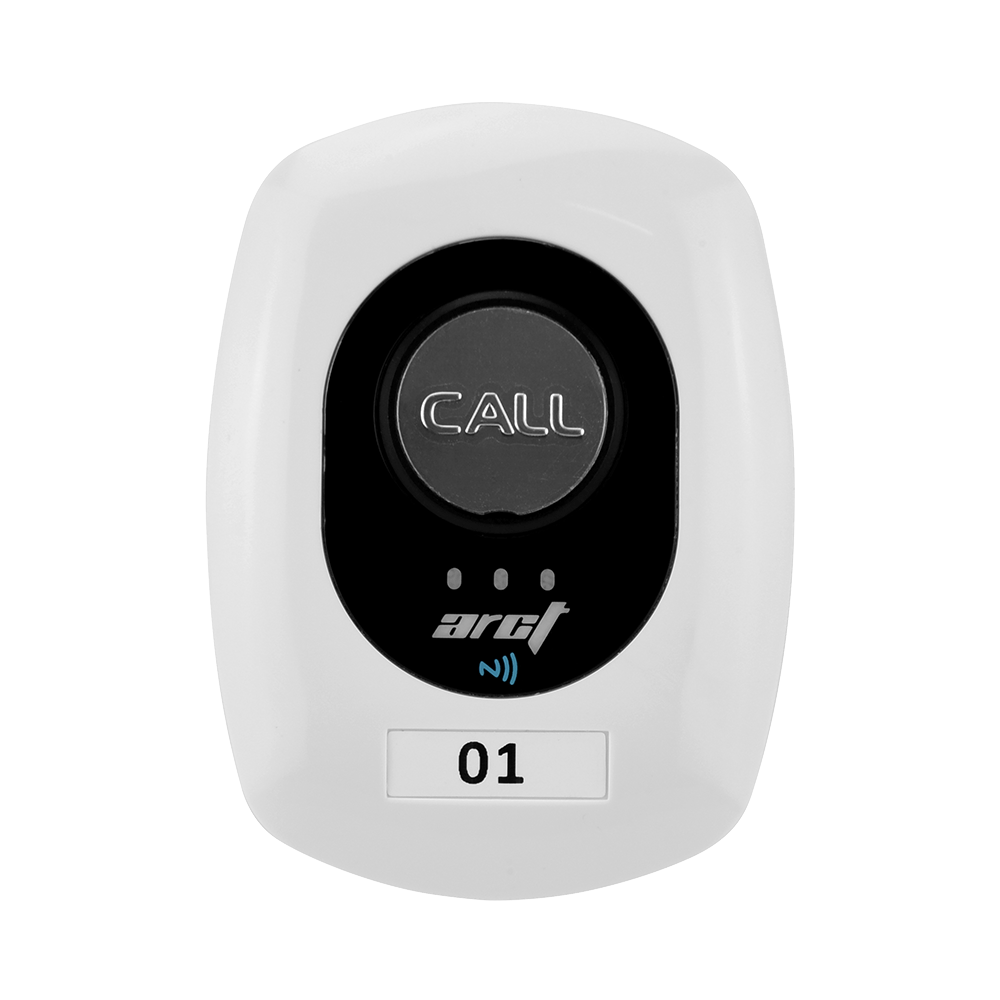

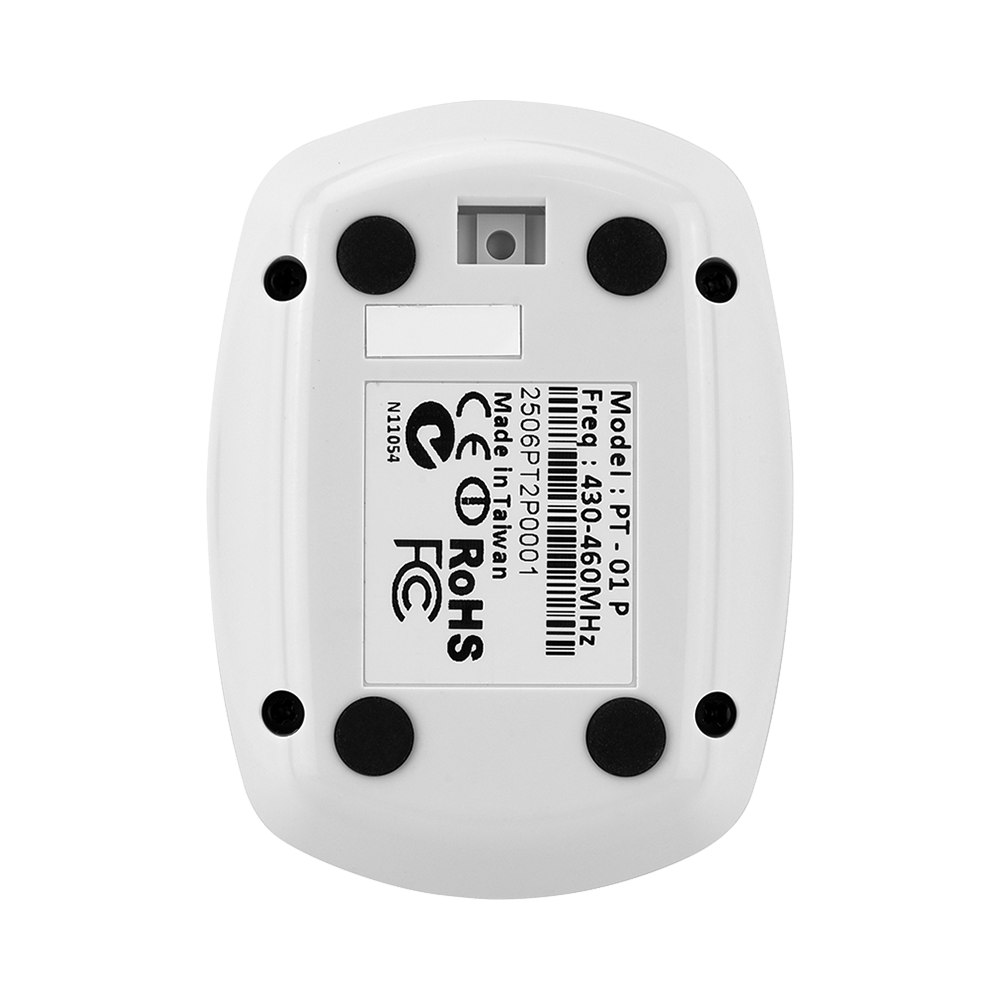

PT-01 Call Button Specifications

Item Specification
Frequency 429–460 MHz
Transmission Rate 1200 bps
Protocol ARCT Protocol & POCSAG
Modulation FSK
Bandwidth 25 K
Output Power 20 dBm (100 mW)
Communication Range Up to 100 meters
Frequency Stability ±10 ppm (-10°C to +60°C)
Dimensions 75 × 55 × 18.5 mm
Weight 60 g
Power Supply 2 x AAA Alkaline Batteries
Battery Life Up to 2 years
Certifications FCC, CE, NCC

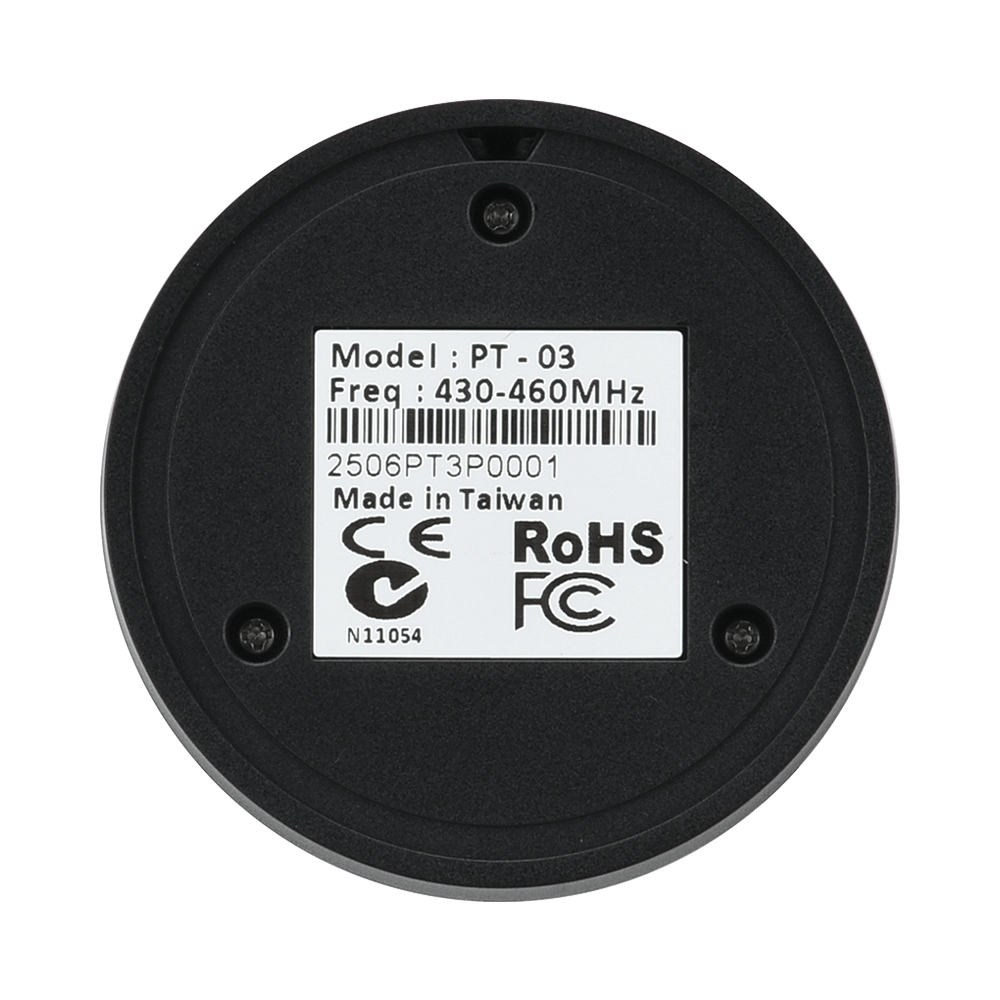

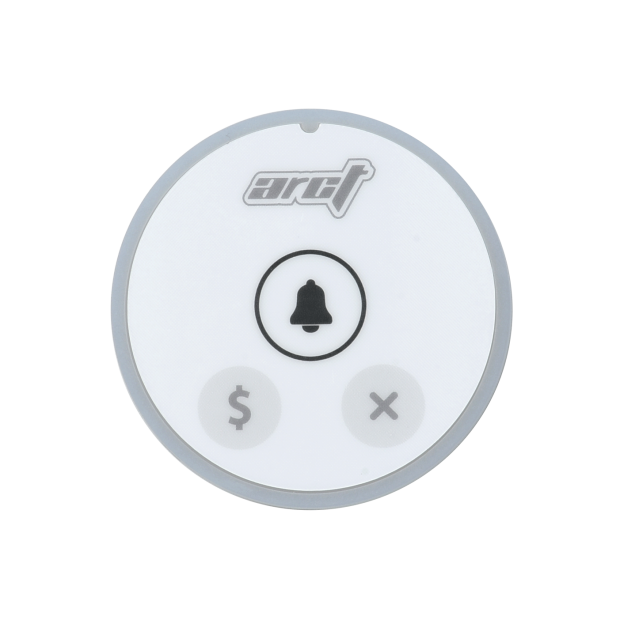

PT-03 Call Button Specifications

Item Specification
Frequency 429–460 MHz
Transmission Rate 1200 bps
Protocol ARCT Protocol & POCSAG
Modulation FSK
Bandwidth 25 K
Output Power 10 dBm (10 mW)
Communication Range Up to 50 meters
Frequency Stability ±10 ppm (-10°C to +60°C)
Dimensions 75 × 55 × 18.5 mm
Power Supply CR2450 3V Battery
Weight 30 g
Battery Life Up to 2 years
Certifications FCC, CE, NCC
