ARCT’s Table Locator System (TLS) is specifically designed for quick-service and casual dining restaurants to streamline the process of locating customer seating after ordering and improve food delivery efficiency.

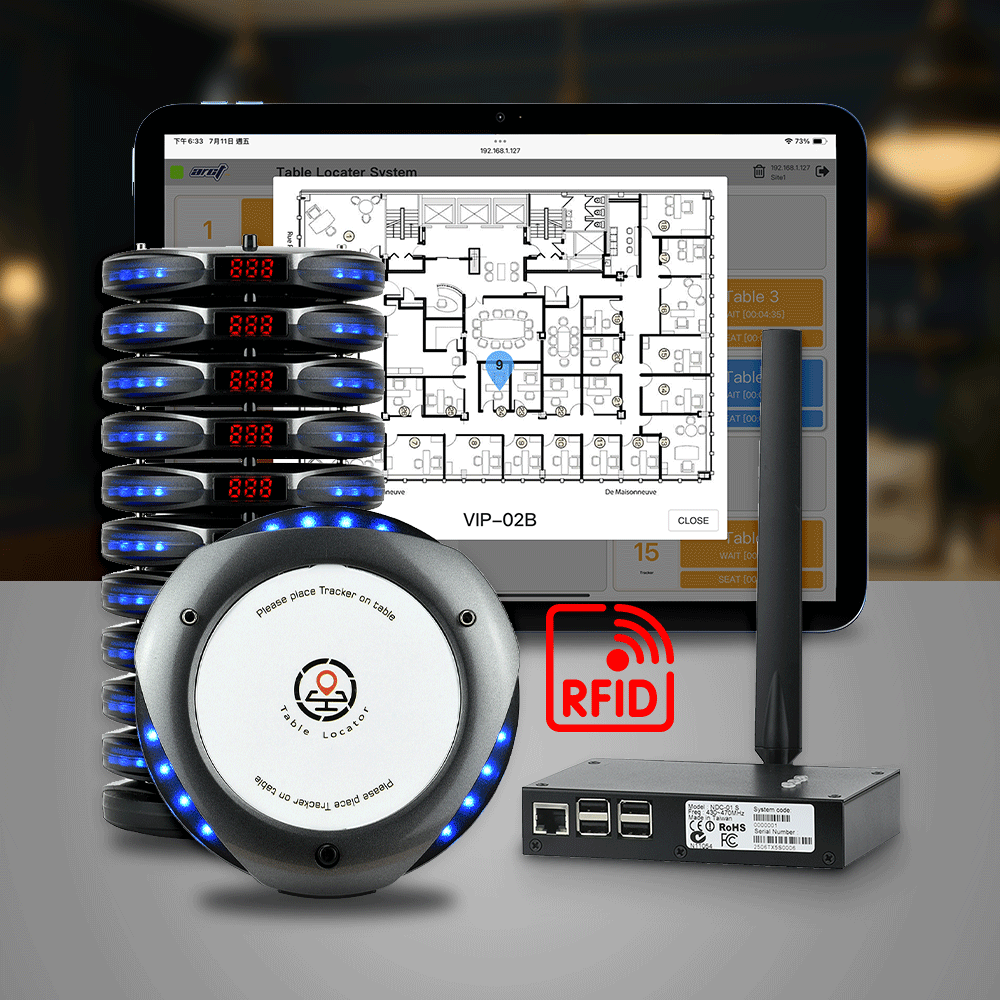

The system includes the GP-02TL table locator, NDC-01 host controller, and the TLS software platform. It can also be paired with large LCD displays, iPads, or tablets for real-time status updates, offering high flexibility and rapid deployment in various dining environments.

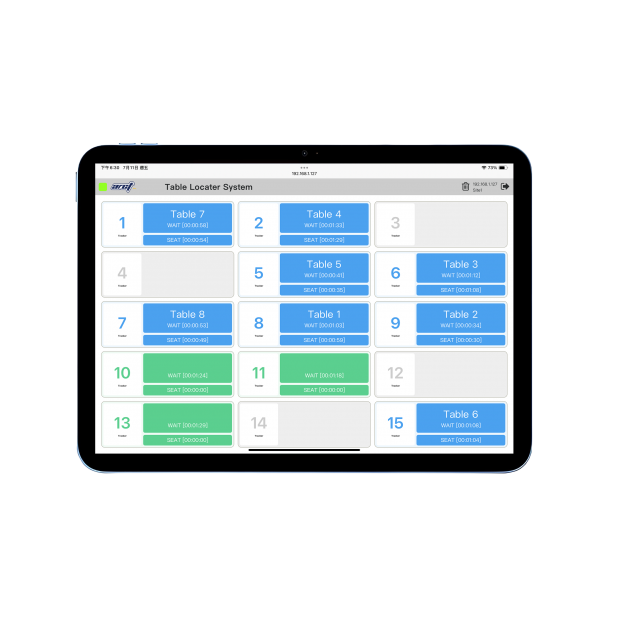

Table Locator System1.png
/
/
/
/
Adobe Express - file.png
/
Table Locator Systempsd.png
/
  • Table Locator System1.png
  • 修圖工作區域-1.png
  • 修圖工作區域-2.png
  • 修圖工作區域-5.png
  • Adobe Express - file.png
  • Table Locator Systempsd.png
DETAIL

Table Locator System (TLS) — Smart Seating and Delivery Solution for Fast Casual Restaurants

ARCT’s Table Locator System (TLS) is specifically designed for quick-service and casual dining environments to solve the common challenges of locating customers after ordering and ensuring efficient food delivery.

The system consists of the GP-02TL table locator, NDC-01 central controller, and the TLS software platform. It can be integrated with large LCD displays, iPads, or other tablets for real-time status updates, offering flexibility and rapid deployment across different restaurant layouts.

How It Works

After placing an order, the customer receives a GP-02TL locator device (similar to a traditional number tag) and freely selects a seat. They simply place the locator on the designated table area. Once the food is ready, the system immediately displays the corresponding table number and location, allowing staff to deliver the meal quickly and accurately—no need to search for the customer.

Key Benefits

  • Precise Positioning, Faster Delivery
    Real-time table location display ensures accurate and efficient food delivery.

  • Intuitive and Easy to Use
    Customers use the locator just like a traditional number tag—no training required.

  • Flexible Seating with Automatic Tracking
    Customers can freely change tables; the system automatically updates their location.

  • Reduced Labor and Increased Efficiency
    Staff no longer need to search table-by-table, saving time and improving workflow.

  • Multi-Device Support and Scalable Deployment
    Compatible with large LCD screens, iPads, and Android tablets—suitable for restaurants of all sizes.

  • Enhanced Dining Experience and Brand Image
    Provides a smart, seamless, and professional service impression that elevates customer satisfaction.

System Highlights

  • Bi-directional Sub-1G wireless communication for stable and long-range data transmission.

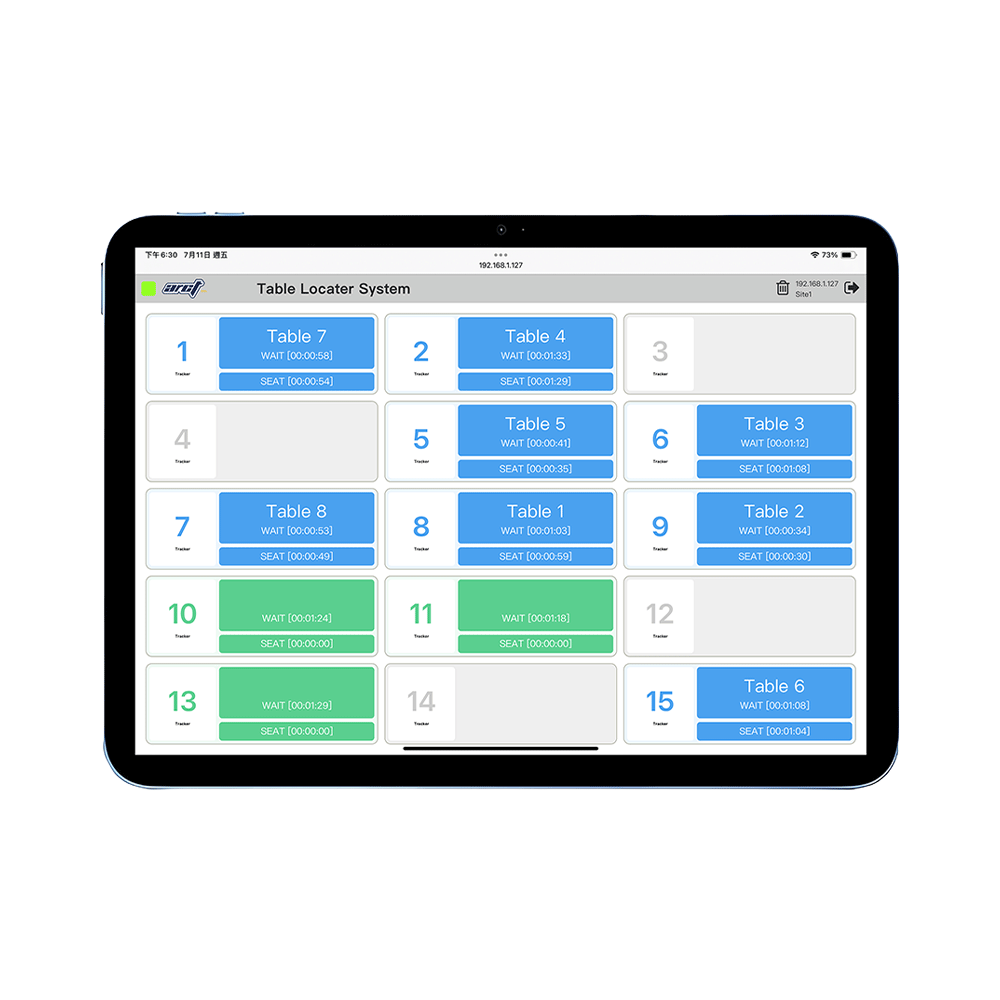

  • Real-time updates on locator position and waiting time.

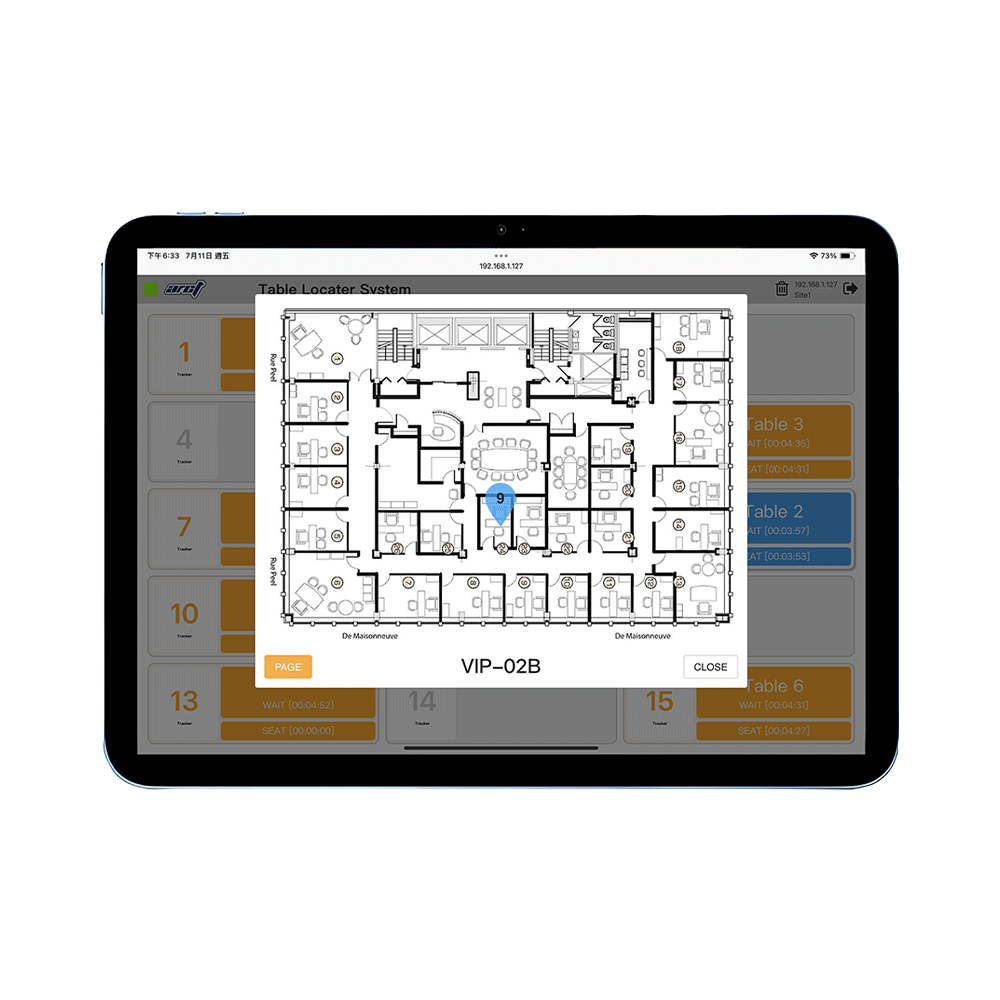

  • Restaurant floor plan view for intuitive tracking.

  • Pickup call feature for notifying take-out customers to collect their orders.

  • Coverage up to 300 meters, supporting large and multi-floor venues.

  • Cross-platform compatibility: Windows, Android tablets, and iPad.

  • Simple and intuitive user interface for smooth operation.

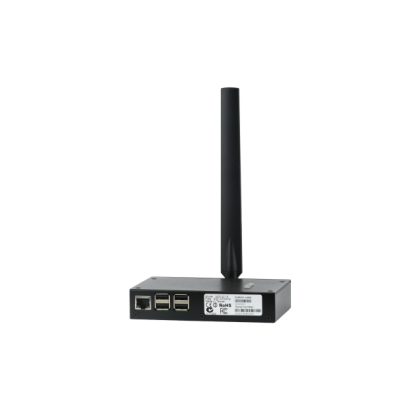

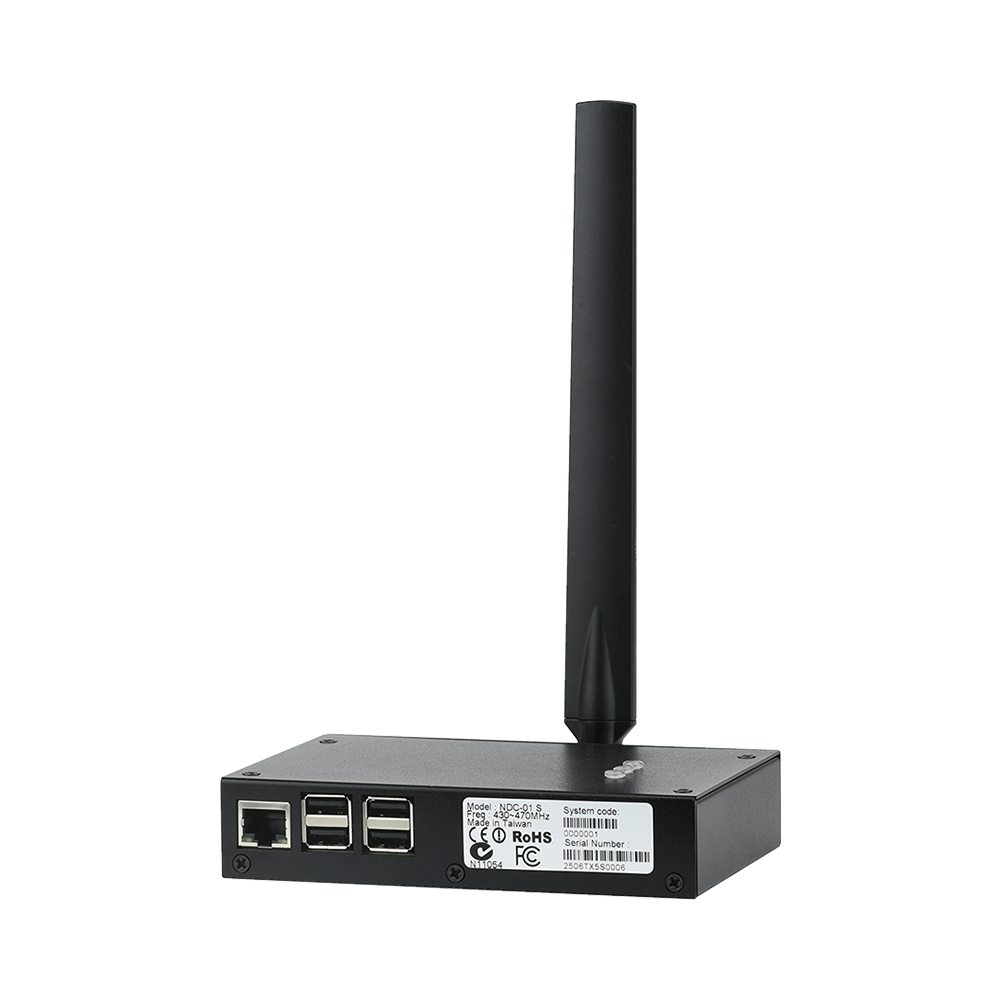

NDC-01 RF Specifications

  • Frequency: 429–470 MHz

  • Data Rate: 1200 / 9600 / 12000 bps

  • Modulation: FSK

  • Output Power: 0.1 Watt

  • Deviation: ±4.5 kHz, ±9.6 kHz, ±12 kHz

  • Channel Bandwidth: 25 kHz, 50 kHz, 200 kHz

  • RF Output Connector: SMA (Female)

  • Frequency Stability: ±2 ppm (-10°C to +60°C)

  • Power Consumption: Standby 200 mA; Transmit 500 mA

  • Power Supply: 5 V / 3 A

  • Operating Environment: 0°C to +50°C; 20% to 90% RH (non-condensing)

  • Dimensions: 138 mm (W) × 90 mm (D) × 30 mm (H)

  • Weight: 450 g (excluding power adapter)

Mainboard Specifications

  • SoC: Broadcom BCM2387B0 chipset

  • CPU: 1.4 GHz Quad-Core ARM Cortex-A53 (64-bit)

  • GPU: Dual Core VideoCore IV multimedia co-processor supporting OpenGL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 decode

  • Memory: 1 GB LPDDR2 (shared with GPU)

  • Video Outputs: Composite RCA, HDMI

  • Audio Output: 3.5 mm jack, HDMI (1.3 & 1.4)

  • USB: 4 × USB 2.0 ports

  • Ethernet: Gigabit Ethernet over USB 2.0 (max throughput 300 Mbps)

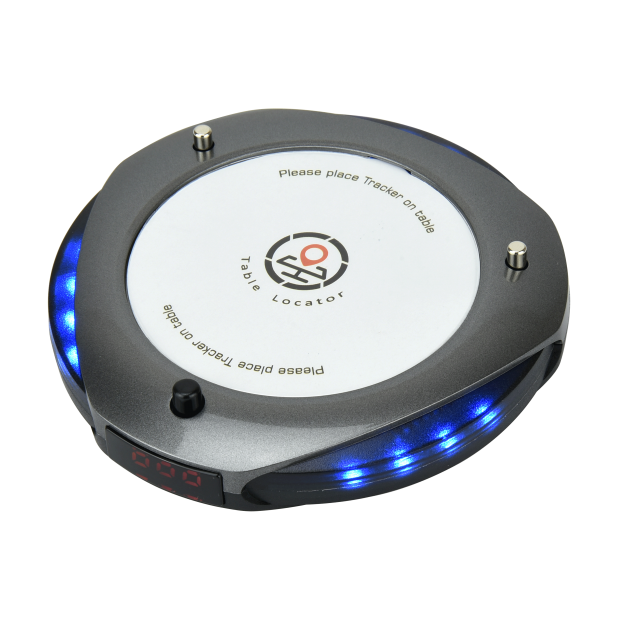

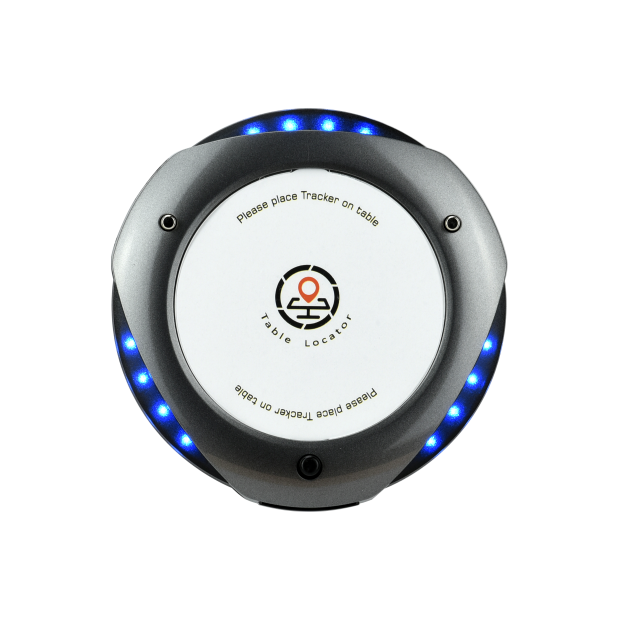

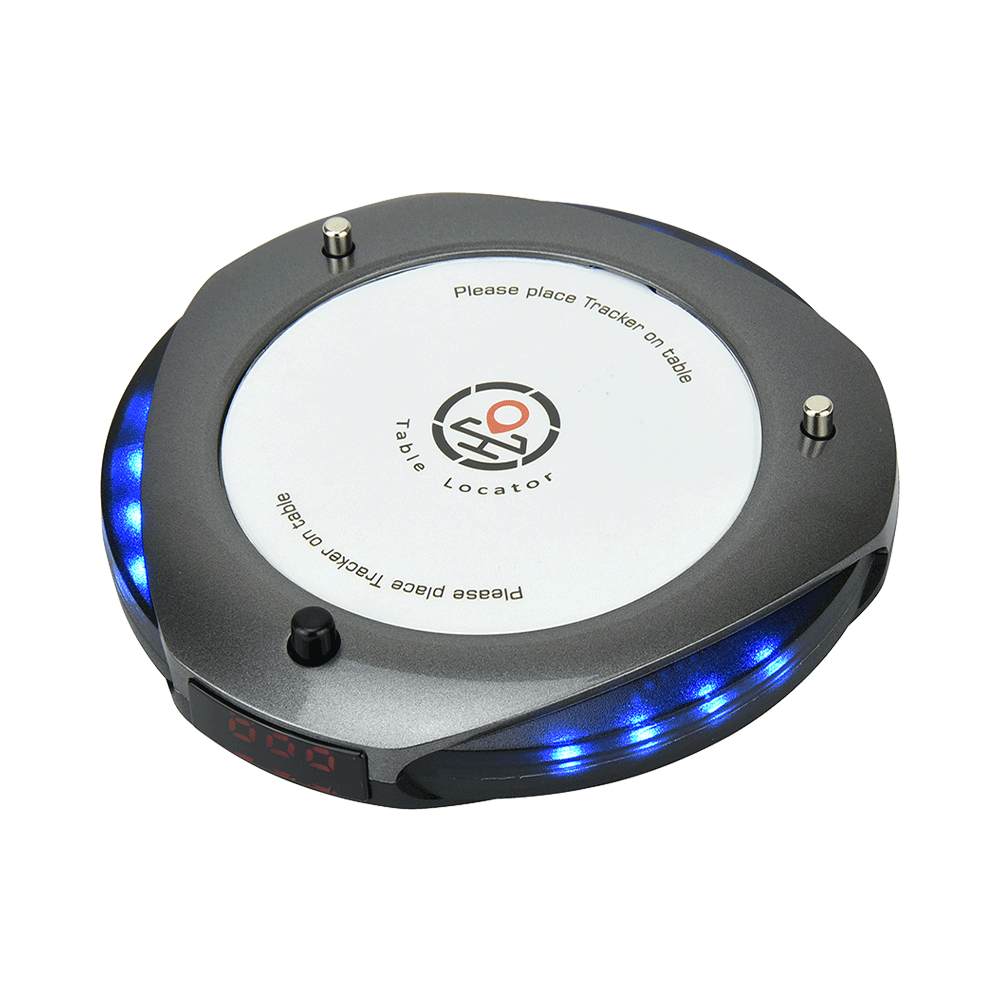

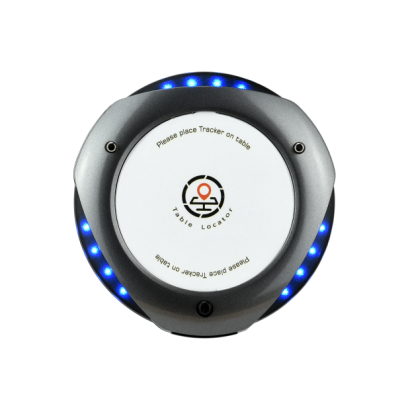

GP-02TL Specifications

  • Frequency: 429~460MHz

  • Transmission rate: 1200 bps

  • Modulation: FSK

  • Modulation bandwidth: +/- 25KHz

  • Communication protocol: ARCT Protocol

  • Sound level: 80dBa @10cm

  • Dimensions: 100 × 100 × 16.5 mm

  • Power input: 1.2V NiMH AAA × 1

  • Certifications: FCC, CE, NCC

  • Battery life: Up to 48 hours per full charge

  • RFID Tag: ISO 15693

  • RFID read distance: 10 cm

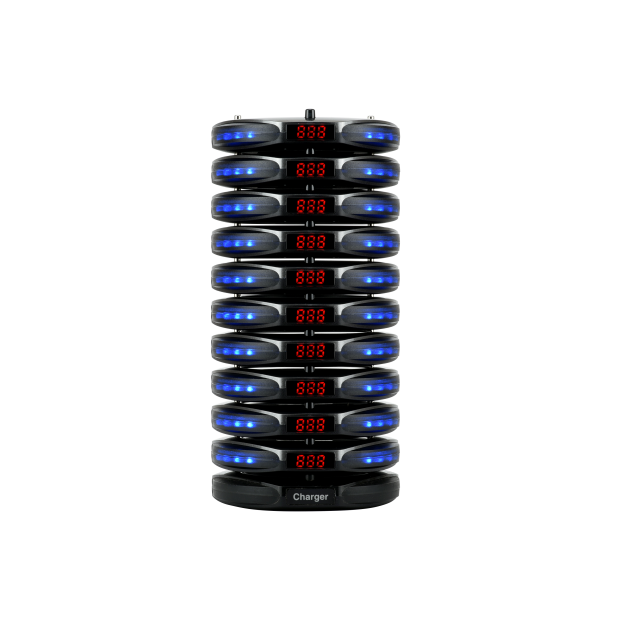

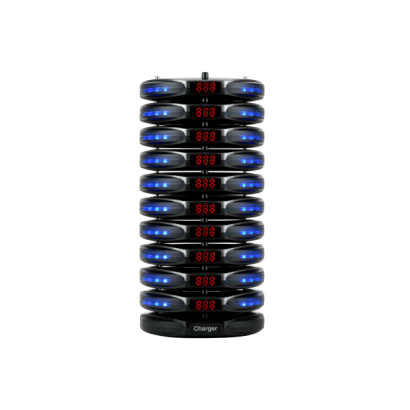

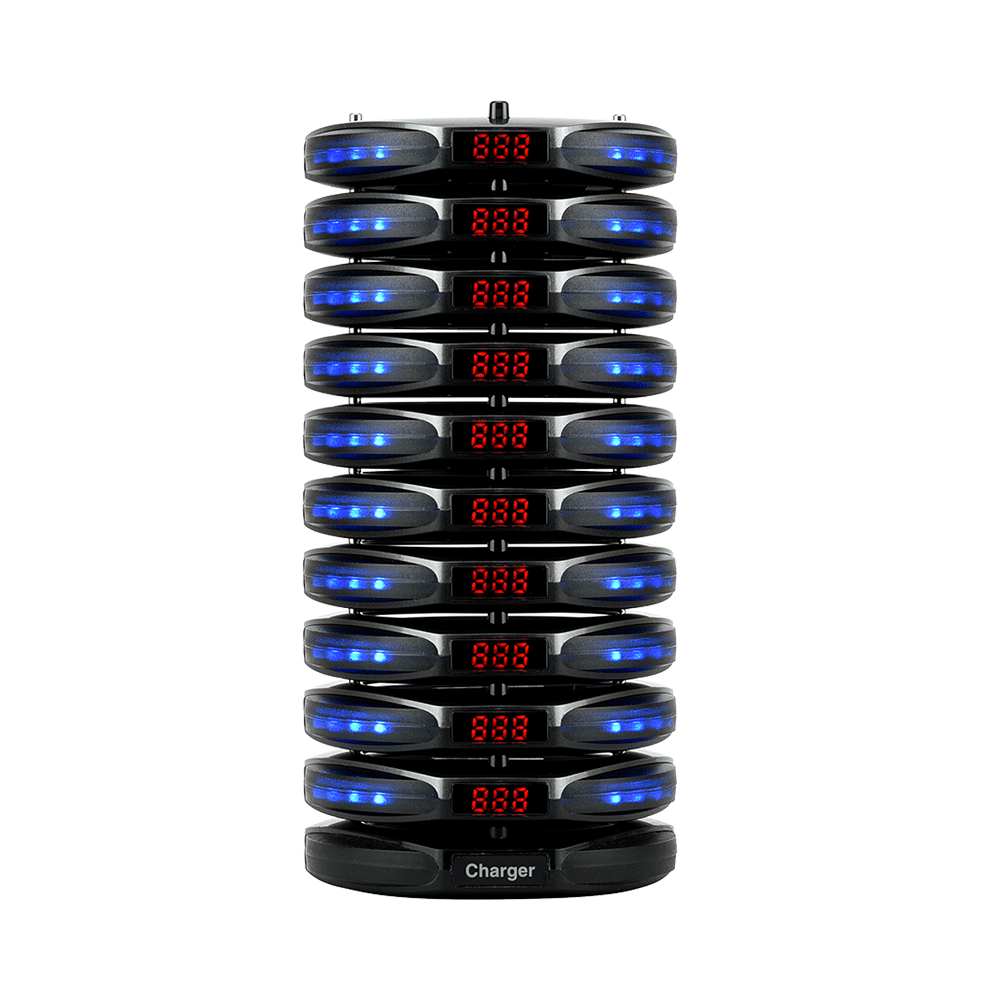

GPC-02 Specifications

  • Model: GPC-02

  • Charging Current: 90~100mA (per pager)

  • Power Input: 5V/2A adapter

  • Standby Current: 5mA

  • Dimensions: 105 x 105 x 18 mm

  • Certifications: FCC, CE
