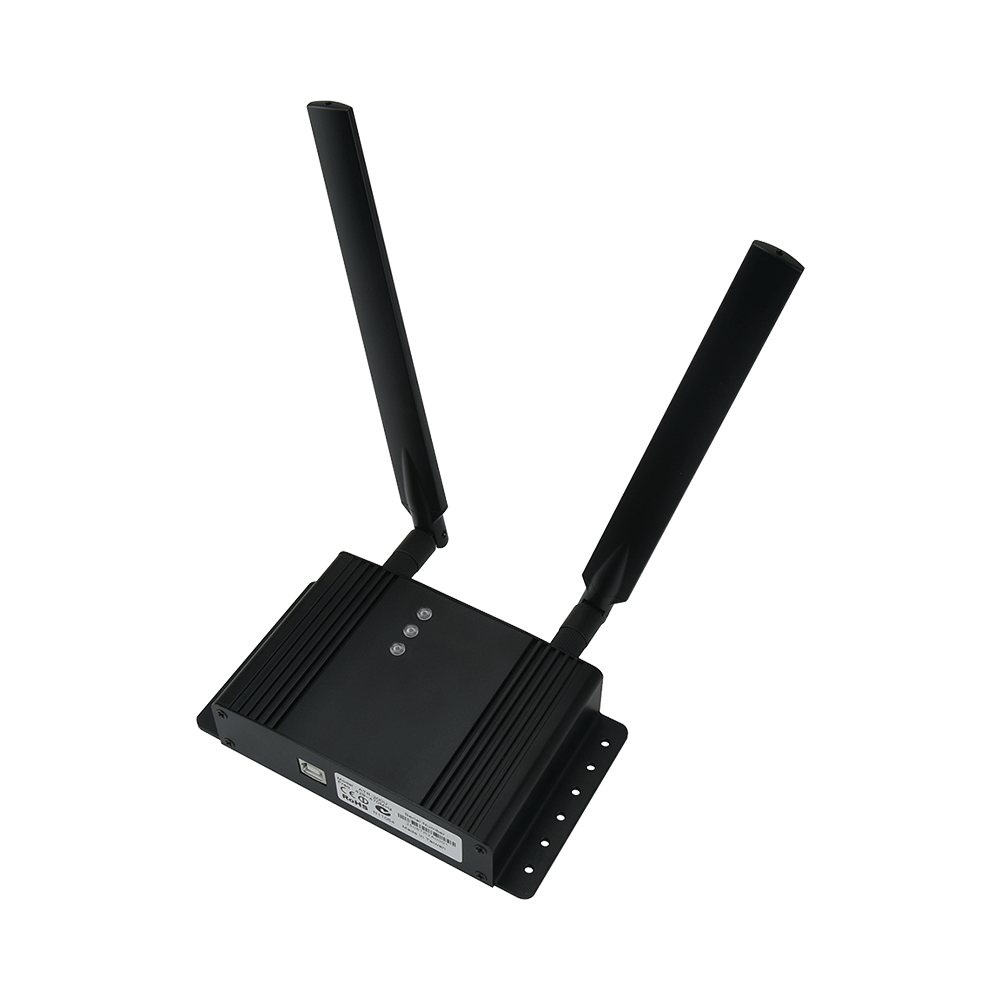

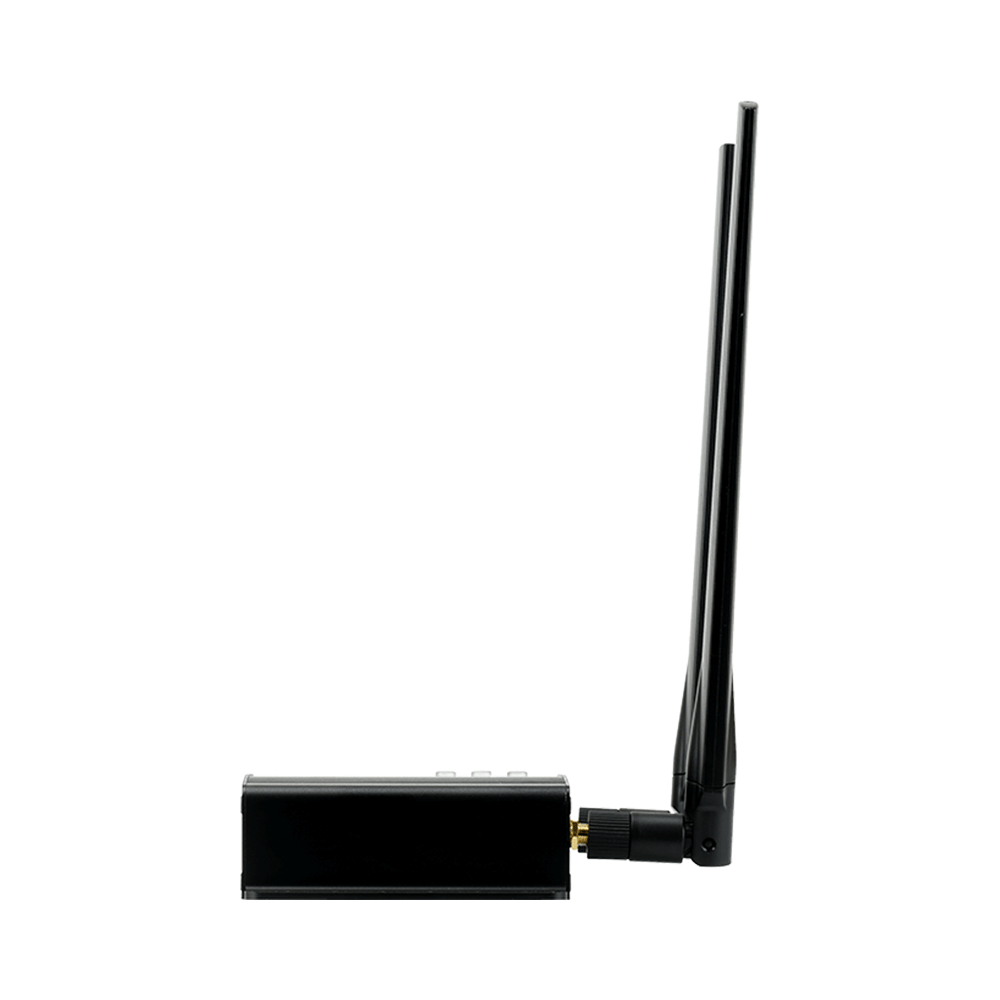

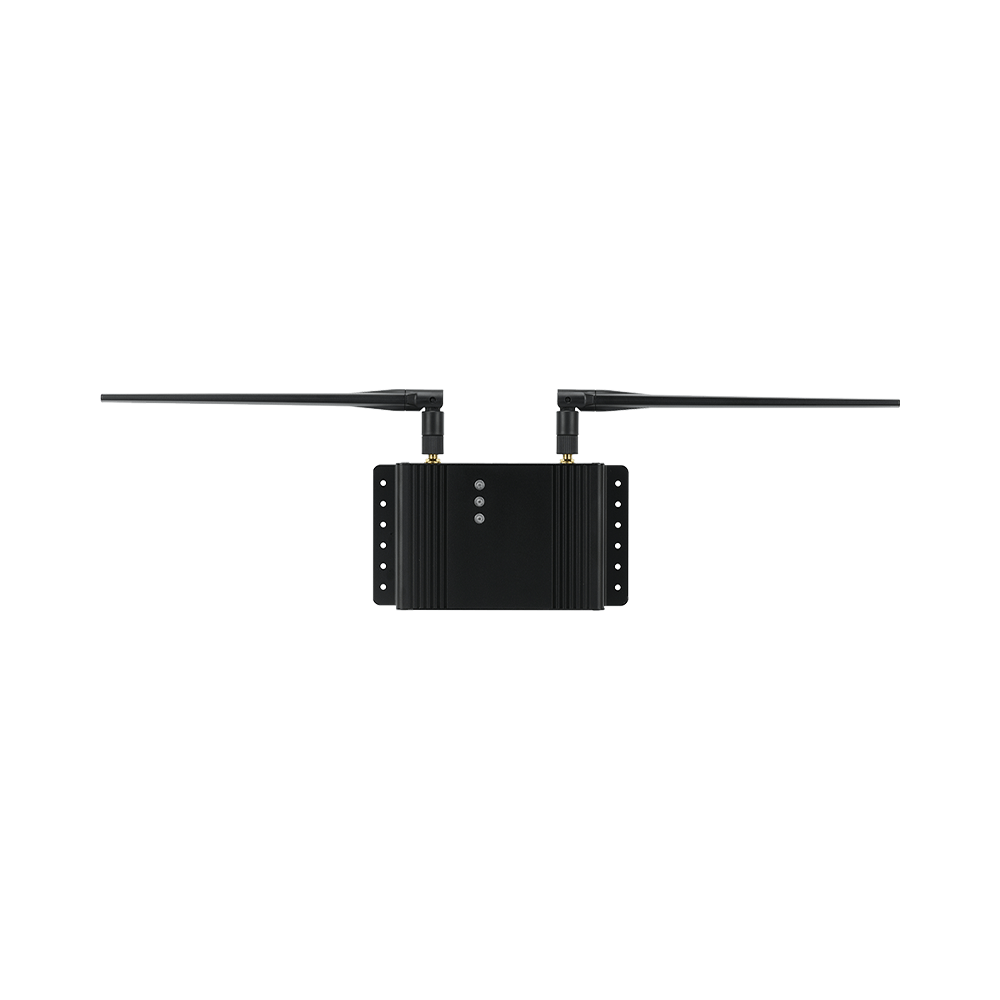

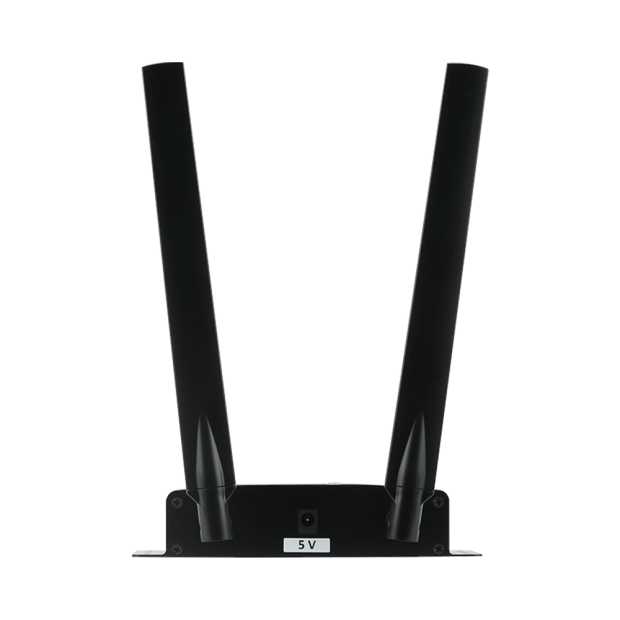

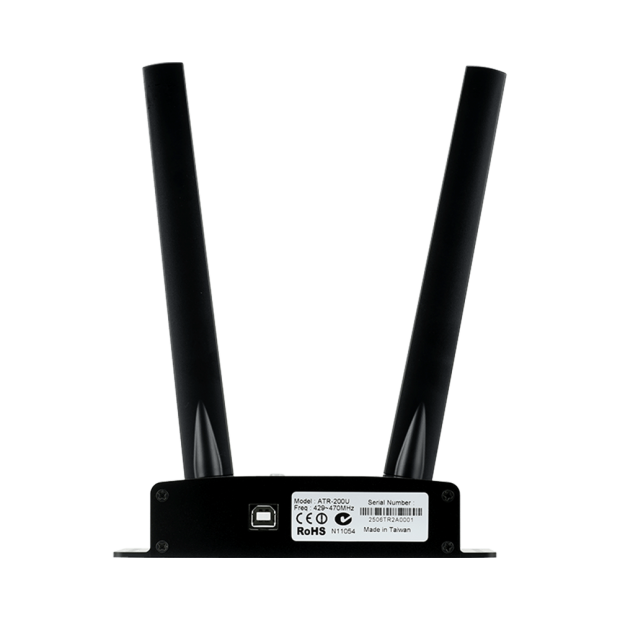

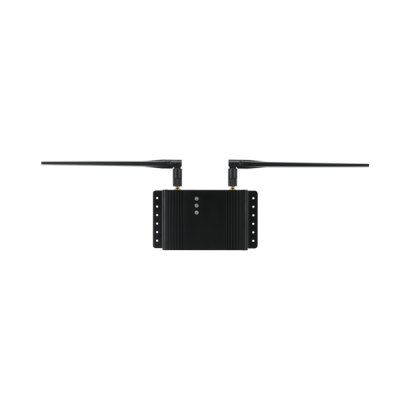

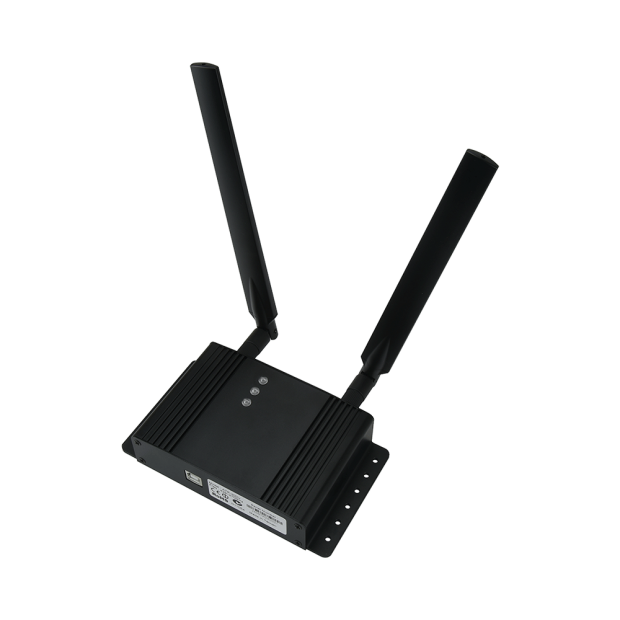

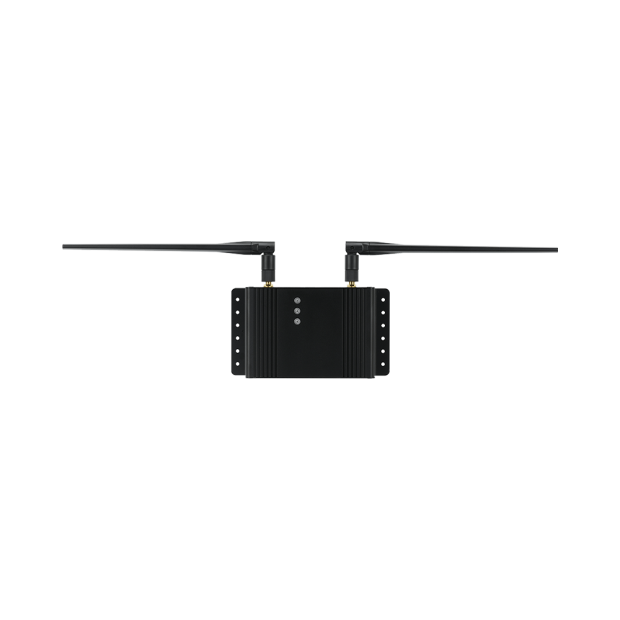

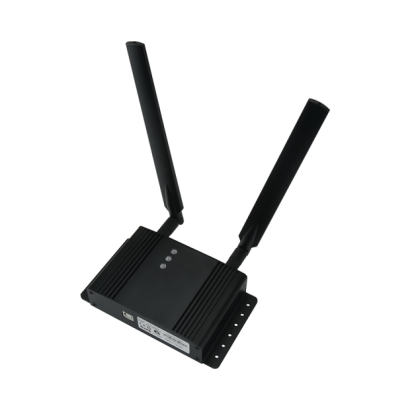

ATR-200U Dual-Band Dual-Channel Wireless Repeater
Enhanced Two-Way Communication × Extended Wireless Coverage × Quick Deployment
The ATR-200U is a compact, dual-band dual-channel wireless signal repeater designed to enhance the communication performance of ARCT wireless systems. By extending both uplink and downlink channels, it effectively increases wireless transmission range, eliminates signal dead zones, and ensures stable, uninterrupted system communication.
Supporting full two-way communication, the ATR-200U is ideal for ARCT Service Call Systems and Table Locator Systems. Its easy installation requires only frequency configuration and proper placement—no additional wiring needed—to significantly improve wireless coverage.
The ATR-200U is the perfect solution to boost wireless signal stability and coverage in various environments, including restaurant, medical, and industrial applications.
Product Advantages
-
Dual-band dual-channel design: simultaneously extends uplink and downlink signals
-
Effectively expands communication range and eliminates dead zones
-
Plug-and-play: quick installation and simple configuration
-
Engineered for two-way communication systems with stable and reliable performance
Features
-
Easy setup
-
Water-resistant surface design
-
Wall-mountable
-
Coverage range up to 1 km (line of sight) between transmitter and receiver
Specifications
| Parameter | Specification |
|---|---|
| Model | ATR-200U |
| Frequency | 429–470 MHz |
| Output Power | 0.5 Watt |
| Data Rate | 1200 bps / 9600 bps |
| Modulation | FSK |
| Modulation Bandwidth | ±4.5 KHz |
| Channel Bandwidth | 25 KHz |
| Harmonic Suppression | Less than -25 dBm |
| Frequency Stability | ±2 ppm at -10°C to +60°C |
| RF Connector | SMA (Female) |
| Audio Level | 75 dBa @10cm |
| Current Consumption | Standby: 100mA; Transmit: 1000mA |
| Power Supply | 5V/3A Adapter |
| Dimensions | 120 x 180 x 26.5 mm |
| Certifications | FCC, CE, NCC |
