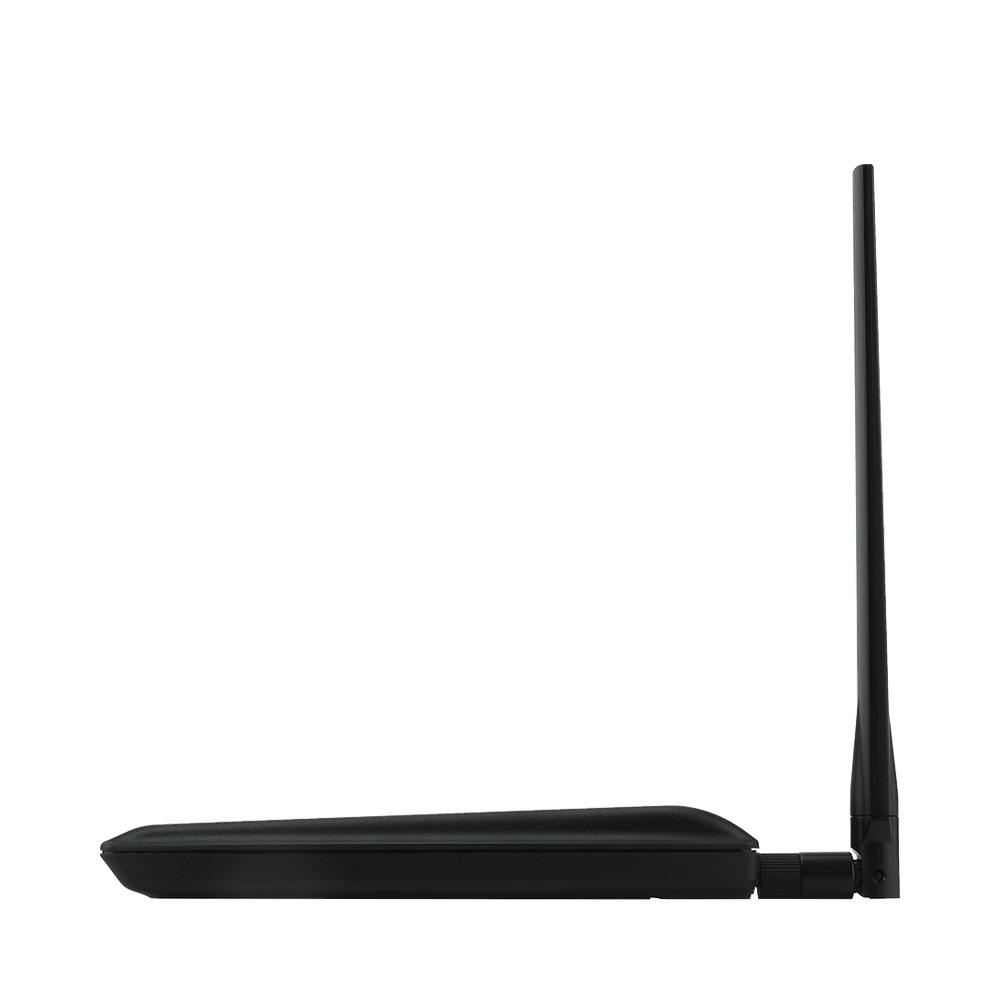

ATR-5000 5W Wireless Signal Repeater

ATR-5000 5W Wireless Signal Repeater

5W High Power Output | Extended Coverage Beyond 2 Kilometers | Dedicated Solution for Dining and Commercial Plazas

The ATR-5000 is a high-power 5W wireless signal repeater designed for large-area applications. It significantly extends wireless signal coverage, eliminates communication dead zones, and effectively supports stable operation of the ARCT wireless call system across expansive venues.
/
/
/
/
/

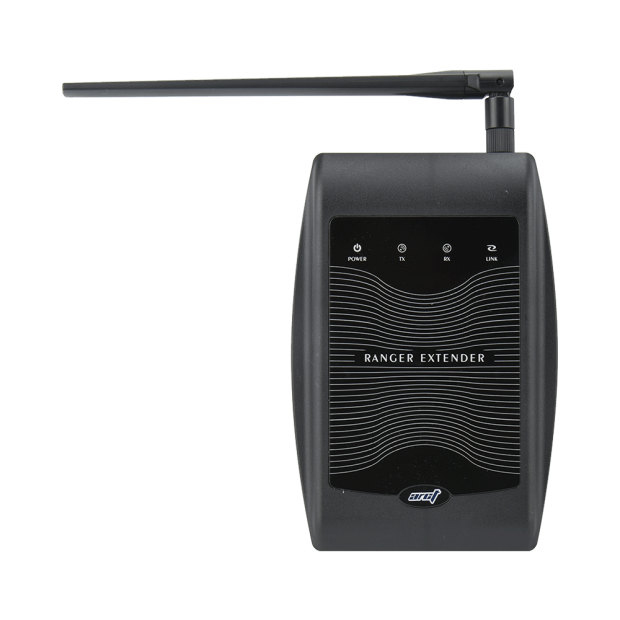

  • ATR-5000-1.png

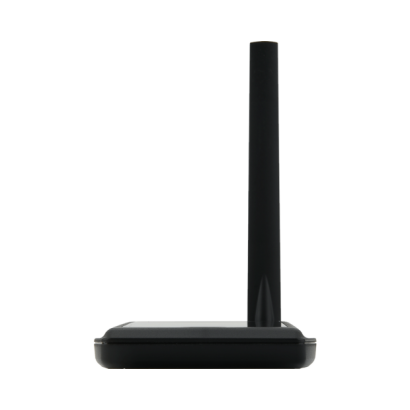

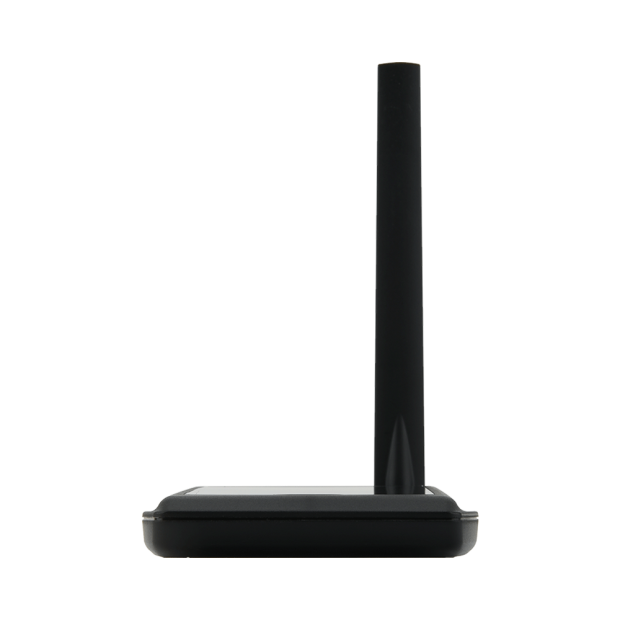

  • ATR-5000-2.png

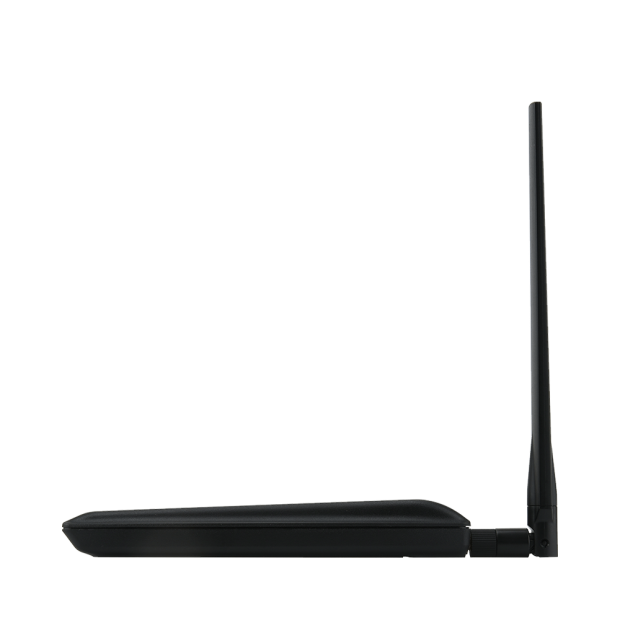

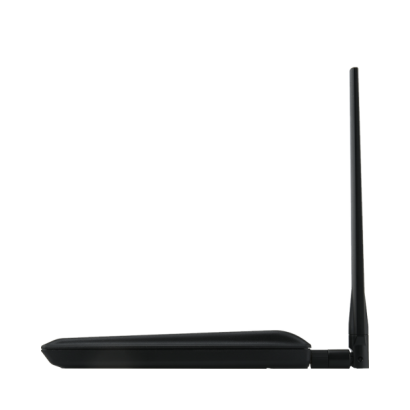

  • ATR-5000-3.png

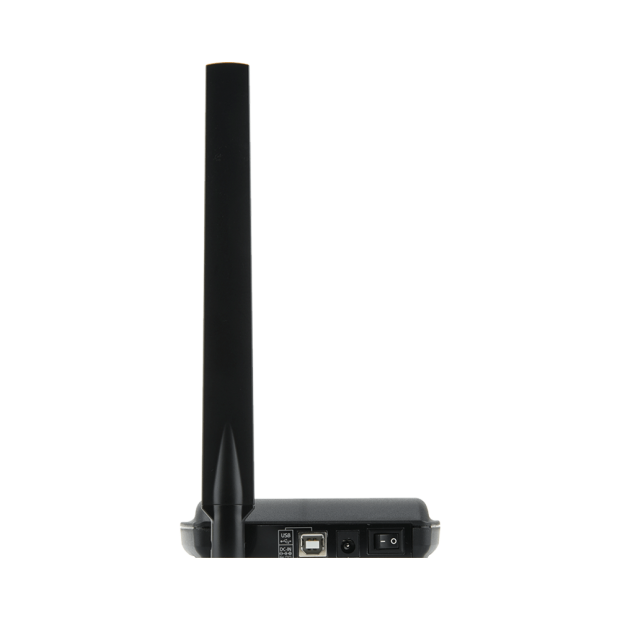

  • ATR-5000-4.png

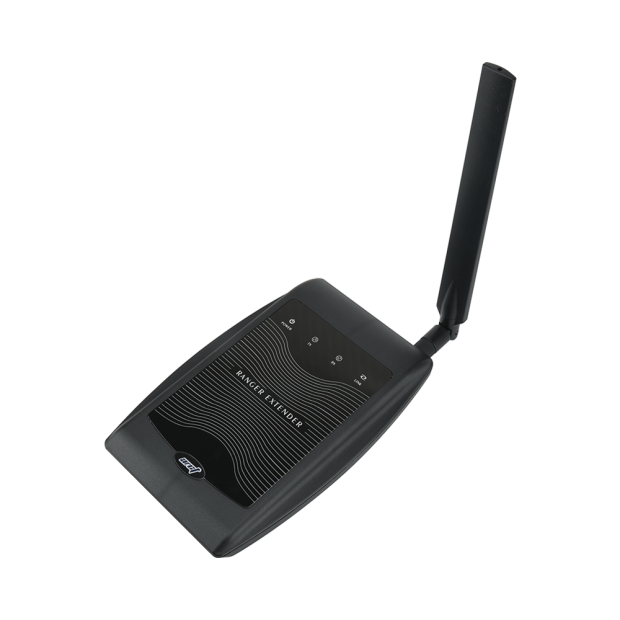

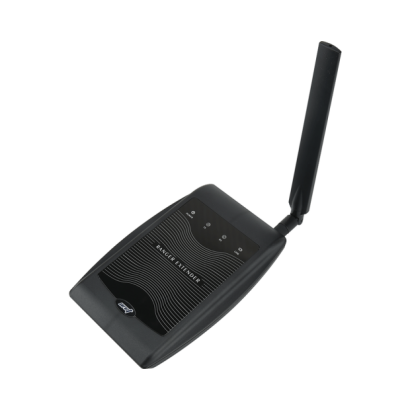

  • ATR-5000-5.png
DETAIL

ATR-5000 High-Power Wireless Signal Repeater
5W High Power Output | Coverage Beyond 2 Kilometers | Dedicated Solution for Food Courts and Large Venues

The ATR-5000 is a 5W high-power wireless signal repeater designed for large-area applications. It significantly extends wireless signal coverage, eliminates communication dead zones, and ensures stable operation of the ARCT wireless call system across expansive venues.

Equipped with a high-gain transmission module, it can achieve communication distances exceeding 2 kilometers, making it ideal for large spaces such as food courts, open plazas, shopping malls, exhibition halls, and warehouses. The dedicated wall-mount bracket allows flexible installation on walls or pillars for quick and adaptable deployment.

Key Advantages

  • 5W high power output delivers strong signal penetration and extended coverage

  • Communication range up to 2 kilometers in open line-of-sight conditions

  • Eliminates signal dead zones for reliable two-way communication

  • Suitable for large spaces with multiple simultaneous devices

Features

  • Easy installation

  • Splash-resistant surface design

  • Wall-mountable

  • Coverage radius up to 2 km (unobstructed) between transmitter and receiver

Specifications

  • Model: ATR-5000

  • Frequency: 429~470 MHz

  • Output Power: 5 Watts

  • Data Rate: 1200 bps

  • Communication Protocol: ARCT Protocol

  • Modulation: FSK

  • Modulation Bandwidth: ±4.5 KHz

  • Channel Bandwidth: 25 KHz

  • Harmonic Suppression: Less than -25 dBm

  • Frequency Stability: ±2 ppm (-10°C to +60°C)

  • Output Connector: SMA (F)

  • Sound Level: 80 dBa @ 10 cm

  • Current Consumption: Standby: 100 mA; Transmit: 1000 mA

  • Power Input: 12V/2A adapter

  • Dimensions: 120 × 180 × 26.5 mm

  • Certifications: FCC, CE, NCC
