GP-02TL Table Locator Pager (TLS)

GP-02TL Table Locator Pager (TLS)

Smart Table Locator System – Precise Food Delivery, Enhanced Customer Service Efficiency

ARCT’s TLS (Table Locator System) is specially designed for fast-food and casual dining restaurants, offering a smarter and more efficient food delivery solution. Its intuitive operation mirrors the familiar number-tag system used by customers for order pickup.
After ordering, customers receive a table locator device. Once seated, they simply place the locator on the designated sensing area of the table, and the system automatically records their table location. When the meal is ready, delivery staff can easily identify the exact table number and seating area via the backend display, ensuring accurate and timely delivery—no more searching for customers.
/
/
/
/
/

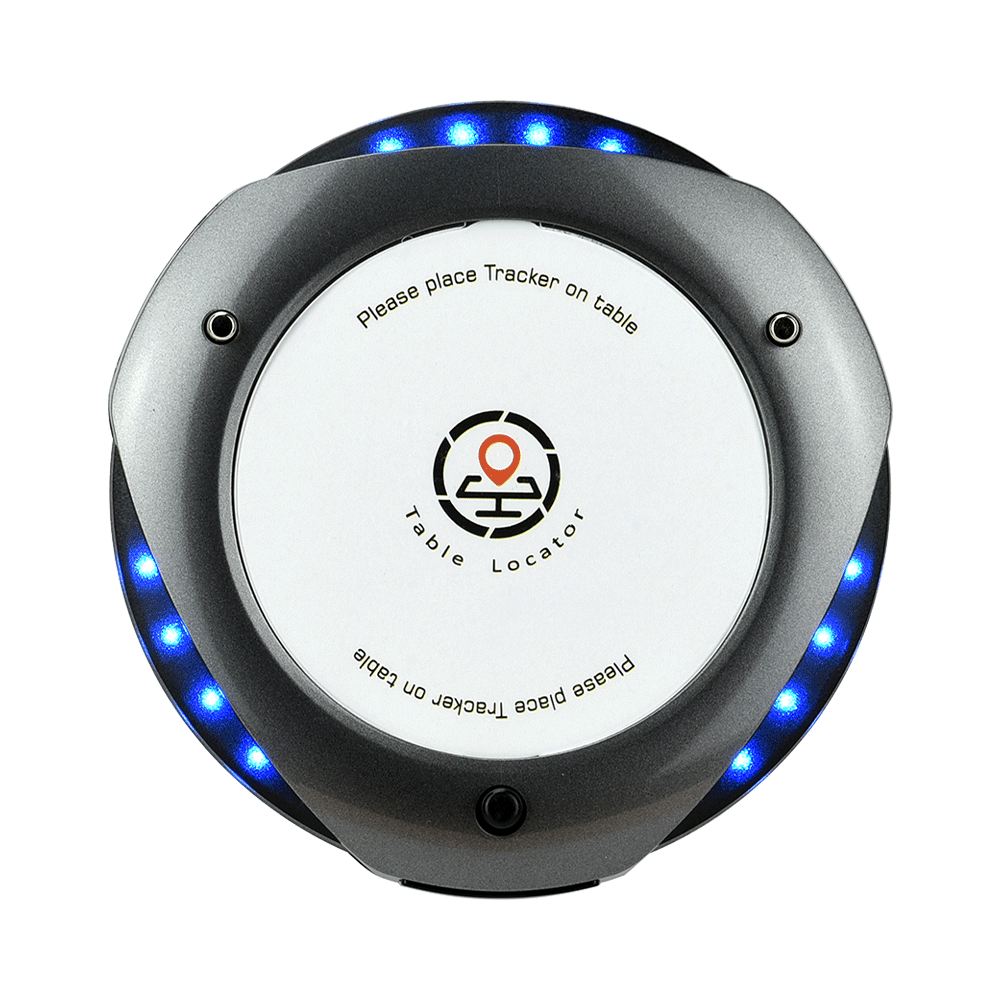

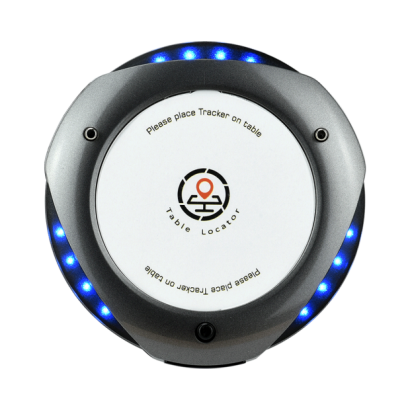

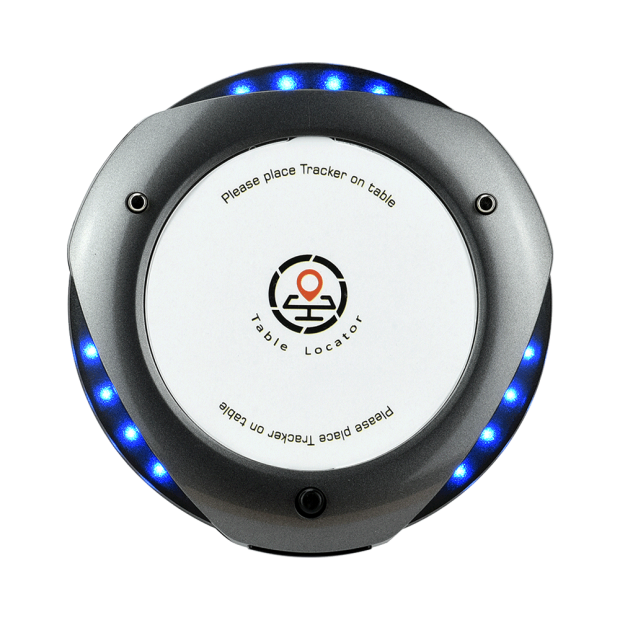

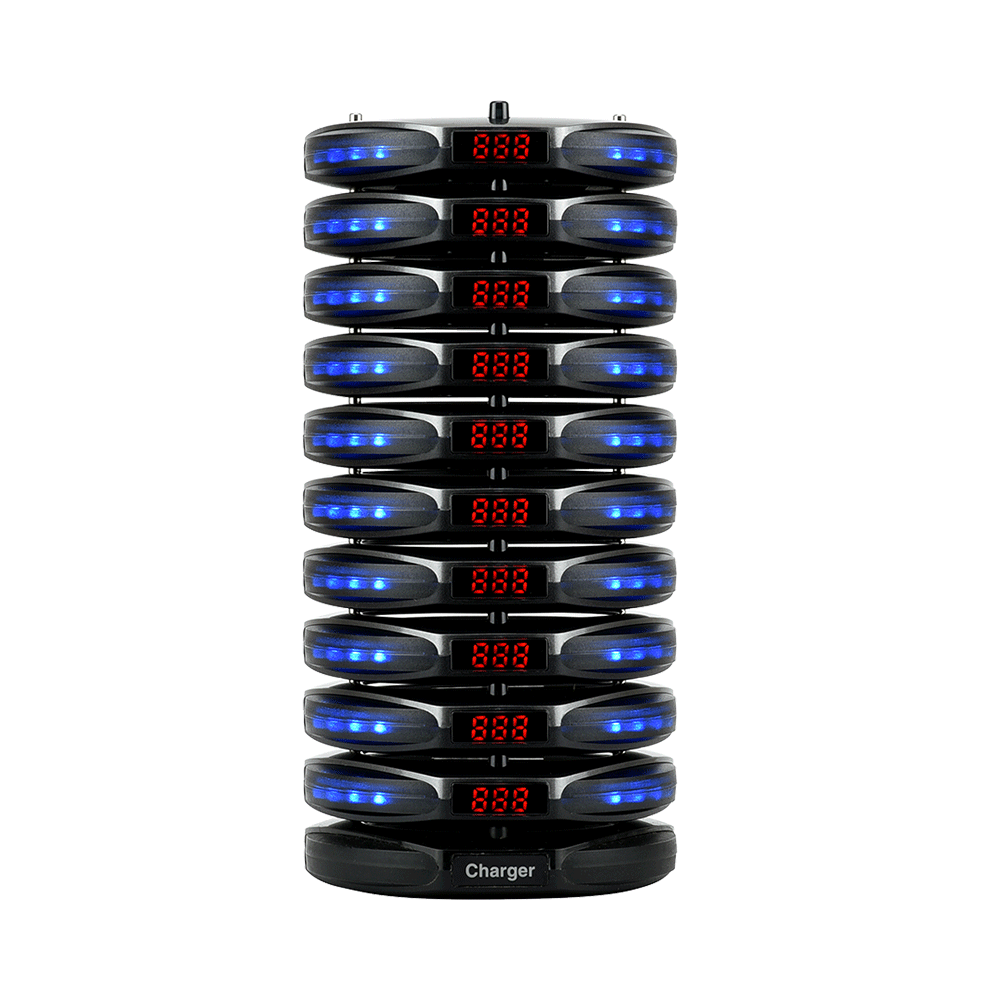

  • GP-02TL-1.png

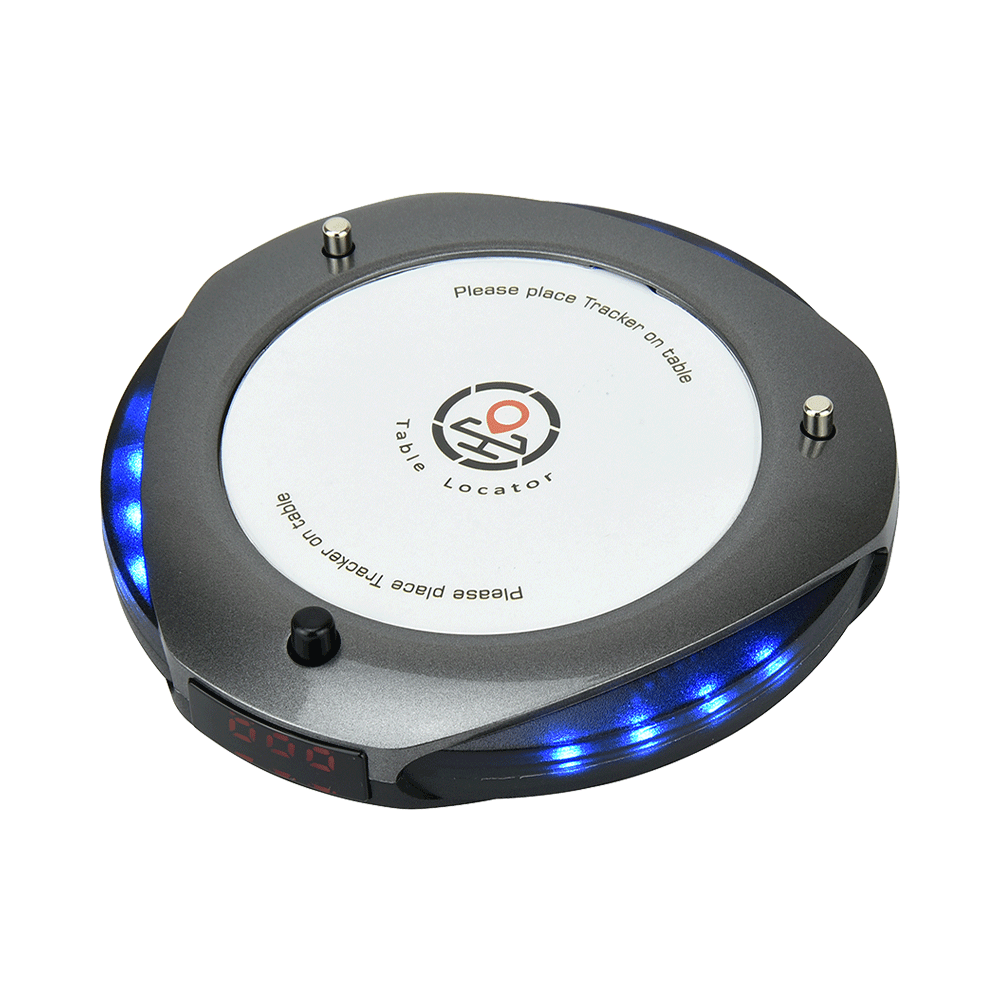

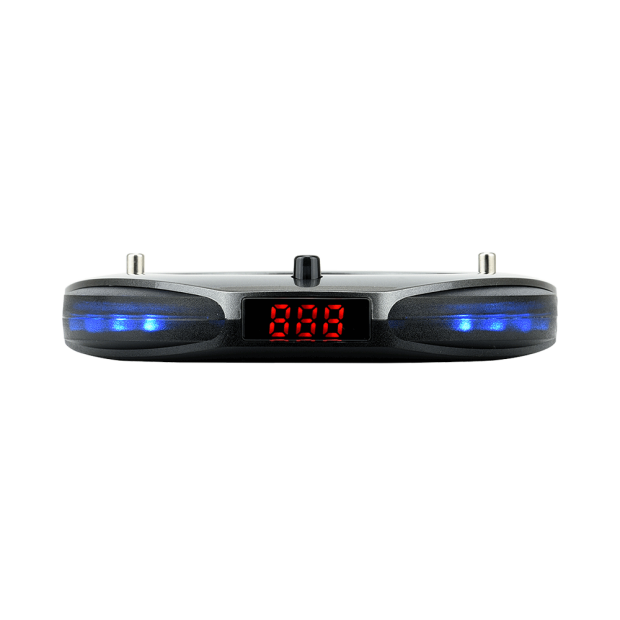

  • GP-02TL-2.png

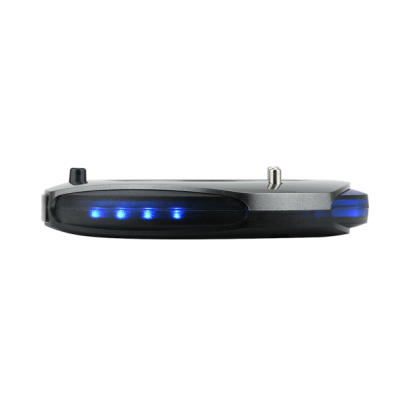

  • GP-02TL-3.png

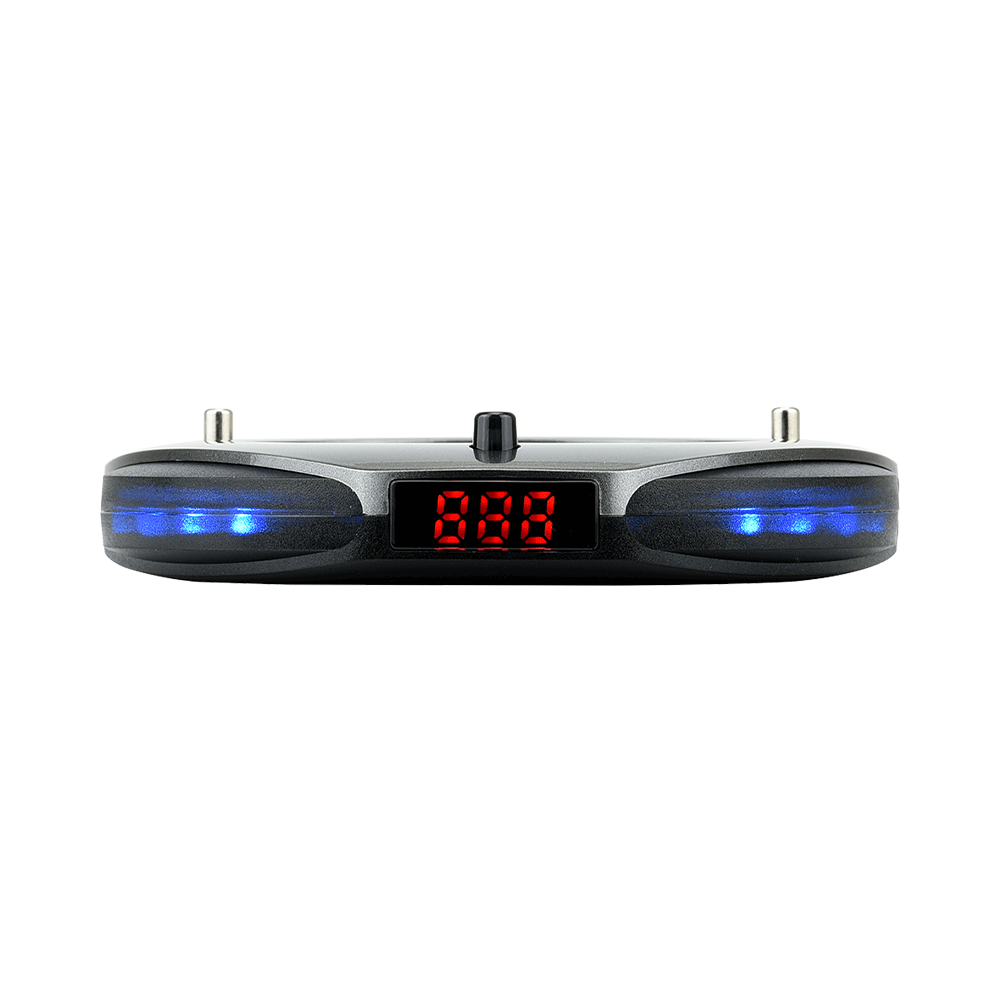

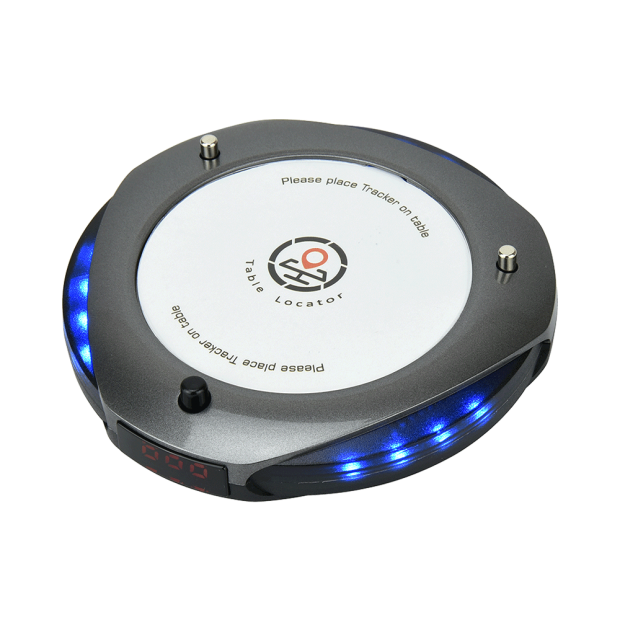

  • GP-02TL-4.png

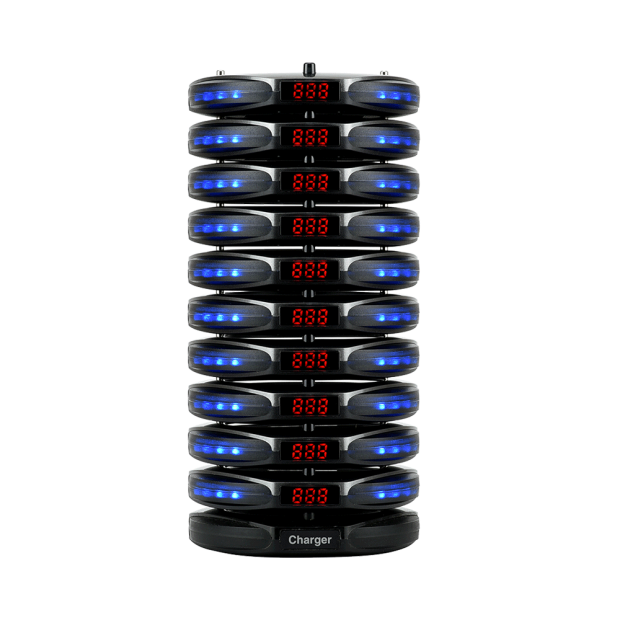

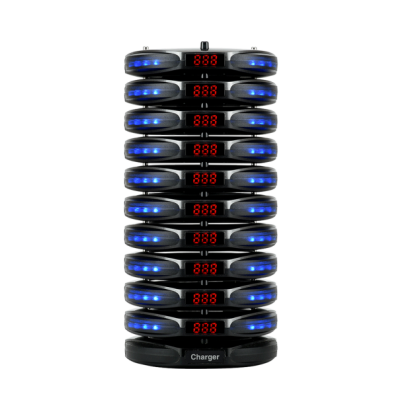

  • GP-02TL-5.png
DETAIL

GP-02 Table Locator Pager
Smart Positioning | Precise Delivery | Enhanced Customer Service Efficiency

ARCT’s TLS (Table Locator System) is tailor-made for fast-food and casual dining restaurants, delivering an intuitive and efficient smart food delivery solution that streamlines the customer experience and boosts operational efficiency.

After ordering, customers receive a table locator device. Once seated, they simply place the locator on the designated sensing area of the table, and the system automatically records their seating location. When the meal is ready, the backend display instantly shows the corresponding table number and zone, helping delivery staff quickly and accurately deliver orders without any need to search.

The TLS system combines minimalist design with reliable technology, making it suitable for a variety of dining environments. It creates a smarter, more organized dining process that significantly improves overall customer service experience.

Key Benefits

  • Flexible movement and real-time positioning: Updates customer location instantly if they change seats

  • Prevents delivery errors: Accurate positioning reduces human mistakes

  • Increases delivery efficiency: Staff spend less time searching, streamlining workflow

  • Optimizes customer experience: Smooth and convenient process from ordering to delivery

Features

  • UHF Band 429~460MHz

  • Rechargeable NiMH battery

  • Out-of-range alert function

  • Enlarged advertising area

  • Multiple alert modes (flash, vibration, sound)

  • Supports RFID programming

  • Up to 48 hours of usage per full charge

Specifications

  • Frequency: 429~460MHz

  • Transmission rate: 1200 bps

  • Modulation: FSK

  • Modulation bandwidth: +/- 25KHz

  • Communication protocol: ARCT Protocol

  • Sound level: 80dBa @10cm

  • Dimensions: 100 × 100 × 16.5 mm

  • Power input: 1.2V NiMH AAA × 1

  • Certifications: FCC, CE, NCC

  • Battery life: Up to 48 hours per full charge

  • RFID Tag: ISO 15693

  • RFID read distance: 10 cm
