GTX-01 Wireless Transmitter

GTX-01 Wireless Transmitter

Integrated Charging × Code Programming × Smart, Full-Function Operation

The GTX-01, developed by ARCT, is a versatile all-in-one transmitter platform that combines three essential functions: transmitter, receiver charging dock, and code programming unit. This highly integrated design delivers an efficient and streamlined solution for meal notification systems.
Users can quickly call the corresponding pagers through an intuitive numeric keypad, ensuring simple and fast operation with minimal learning curve.
/
/
/
/
/
/

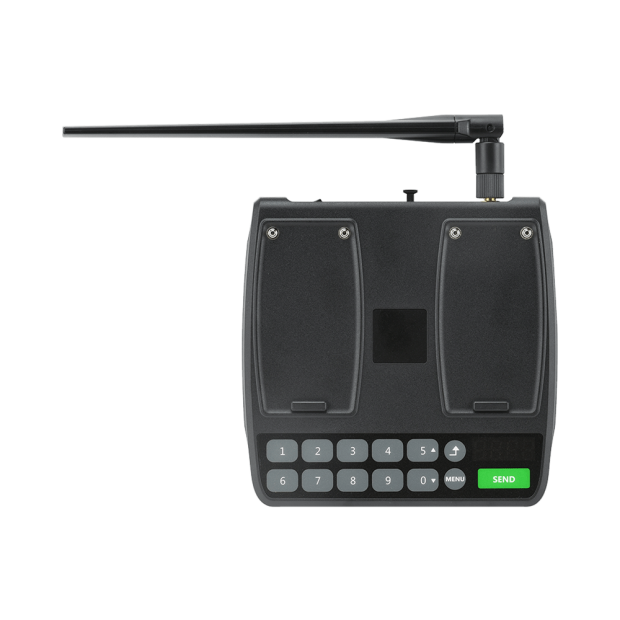

  • GTX-01-1.png

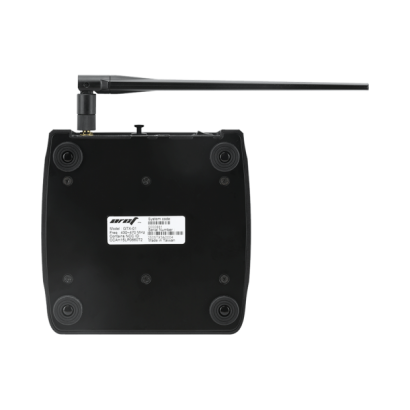

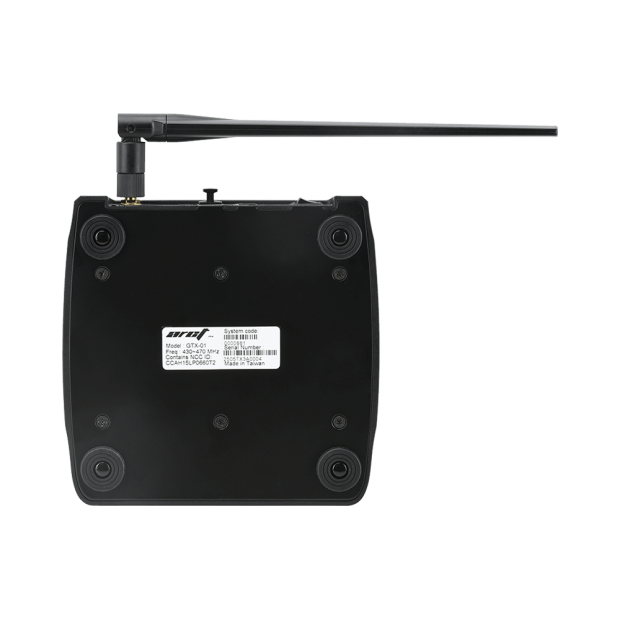

  • GTX-01-2.png

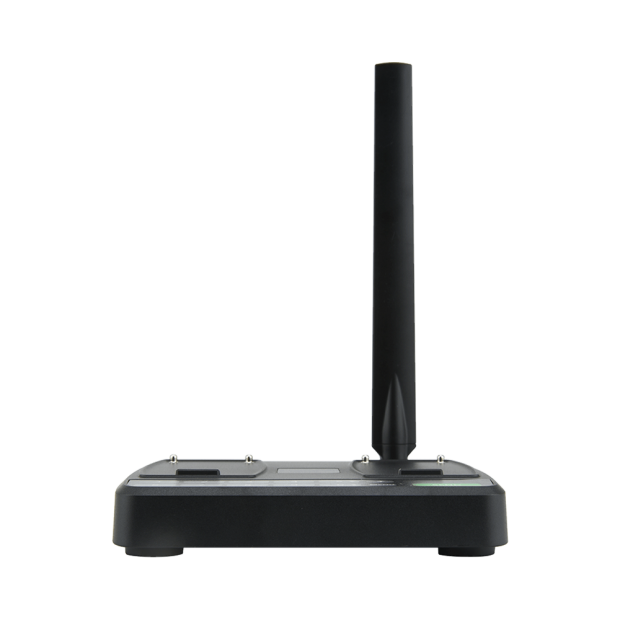

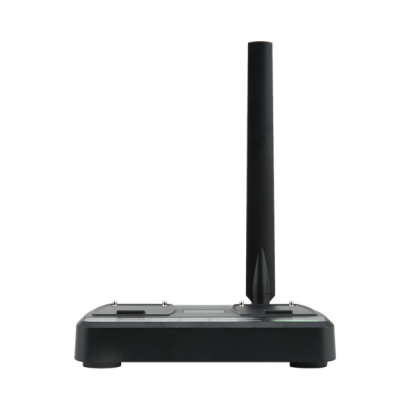

  • GTX-01-3.png

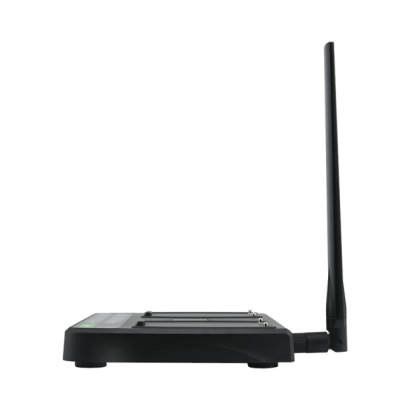

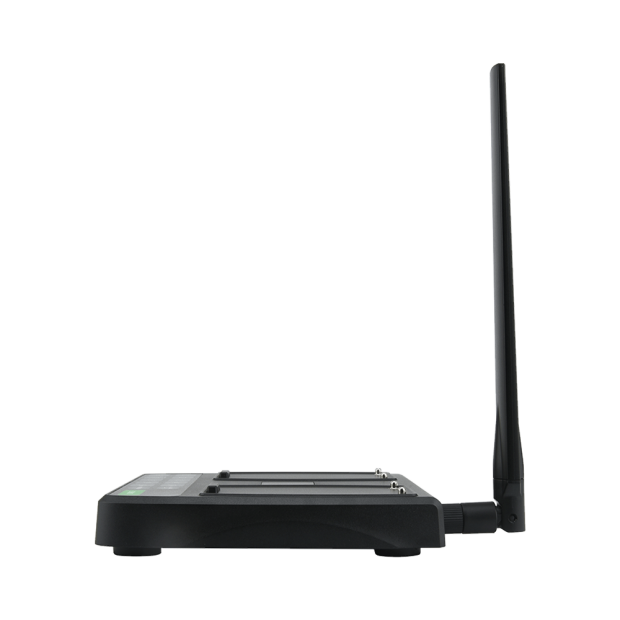

  • GTX-01-4.png

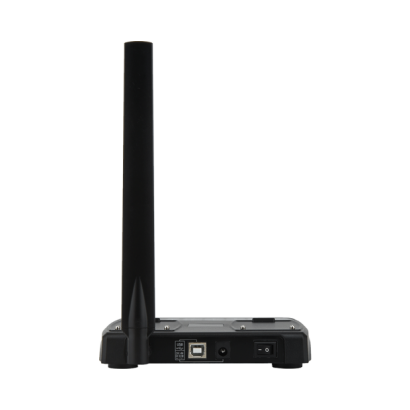

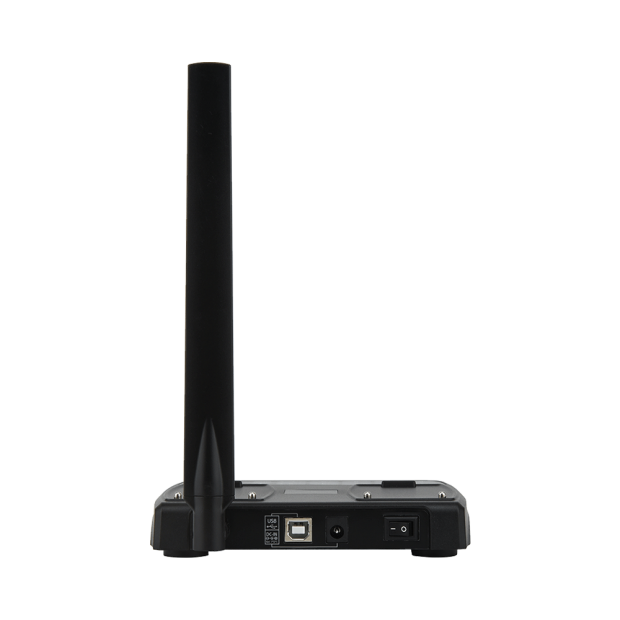

  • GTX-01-5.png

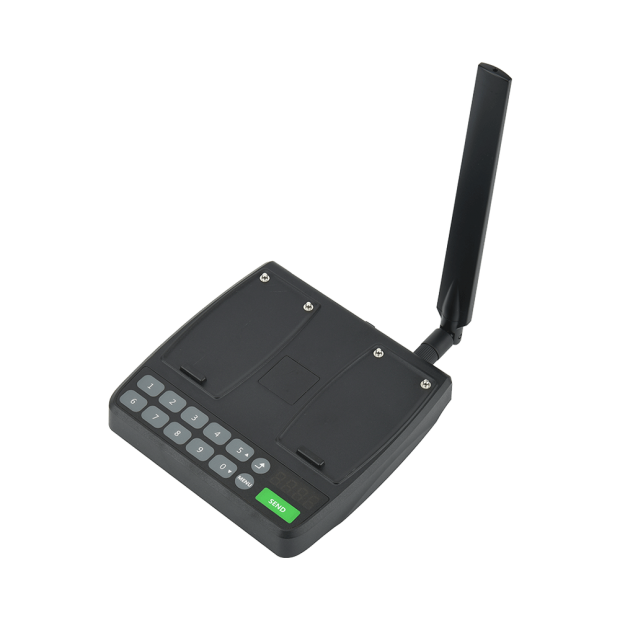

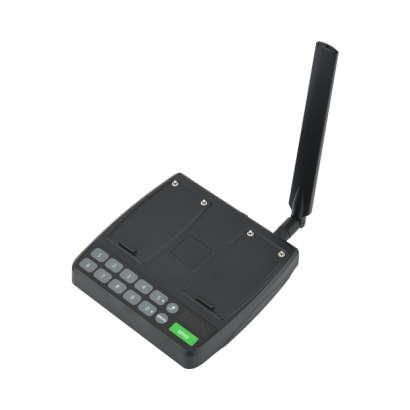

  • GTX-01-6.png
DETAIL

GTX-01 All-in-One Transmitter Platform
Integrated Charging × Code Programming × Smart Full-Function Operation

The GTX-01, developed by ARCT, is a versatile all-in-one transmitter platform that combines three core functions in one unit: transmitter, receiver charging dock, and code programming device. It provides a highly integrated, efficient solution for meal notification systems. Users can quickly call the corresponding pagers through an intuitive numeric keypad, enabling simple and fast operation.

Equipped with a built-in RFID reader interface, the GTX-01 allows quick pairing and programming of newly purchased pagers, simplifying system setup. It also supports remote calling and management via ARCT’s PC application, offering enhanced flexibility and scalability.

Designed specifically for medium to large dining environments, the GTX-01 delivers an all-in-one smart service workflow—from pairing and operation to charging—streamlining management and improving efficiency.

Key Advantages

  • Integrated charging dock for centralized pager charging—space-saving and easy management

  • Built-in code programming for fast pairing and deployment

  • RFID interface for effortless device expansion and enhanced system flexibility

  • Supports PC software operation via ARCT app for remote calling and management

  • Intuitive numeric keypad for quick calls with low operational learning curve

Features

  • Large LED display

  • Audible key press feedback

  • Splash-resistant surface design

  • Unique system codes to prevent interference between systems

  • Supports over-the-air code programming

  • Transmission range up to 1 km (line of sight)

  • POS system integration support

Specifications

  • Model: GTX-01

  • Frequency: 429~470 MHz

  • Transmit Power: 1 Watt

  • Communication Protocol: ARCT Protocol

  • Data Rate: 1200 bps

  • Modulation: FSK

  • Modulation Bandwidth: ±4.5 KHz

  • Channel Bandwidth: 25 KHz

  • Harmonic Suppression: Less than -25 dBm

  • Frequency Stability: ±2 ppm (-10°C to +60°C)

  • RF Connector: SMA (Female)

  • Volume: 70 dBA @ 10 cm

  • Current Consumption: Standby 10 mA; Transmit 800 mA

  • Power Input: 5V / 4A adapter

  • Dimensions: 145 mm (L) × 145 mm (W) × 28.5 mm (H)

  • Certifications: FCC, CE, NCC
