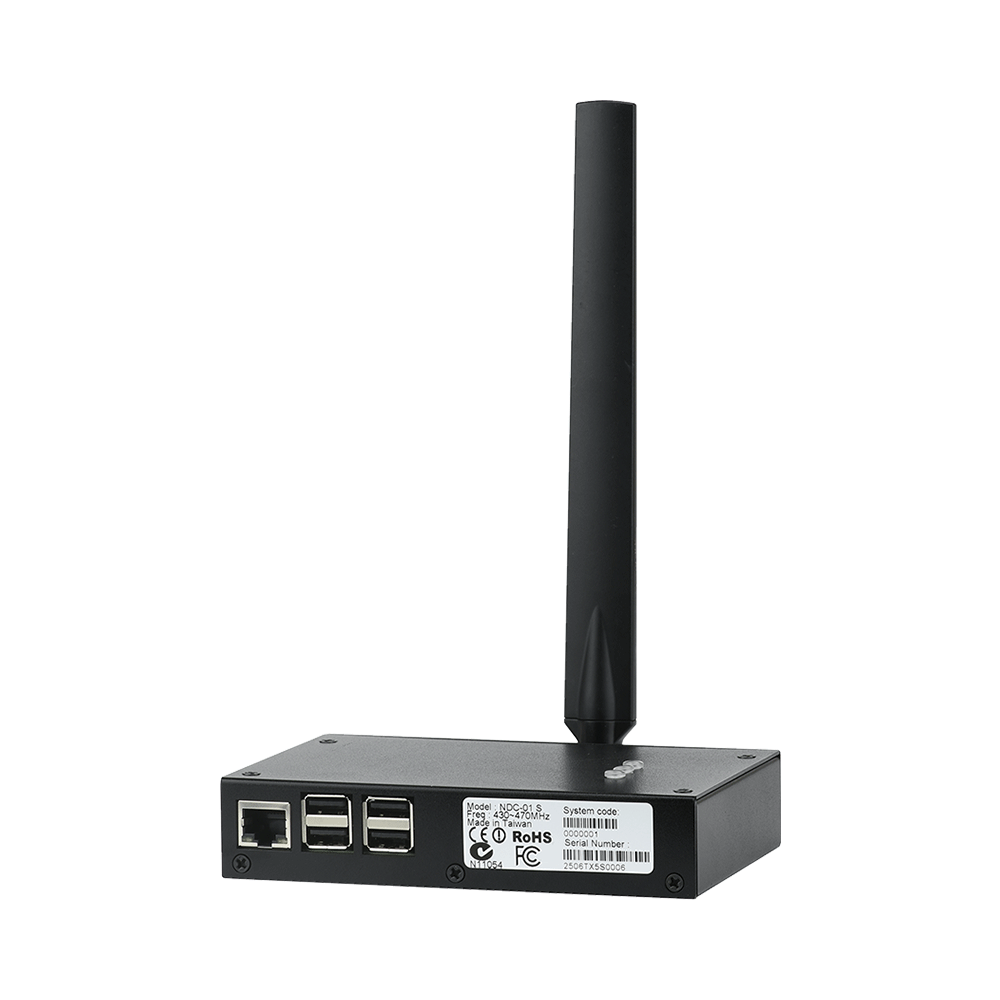

NDC-01 System Host

NDC-01 System Host

Integrated Linux Platform × Wireless Communication Core × Cross-Platform Support

The NDC-01 is an industrial-grade system host developed on a Linux operating system. It integrates a high-performance Linux motherboard with ARCT’s proprietary wireless communication module. Equipped with a built-in MySQL database and a user-friendly interface, the NDC-01 delivers a stable and highly scalable solution for diverse applications.
/
/
/
/
/
/

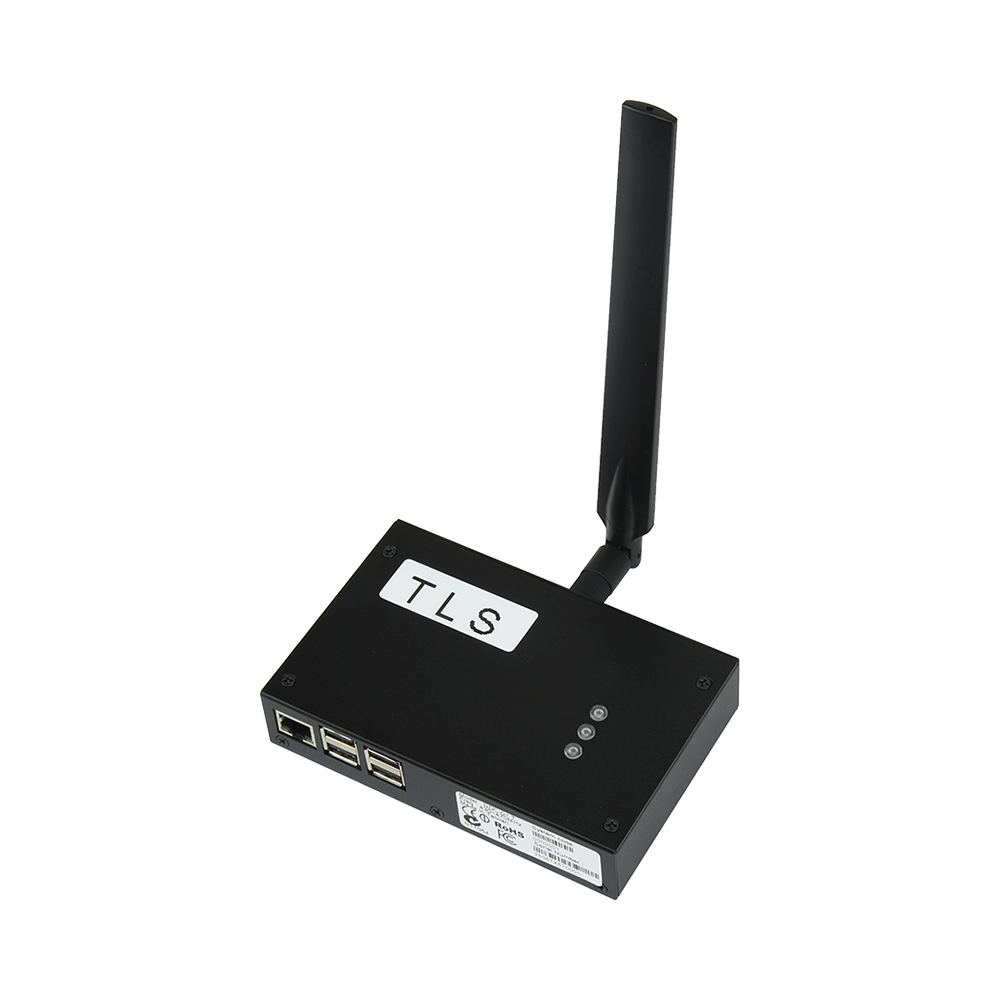

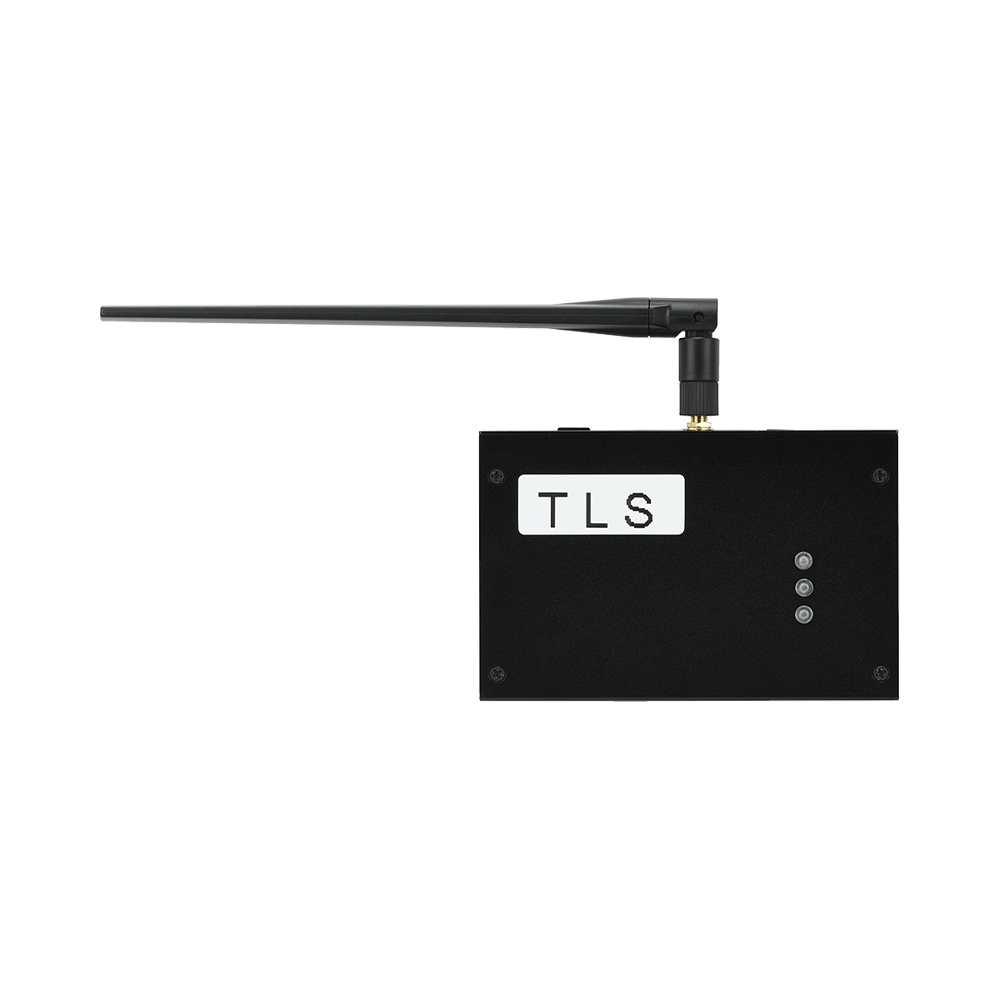

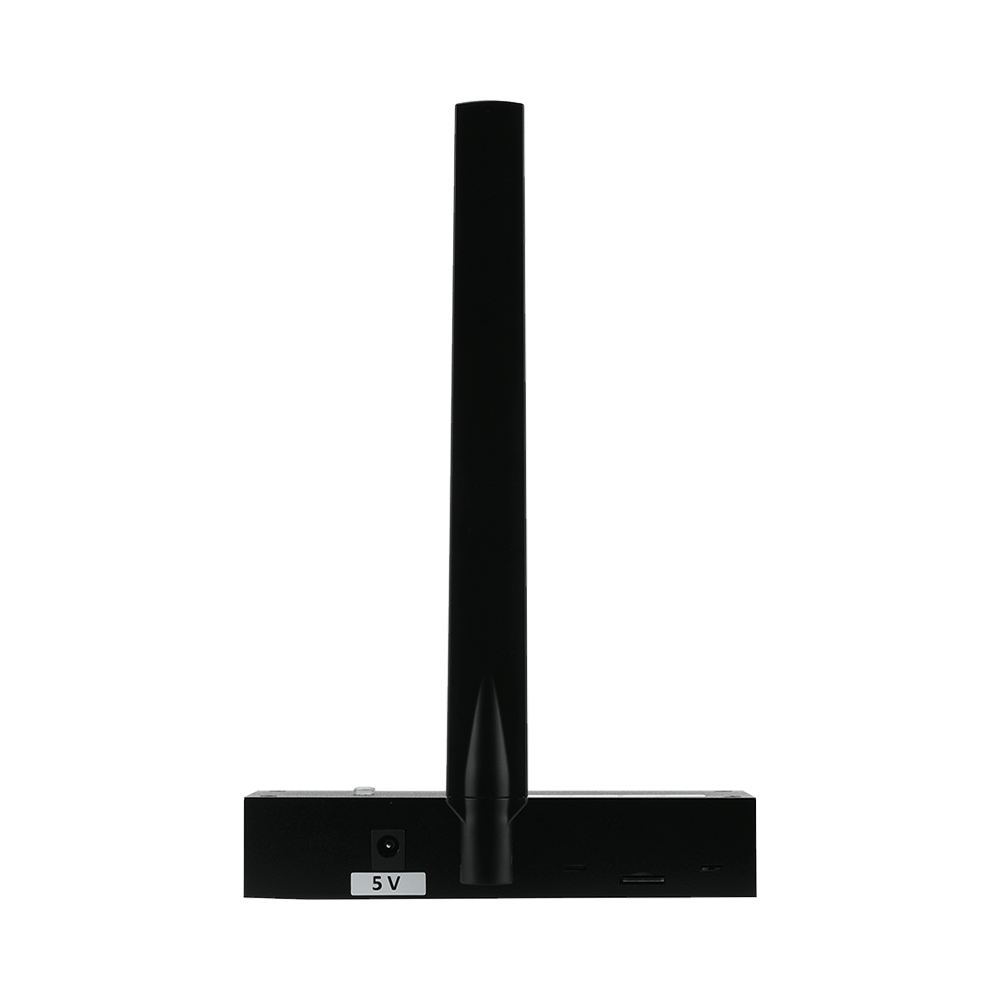

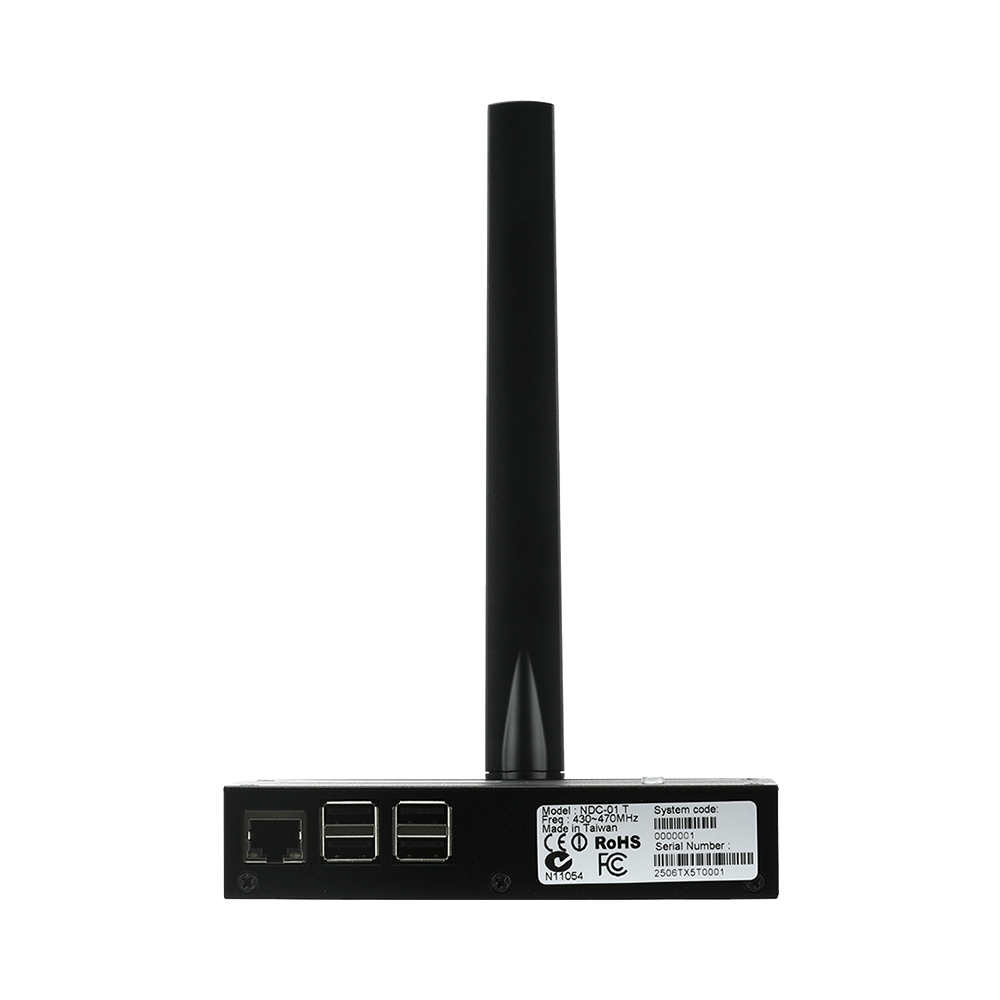

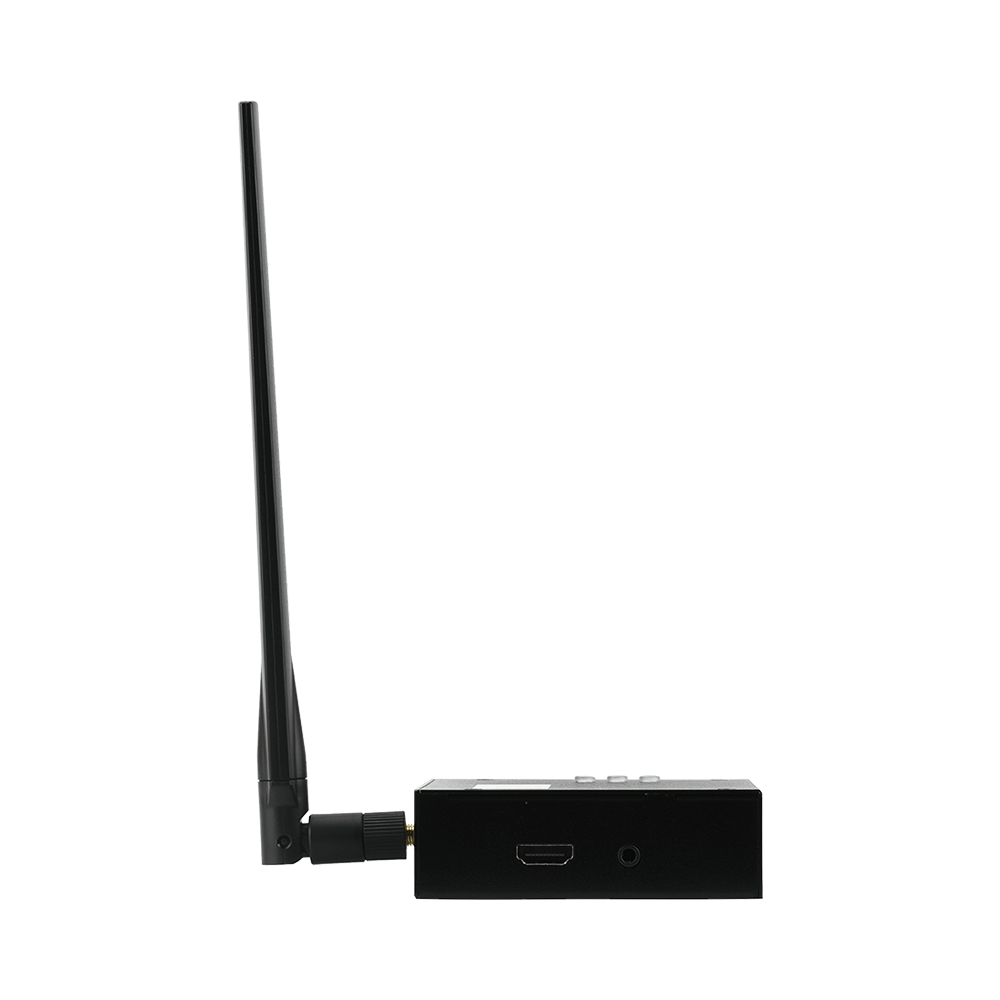

  • NDC-01-TLS-1.png
  • NDC-01-TLS-2.png
  • NDC-01-TLS-3.png
  • NDC-01-TLS-4.png
  • NDC-01-TLS-5.png
  • NDC-01-TLS-6.png
DETAIL

NDC-01 System Host
A streamlined industrial computer serving as the core platform for various ARCT systems, including:

  • TLS (Table Locator System)

  • SCS (Service Call System)

  • And many other intelligent application scenarios

Users can quickly access the system interface via any device (smartphone, tablet, PC, or laptop) by entering the NDC-01’s IP address in a browser—no additional app installation needed. The interface is simple and intuitive.

Key Advantages

  • Stable and reliable Linux-based architecture

  • Built-in ARCT wireless communication module for fast connectivity

  • MySQL database support for efficient data management and storage

  • Cross-platform browser access, compatible with multiple device types

  • Modular design for easy integration with various ARCT systems

NDC-01 RF Specifications

  • Frequency: 429–470 MHz

  • Data Rate: 1200 / 9600 / 12000 bps

  • Modulation: FSK

  • Output Power: 0.1 Watt

  • Deviation: ±4.5 kHz, ±9.6 kHz, ±12 kHz

  • Channel Bandwidth: 25 kHz, 50 kHz, 200 kHz

  • RF Output Connector: SMA (Female)

  • Frequency Stability: ±2 ppm (-10°C to +60°C)

  • Power Consumption: Standby 200 mA; Transmit 500 mA

  • Power Supply: 5 V / 3 A

  • Operating Environment: 0°C to +50°C; 20% to 90% RH (non-condensing)

  • Dimensions: 138 mm (W) × 90 mm (D) × 30 mm (H)

  • Weight: 450 g (excluding power adapter)

Mainboard Specifications

  • SoC: Broadcom BCM2387B0 chipset

  • CPU: 1.4 GHz Quad-Core ARM Cortex-A53 (64-bit)

  • GPU: Dual Core VideoCore IV multimedia co-processor supporting OpenGL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 decode

  • Memory: 1 GB LPDDR2 (shared with GPU)

  • Video Outputs: Composite RCA, HDMI

  • Audio Output: 3.5 mm jack, HDMI (1.3 & 1.4)

  • USB: 4 × USB 2.0 ports

  • Ethernet: Gigabit Ethernet over USB 2.0 (max throughput 300 Mbps)
