NDC-01 + 4 Relay System Host

NDC-01 + 4 Relay System Host

Integrated Linux Platform × Wireless Communication Core × 4-Channel Relay Control × Cross-Platform Operation Support

The NDC-01 + 4 Relay is an industrial-grade intelligent system host developed on a Linux operating system. It combines a high-performance Linux mainboard, ARCT’s proprietary wireless communication module, and four external relay control modules capable of managing four-color indicator lights to provide real-time system status display.
On the software side, the host features a built-in MySQL database and a graphical user interface, delivering high stability and flexible scalability. This makes it adaptable for diverse ARCT system applications.
/
/
/
/
/
/

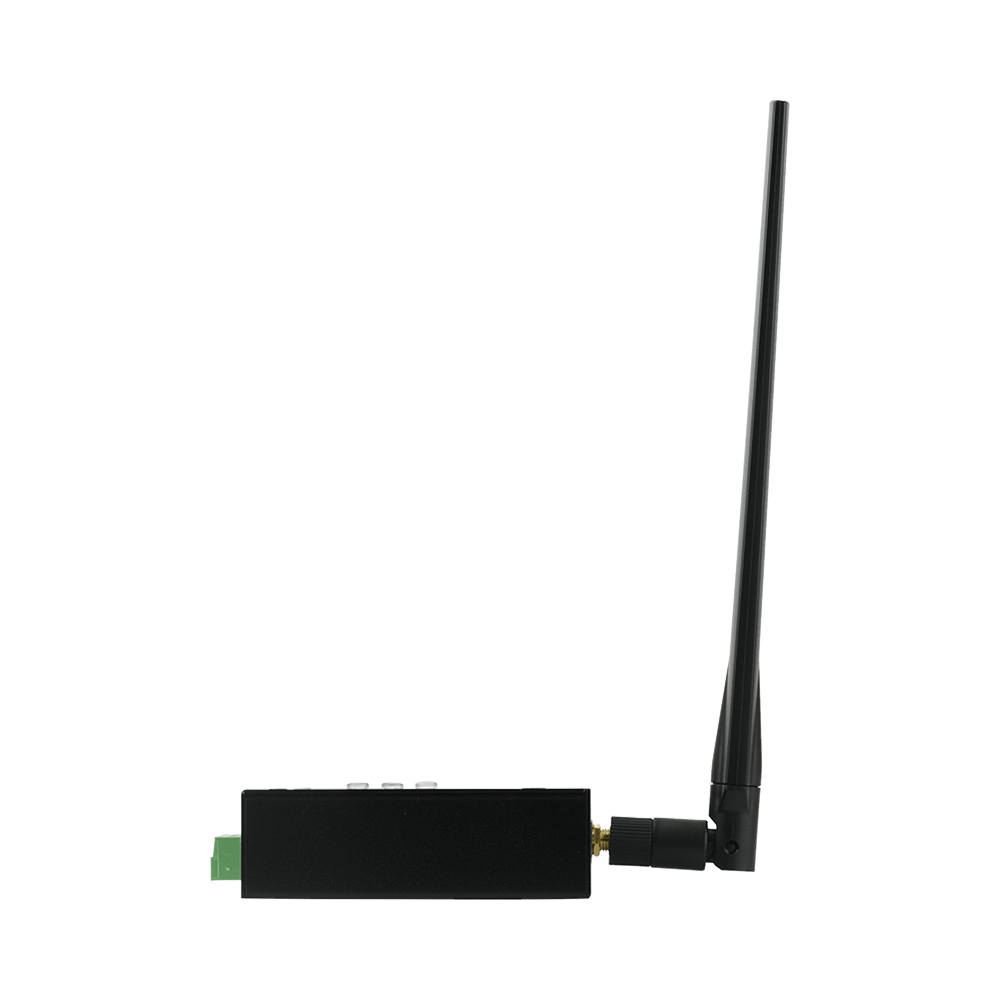

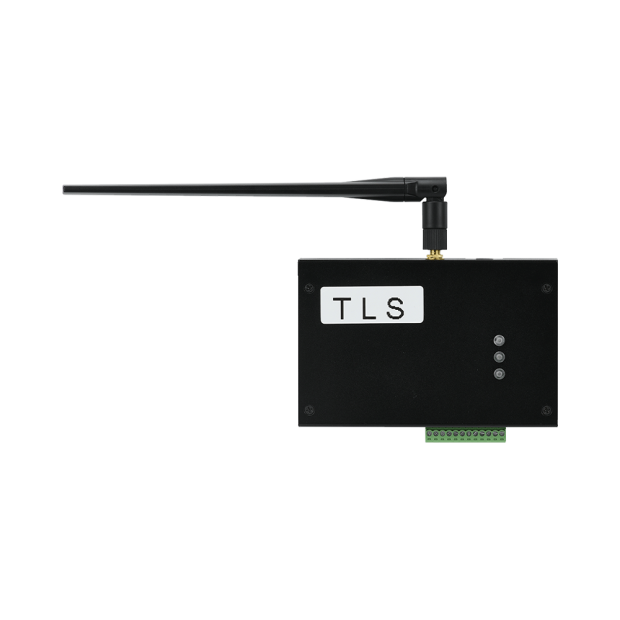

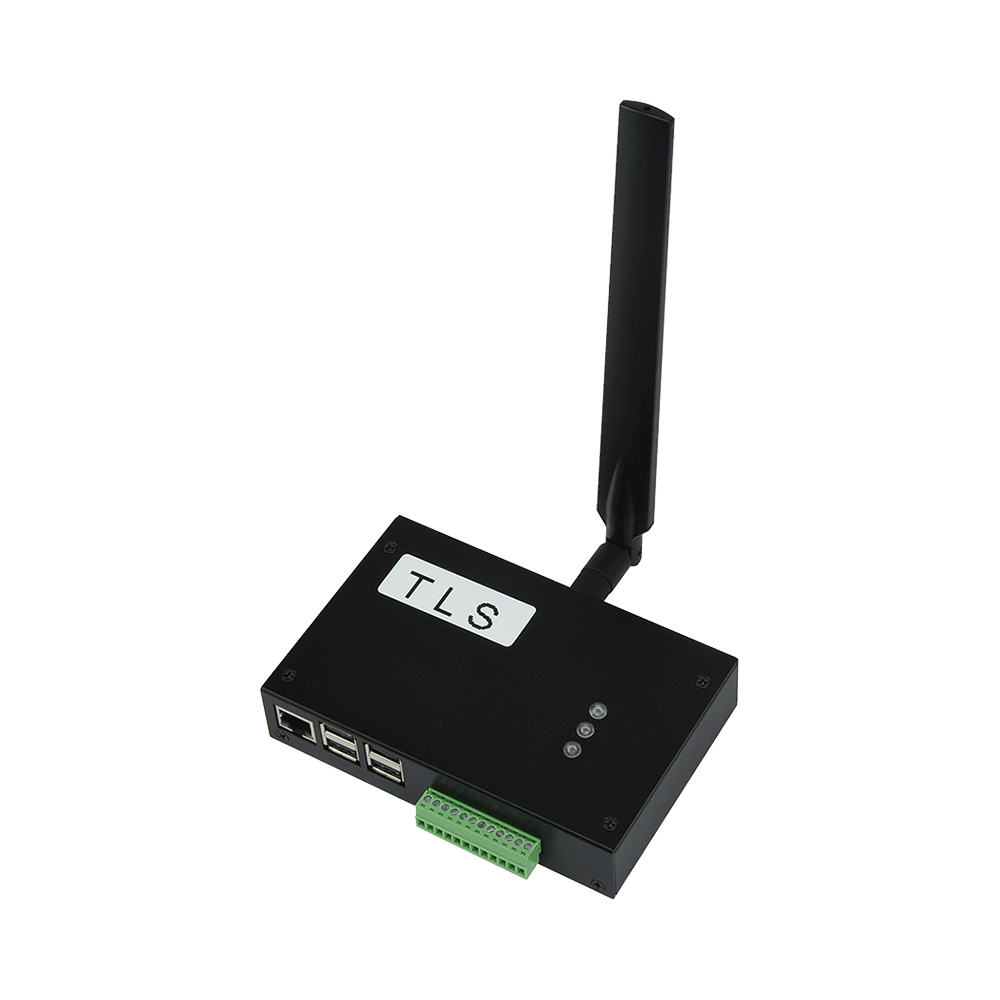

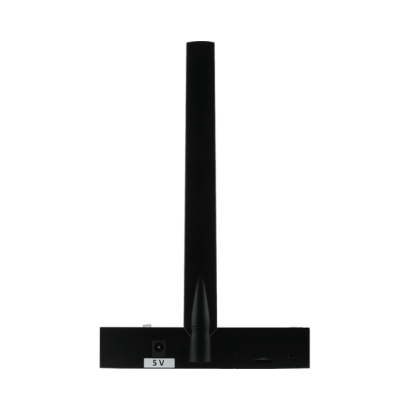

  • NDC-01-Relay-1.png

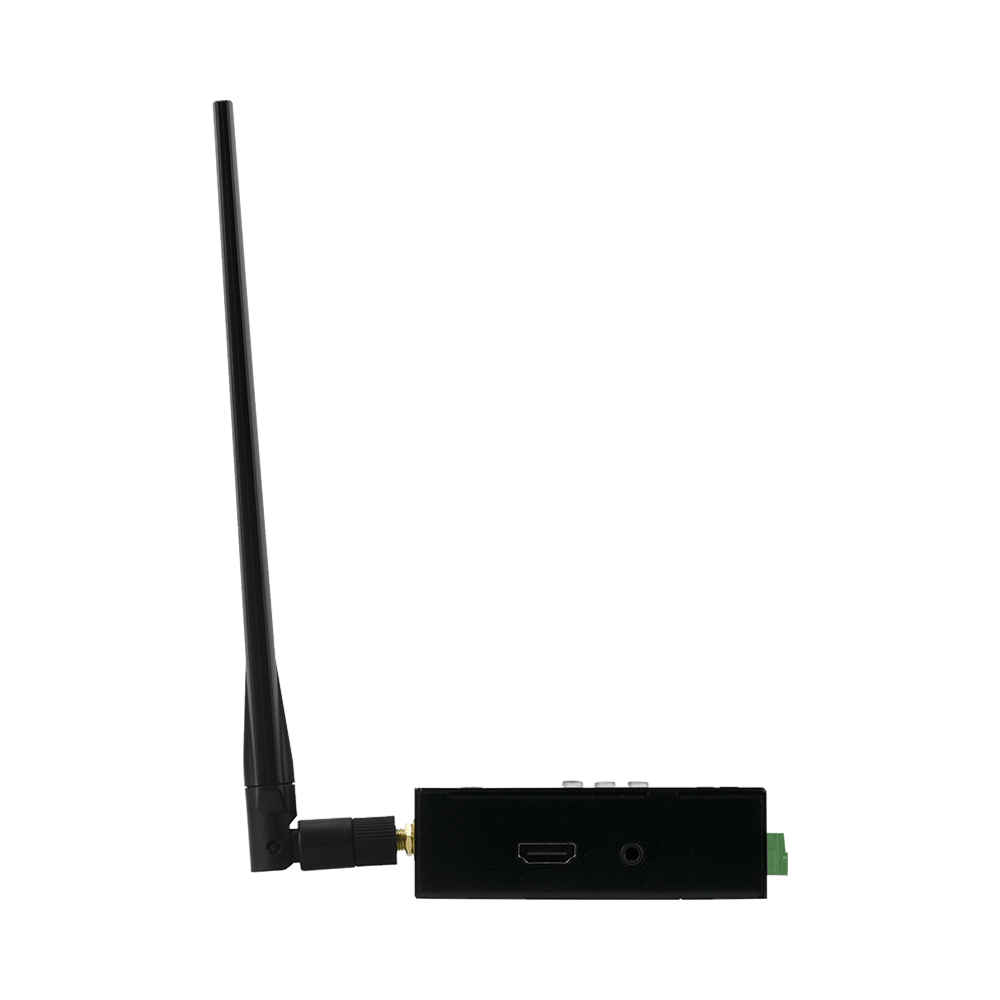

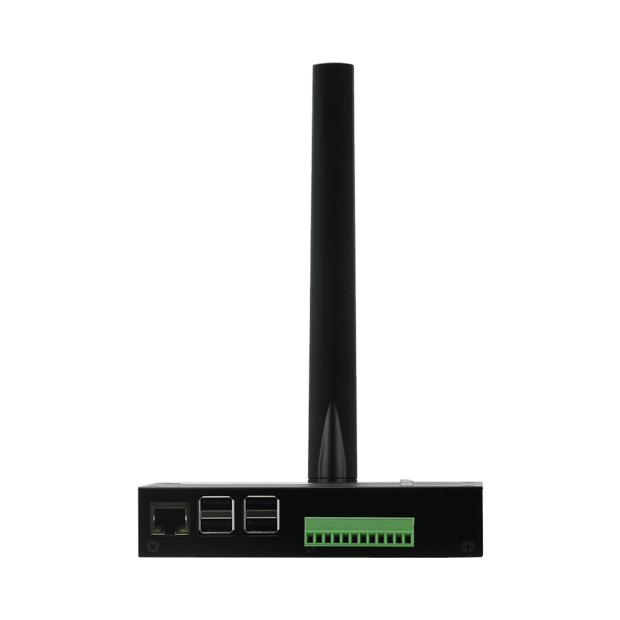

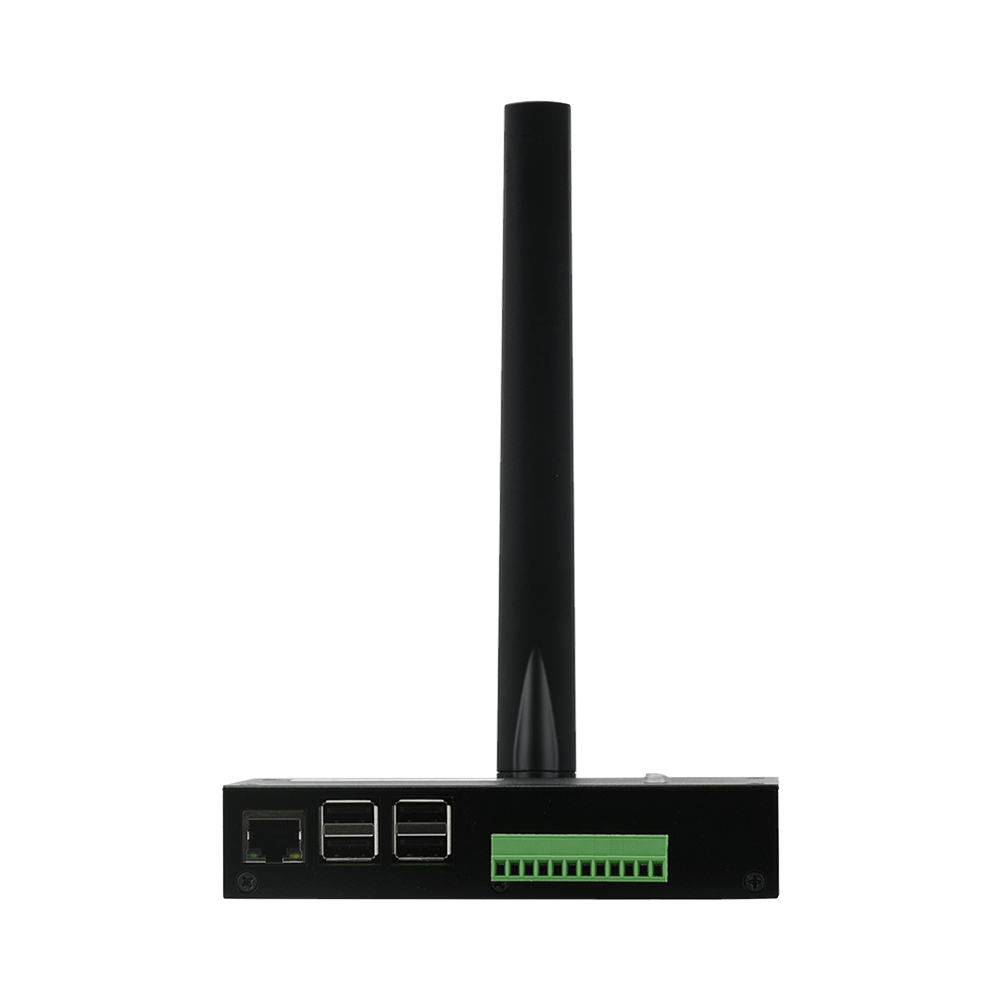

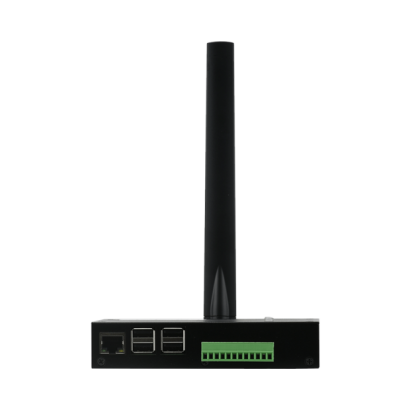

  • NDC-01-Relay-2.png

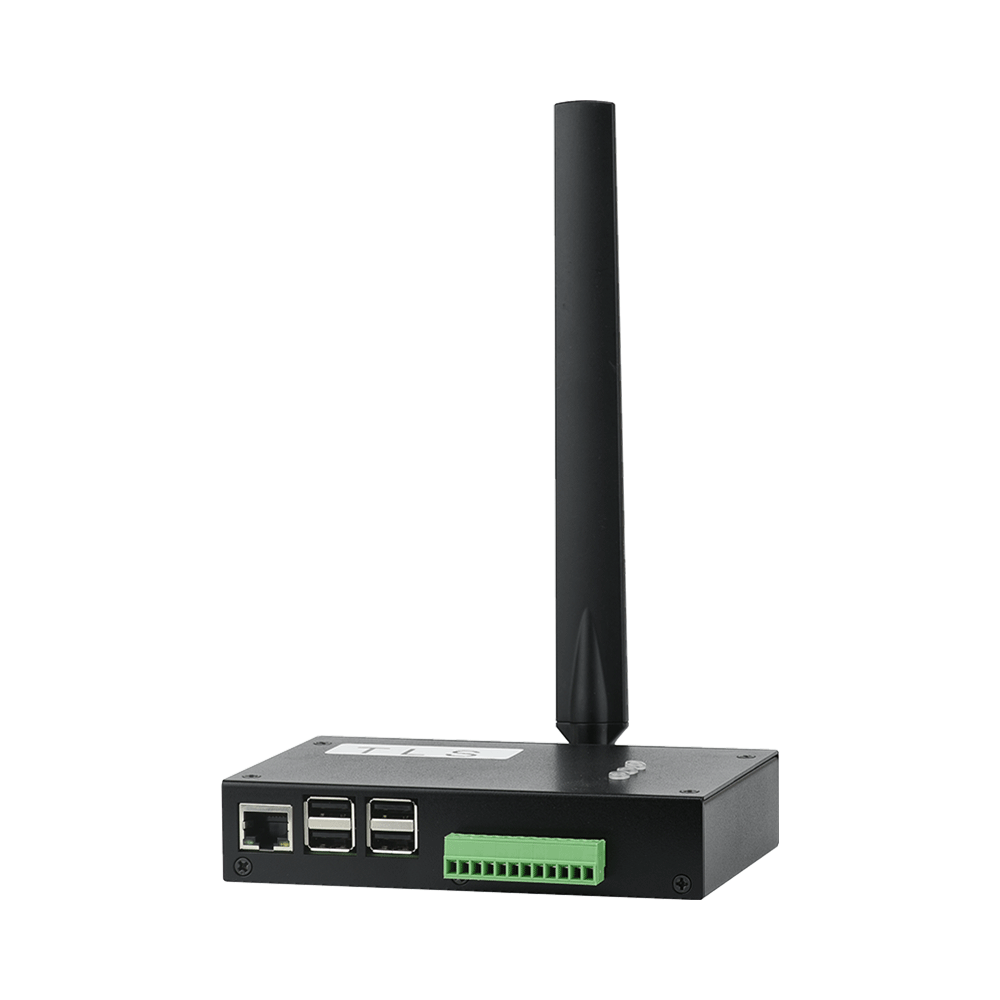

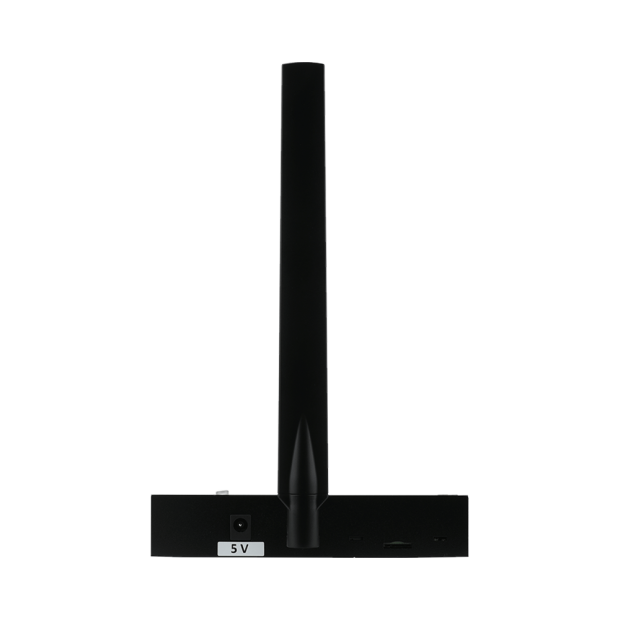

  • NDC-01-Relay-3.png

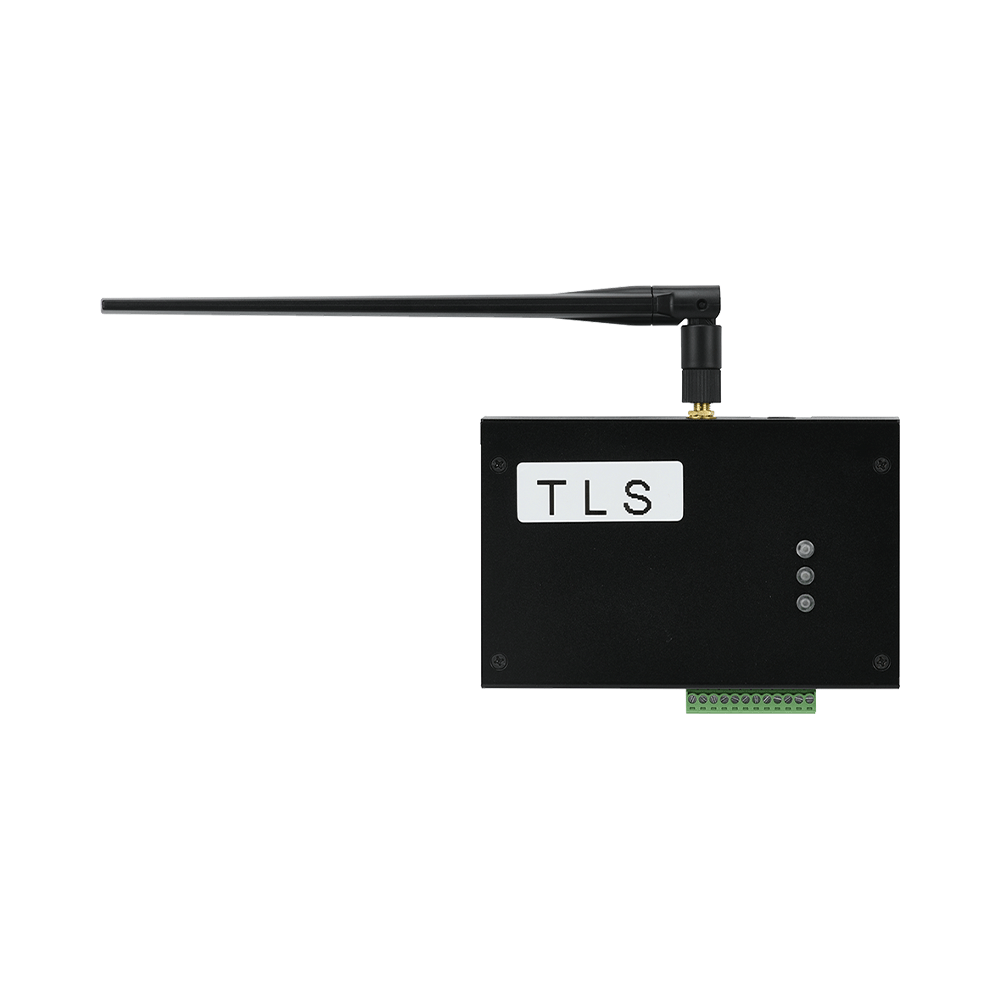

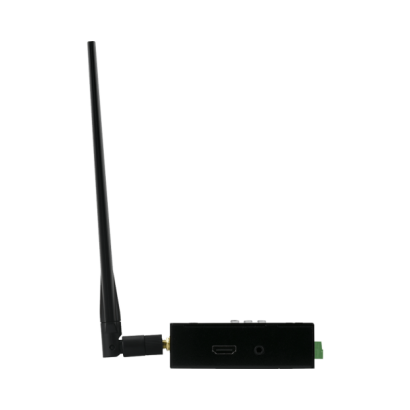

  • NDC-01-Relay-4.png

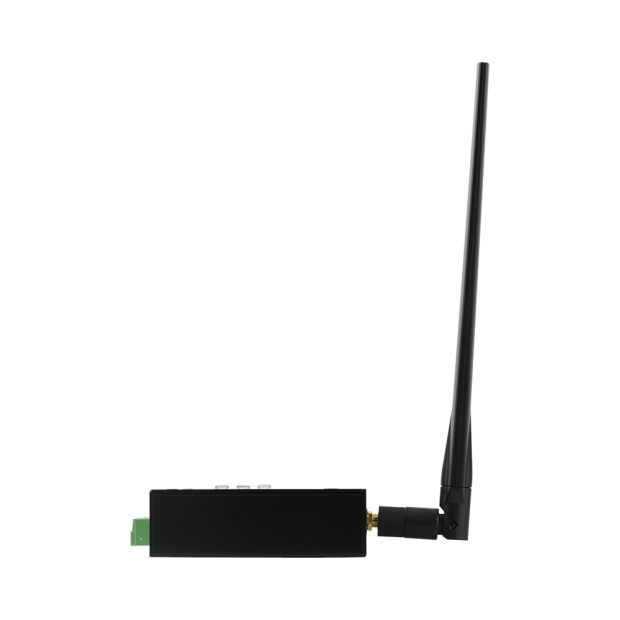

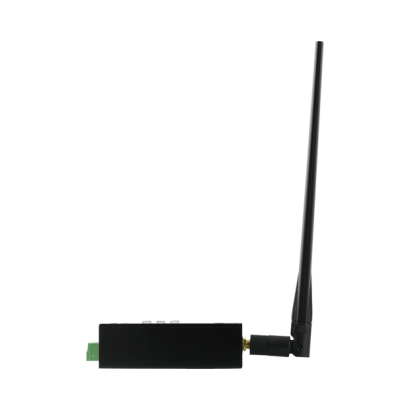

  • NDC-01-Relay-5.png

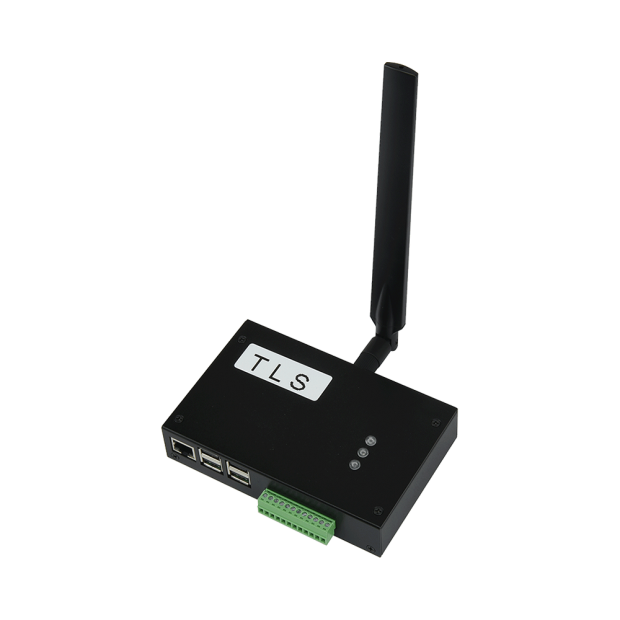

  • NDC-01-Relay-7.png
DETAIL

NDC-01Pro + 4 Relay System Host

The NDC-01Pro + 4 Relay functions as an industrial-grade computer and serves as the core platform for various ARCT systems, supporting applications including:

  • PTL (Pick to Light) Intelligent Picking System

  • DPS (Digital Picking System)

Users can quickly access the system interface by entering the NDC-01’s IP address into a web browser on any smartphone, tablet, laptop, or desktop computer—no additional app installation required. The interface is simple and intuitive.

Product Advantages

  • Stable and reliable Linux-based architecture

  • Built-in ARCT wireless communication module for fast connectivity

  • Four relay output channels to control indicator lights or external devices, clearly reflecting operational status

  • MySQL database support for efficient data management and storage

  • Cross-platform browser operation accessible from mobile devices and computers

  • Modular design for seamless integration with various ARCT systems

NDC-01 + 4 Relay RF Specifications

  • Frequency: 429–470 MHz

  • Data Rate: 10 kbps

  • Modulation: FSK

  • Output Power: 0.1 Watt

  • Modulation Bandwidth: ±10 kHz

  • Channel Bandwidth: 100 kHz

  • Relay Switching Voltage: 250 VAC, 220 VDC

  • Maximum Relay Load: 500 VA, 440 W

  • RF Output Connector: SMA (Female)

  • Frequency Stability: 2 ppm at -10℃ to +60℃

  • Power Consumption: Standby 200 mA; Transmit 500 mA

  • Operating Environment: 0℃ to +50℃, 20%–90% RH (non-condensing)

  • Power Supply: 5 V / 3 A

  • Dimensions: 138 (W) × 90 (D) × 30 (H) mm

  • Weight: 450 g (excluding power adapter)

Mainboard Specifications

  • SoC: Broadcom BCM2387B0

  • CPU: Quad-core ARM Cortex-A53 (ARMv8) 64-bit @ 1.4 GHz

  • GPU: Broadcom VideoCore-IV

  • Memory: 1 GB LPDDR2 SDRAM

  • Video Output: Composite RCA, HDMI

  • USB Ports: USB 2.0 × 4

  • Ethernet: Gigabit Ethernet over USB 2.0 (max throughput 300 Mbps)

  • Audio Output: 3.5 mm jack, HDMI (1.3 & 1.4)
