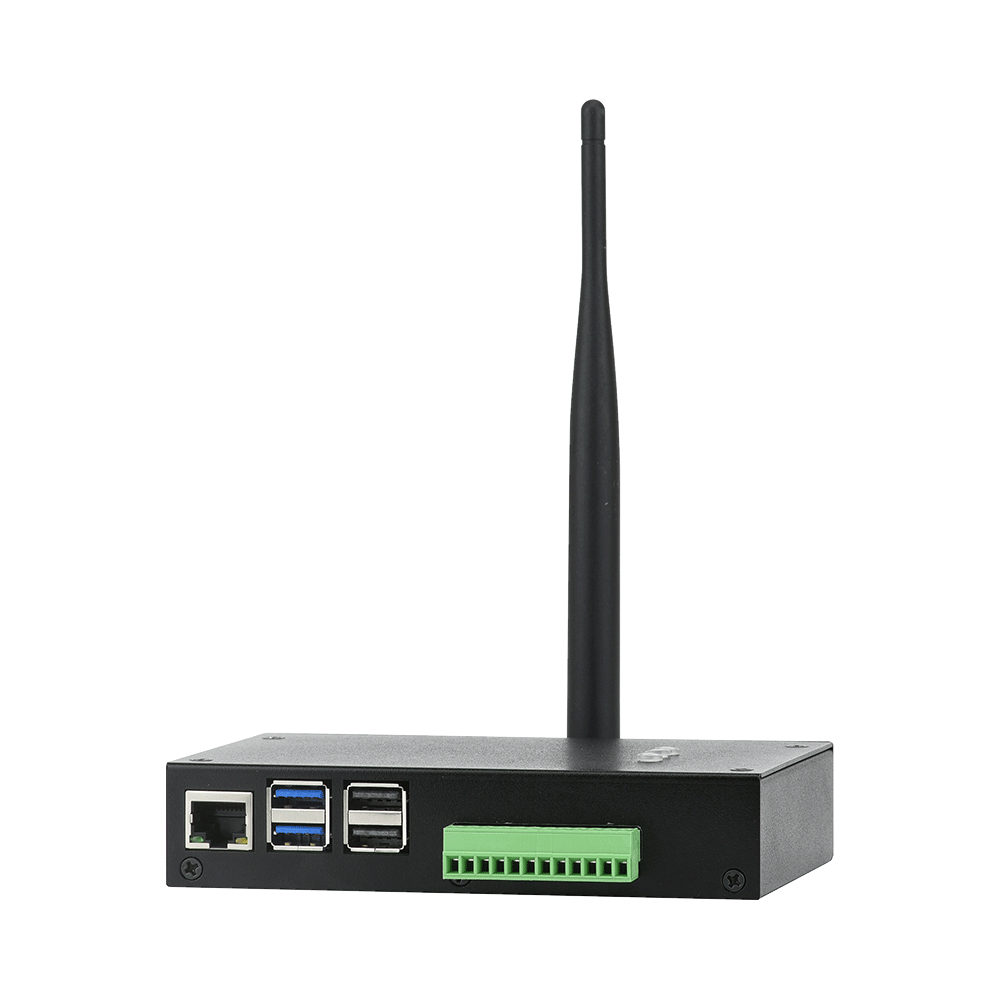

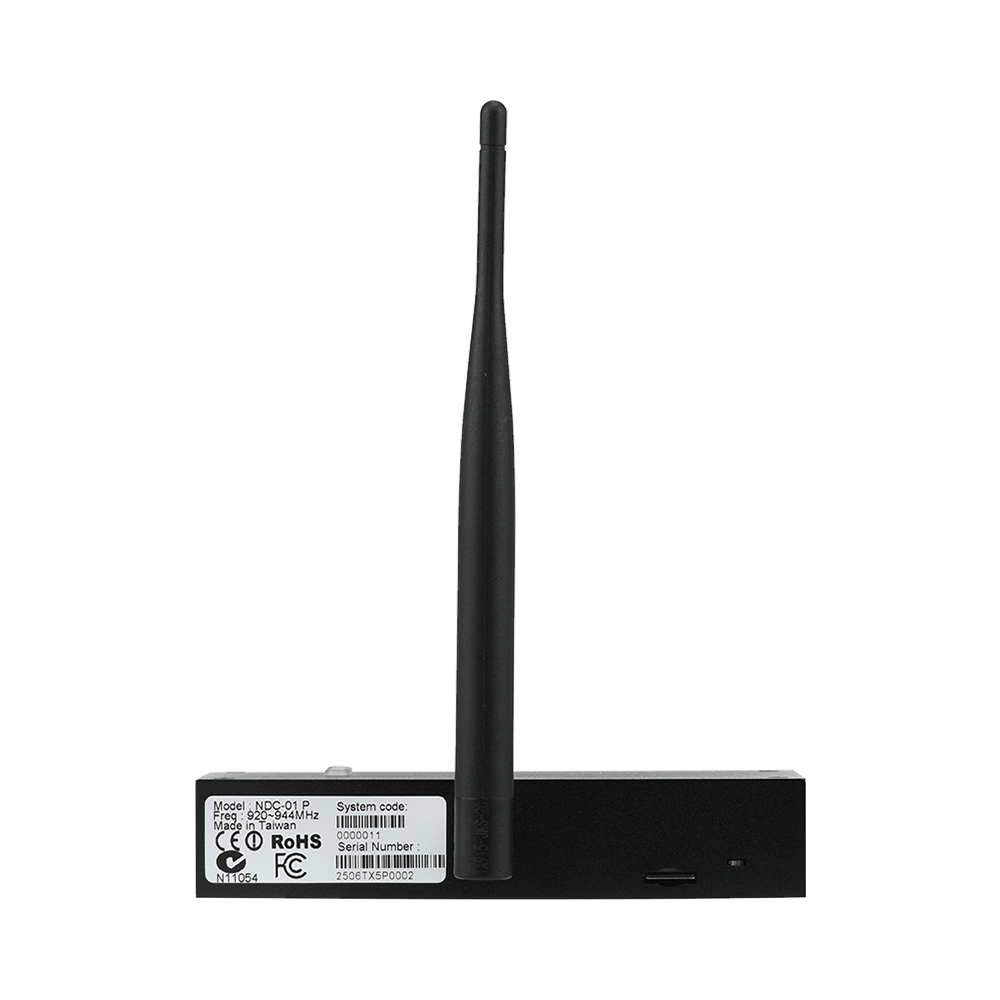

NDC-01 Pro + 4 Relay System Host

NDC-01 Pro + 4 Relay System Host

Integrated Linux Platform × Wireless Communication Core × 4 Relay Controls × Cross-Platform Operation Support

The NDC-01 Pro + 4 Relay is an industrial-grade smart host developed on a Linux operating system. It combines a high-performance Linux mainboard, ARCT’s proprietary wireless communication module, and 4 external relay control modules capable of managing 4-color indicator lights to display real-time system status.
On the software side, the host features a built-in MySQL database and a graphical user interface, offering high stability and flexible scalability. It can be flexibly applied across various ARCT system scenarios.

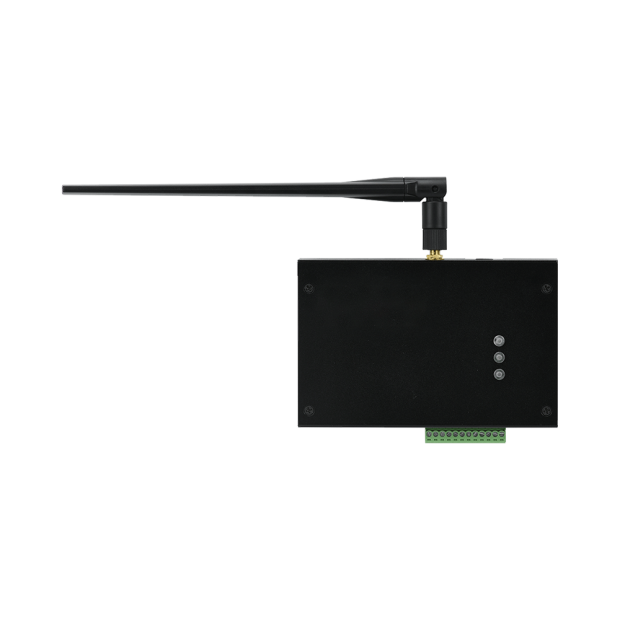

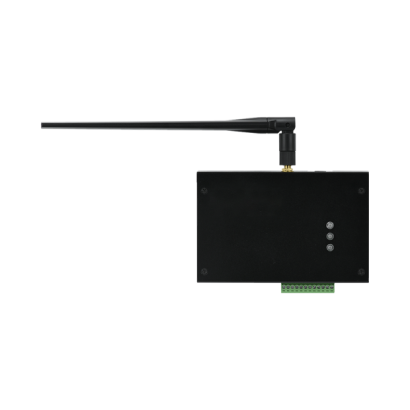

NDC-01-Pro_4 Relay-1.png
/
NDC-01-Pro_4 Relay-2.png
/

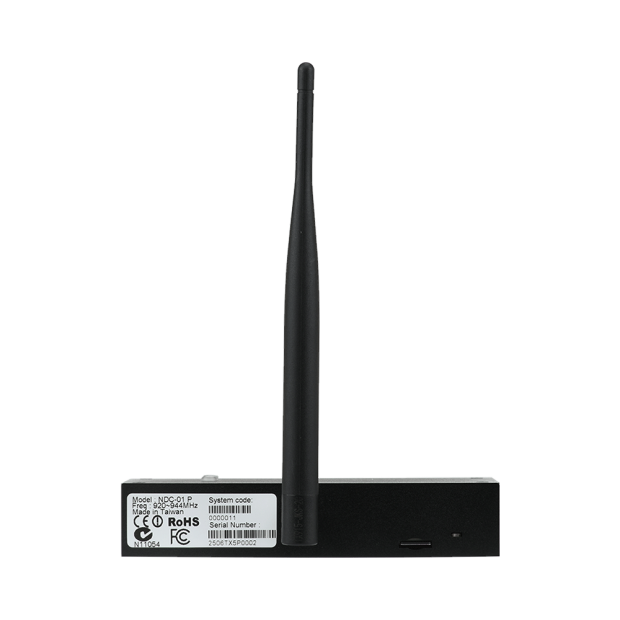

NDC-01-Pro_4 Relay-3.png
/

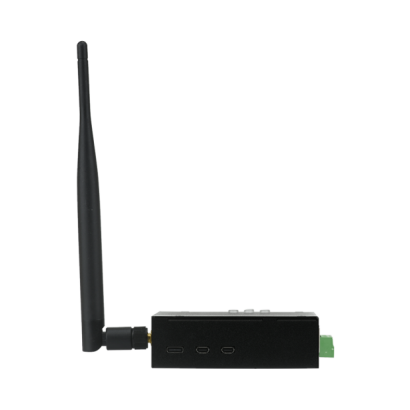

NDC-01-Pro_4 Relay-4.png
/

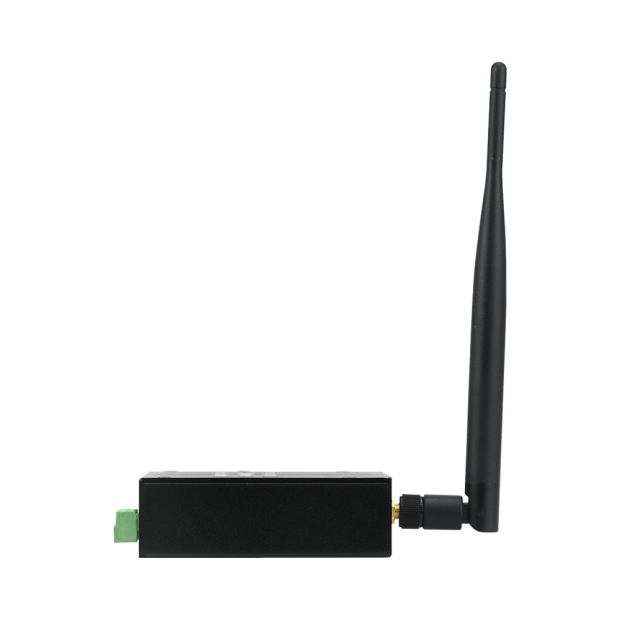

NDC-01-Pro_4 Relay-5.png
/
NDC-01-Pro_4 Relay-6.png
/
  • NDC-01-Pro_4 Relay-1.png
  • NDC-01-Pro_4 Relay-2.png
  • NDC-01-Pro_4 Relay-3.png
  • NDC-01-Pro_4 Relay-4.png

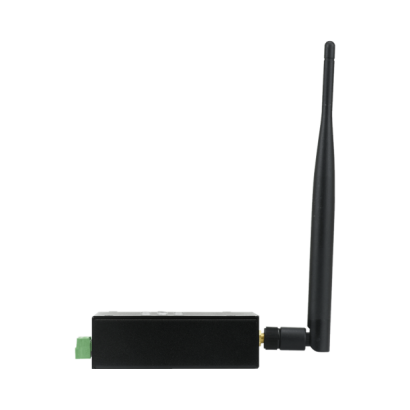

  • NDC-01-Pro_4 Relay-5.png
  • NDC-01-Pro_4 Relay-6.png
DETAIL

NDC-01 Pro + 4 Relay System Host

The NDC-01 Pro + 4 Relay functions as an industrial-grade computer and serves as the core platform for various ARCT systems, including:

  • PTL (Pick to Light) Intelligent Picking System

Users can easily access the system interface by entering the NDC-01’s IP address in a web browser on their smartphone, tablet, PC, or laptop — no additional app installation required. The operation is simple and intuitive.

Product Advantages

  • Stable and reliable Linux architecture

  • 4GB memory

  • Dual Micro HDMI outputs

  • Built-in ARCT wireless communication module for fast connectivity

  • 4 Relay output channels to control indicator lights or external devices, clearly reflecting system status

  • MySQL database support for efficient data management and storage

  • Cross-platform browser operation accessible via mobile devices and computers

  • Modular design enables seamless integration with various ARCT systems

NDC-01 Pro + 4 Relay RF Specifications

  • Frequency: 868 ~ 932 MHz

  • Transmission Rate: 12 Kbps

  • Modulation: FSK

  • Output Power: 0.1 Watt

  • Modulation Bandwidth: +/- 12 KHz

  • Channel Bandwidth: 200 KHz

  • Relay Switching Voltage: 250 VAC, 220 VDC

  • Maximum Relay Load Switching: 500 VA, 440 W

  • RF Output Interface: SMA (F)

  • Frequency Stability: 2 ppm @ -10℃ to +60℃

  • Power Consumption: Standby 200 mA; Transmit 500 mA

  • Operating Environment: 0℃ to +50℃; 20% RH to 90% RH (non-condensing)

  • Dimensions: 138 (W) × 90 (D) × 30 (H) mm

  • Weight: 450 g (excluding power adapter)

Mainboard Specifications

  • SoC: Broadcom BCM2712

  • CPU: 2.4 GHz quad-core 64-bit ARM Cortex-A76 (ARM v8, 16nm)

  • GPU: VideoCore VII GPU @ 800 MHz, supporting OpenGL ES 3.1 and Vulkan 1.2

  • Video Output: Dual 4Kp60 HDMI® displays with HDR support

  • Memory: 4GB LPDDR4X-4267 SDRAM

  • USB Ports: 2 × USB 3.0 (5 Gbps), 2 × USB 2.0

  • Ethernet: Gigabit Ethernet with PoE+ support (requires separate PoE+ HAT)

  • Power Supply: 5V/5A DC via USB Type-C
