PT-01 Wireless Service Button

PT-01 Wireless Service Button

Instant Response × Enhanced Service Efficiency

The PT-01 is a brand-new wireless service button designed specifically for the foodservice and premium service industries. When customers need assistance, they simply press the button, instantly sending a signal to staff members. This immediate communication greatly improves service efficiency and enhances customer satisfaction.
/
/
/
/
/
/

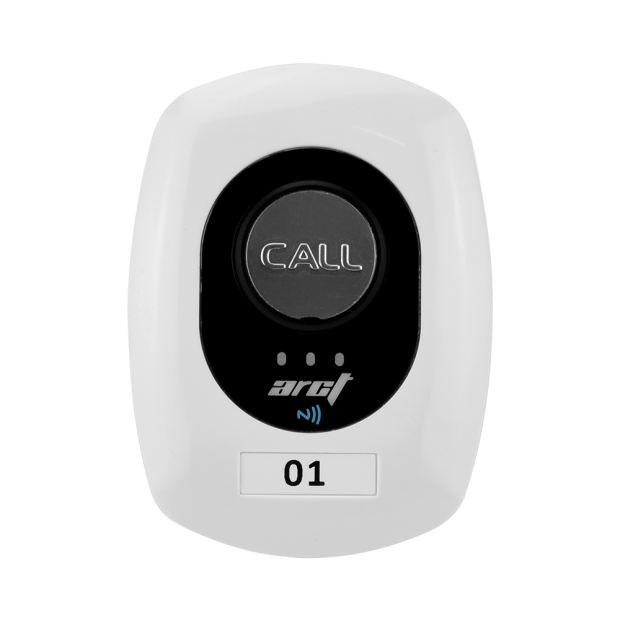

  • PT01-1.png

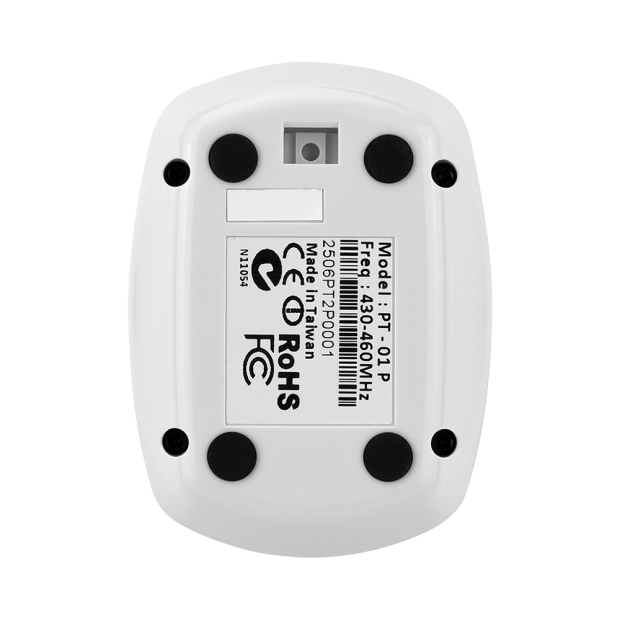

  • PT01-2.png

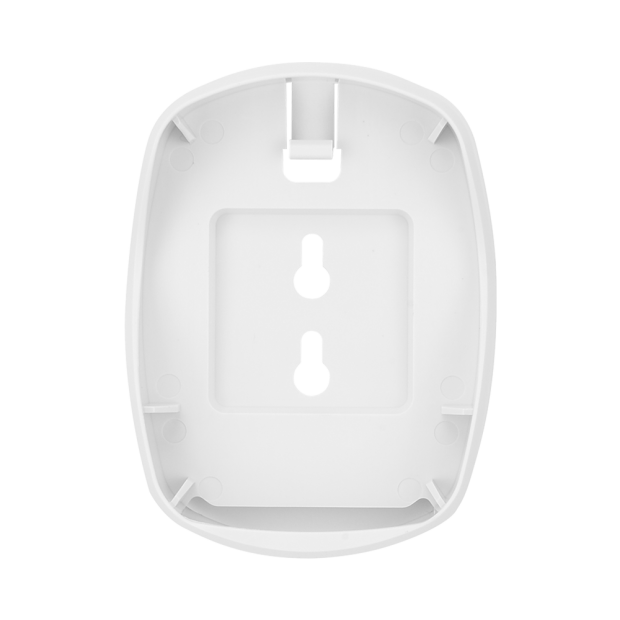

  • PT01-7.png

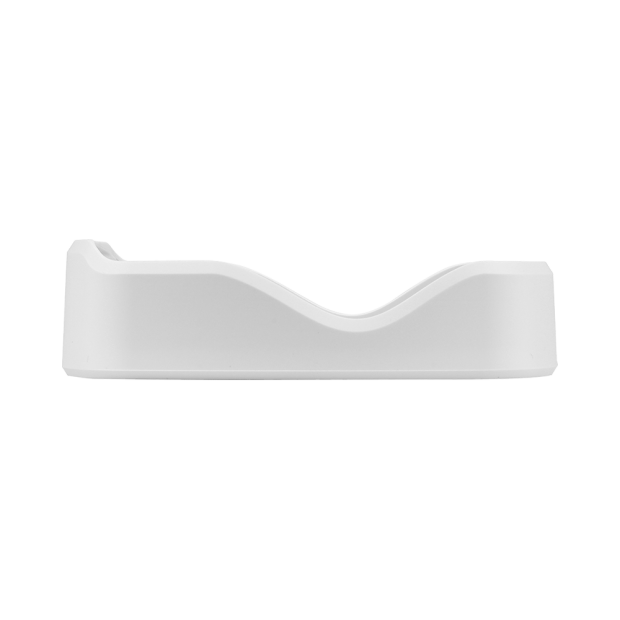

  • PT01-8.png

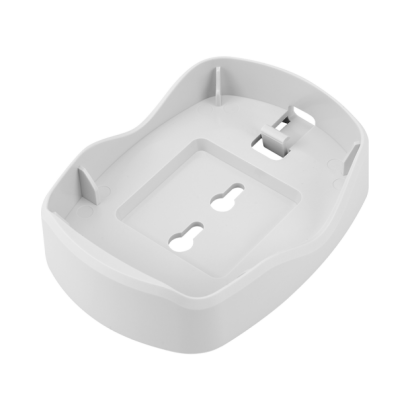

  • PT01-9.png

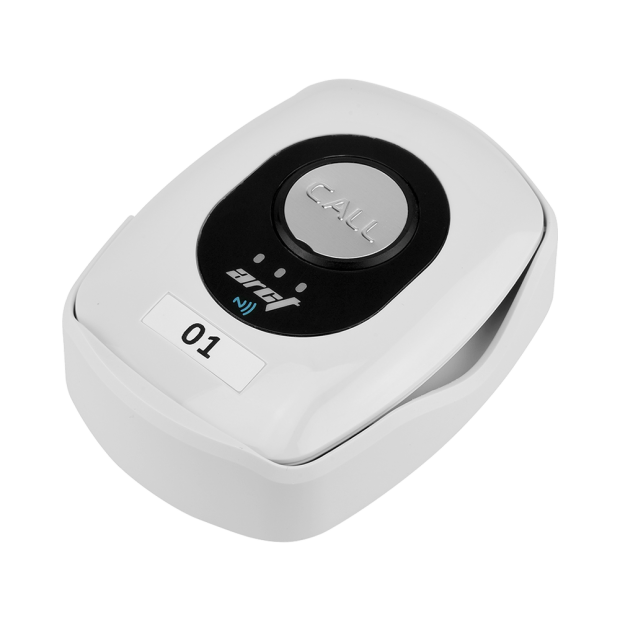

  • PT01-10.png
DETAIL

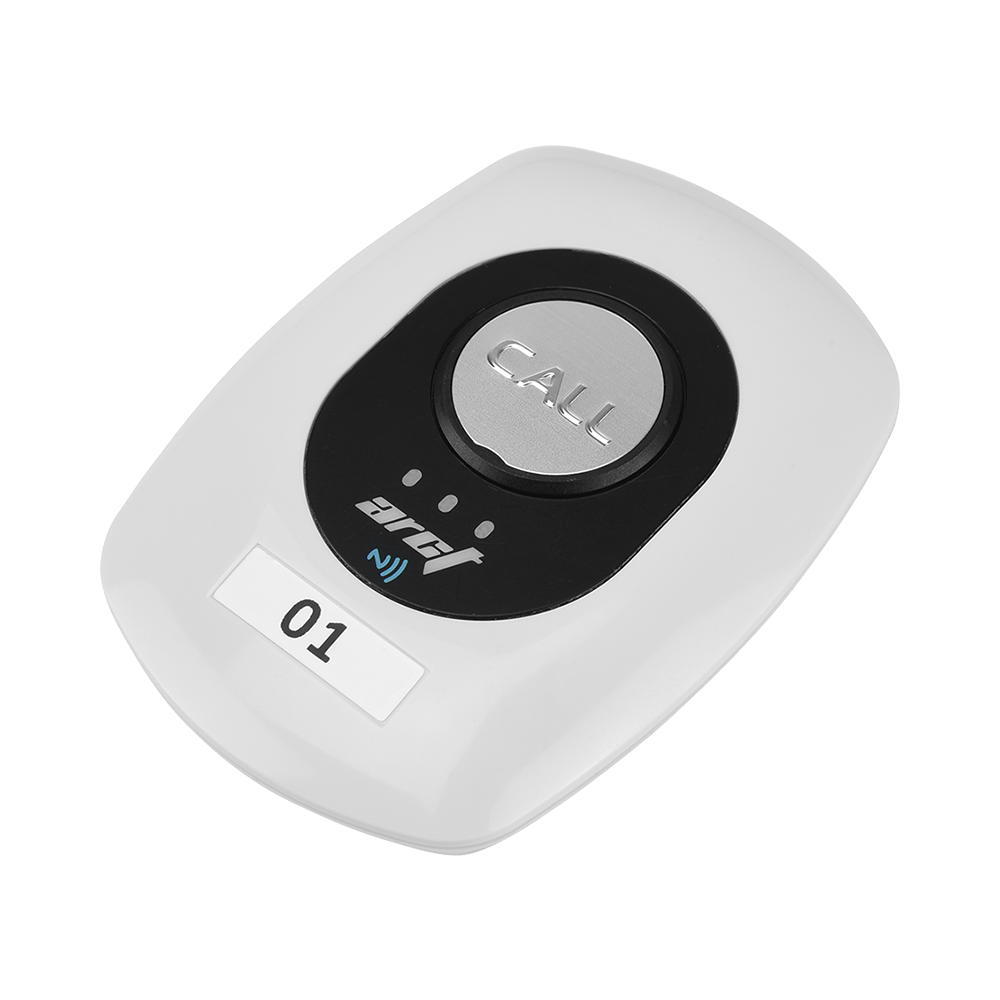

PT-01 Wireless Service Bell
Instant Call, Seamless Service Experience

The PT-01 is a newly developed wireless service bell designed for restaurants and premium service venues. With just a single press, customers can instantly send a signal to service staff, significantly improving response time and enhancing overall service efficiency and satisfaction.

Crafted with a high-strength polycarbonate (PC) casing, the PT-01 offers excellent water and moisture resistance, combining durability with refined aesthetics. Its sleek and minimalist design blends effortlessly into upscale environments such as fine-dining restaurants, hotels, and VIP lounges.

Key Advantages

  • One-Touch Operation – Simple, intuitive call button for quick assistance

  • Real-Time Wireless Transmission – Ensures fast response from service staff

  • Water-Resistant & Moisture-Proof – Suitable for a variety of environments

  • Premium Build – Durable housing with a refined, modern look

  • Versatile Use – Ideal for restaurants, hotels, reception lounges, and other premium venues

Features

  • Wireless Communication – No external wiring or power required

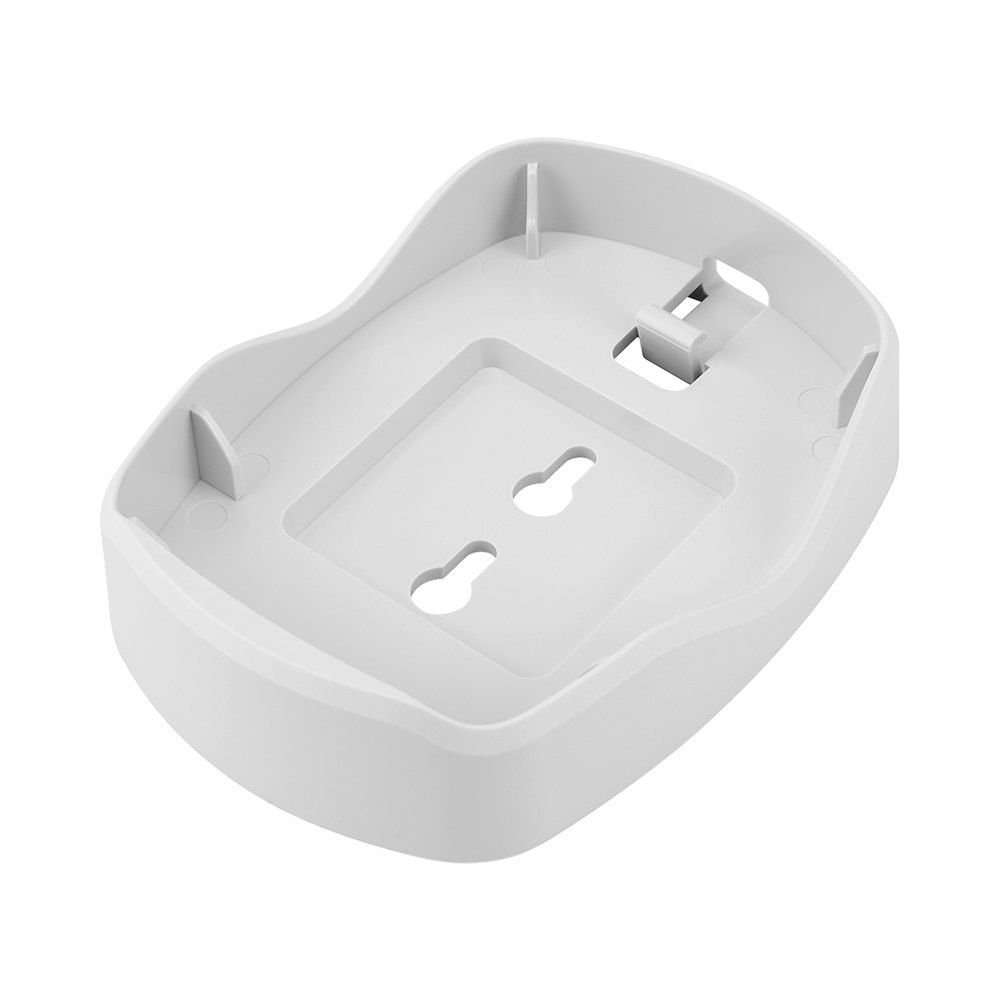

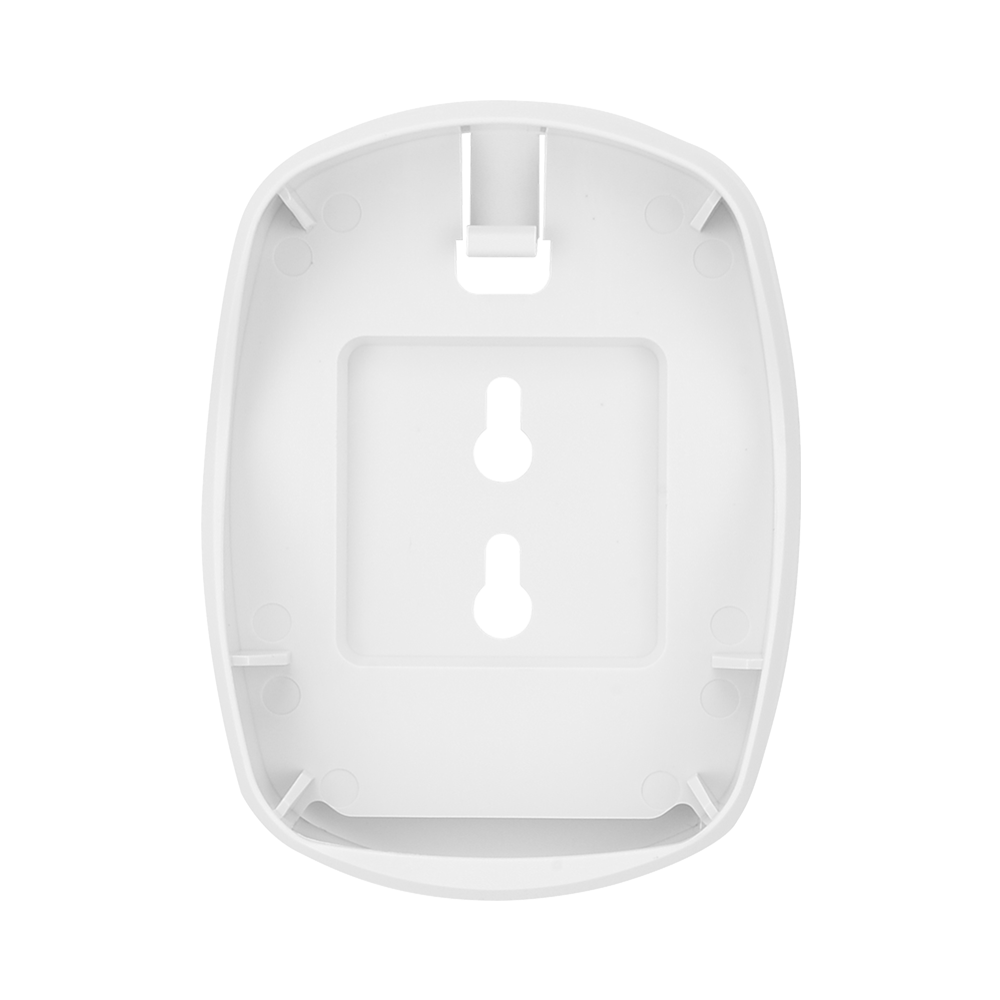

  • Easy Installation – Mountable in any location with minimal effort

  • User-Friendly – Intuitive single-button design

  • Dedicated System Code – Prevents interference from nearby systems

  • NFC Configuration Support – Setup via NFC-enabled smartphones

  • Extended Battery Life – Over 2 years of usage on standard batteries

Specifications

Parameter Details
Frequency Range 429~460 MHz
Data Rate 1200 bps
Communication Format ARCT Protocol & POCSAG
Modulation FSK
Bandwidth 25 kHz
RF Output Power 20 dBm (100 mW)
Communication Range Up to 100 meters
Frequency Stability ±10 ppm at -10°C ~ +60°C
Dimensions 75mm × 55mm × 18.5mm
Weight 60 g
Power Supply 2 × AAA Alkaline Batteries
Battery Life Over 2 years
Certifications FCC, CE, NCC
