PT-03 Wireless Service Button

PT-03 Wireless Service Button

Three-Button Design with Red Light Indicator — Enhancing the Customer Service Experience

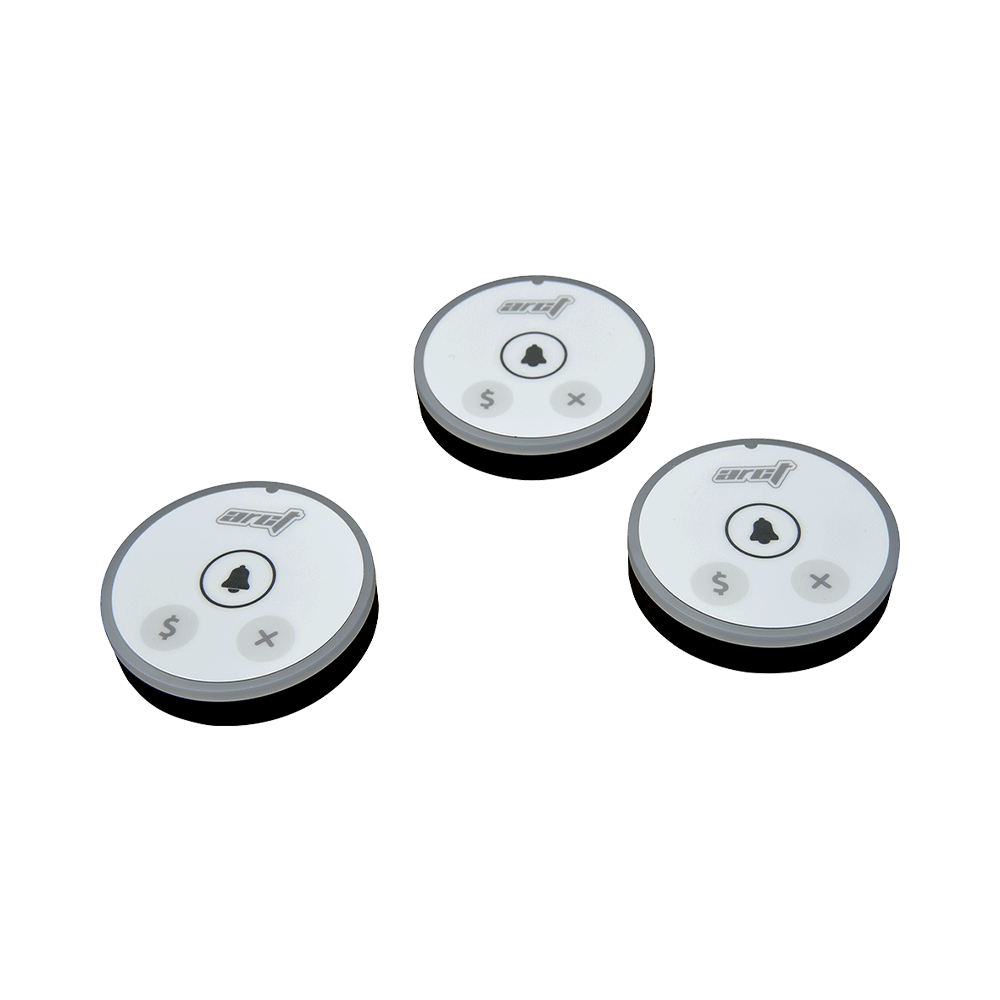

The PT-03 is an advanced wireless service bell equipped with three distinct function buttons, allowing customers to clearly communicate different service needs. Whether requesting assistance, asking for the bill, or canceling a call, each action can be completed with a single press.

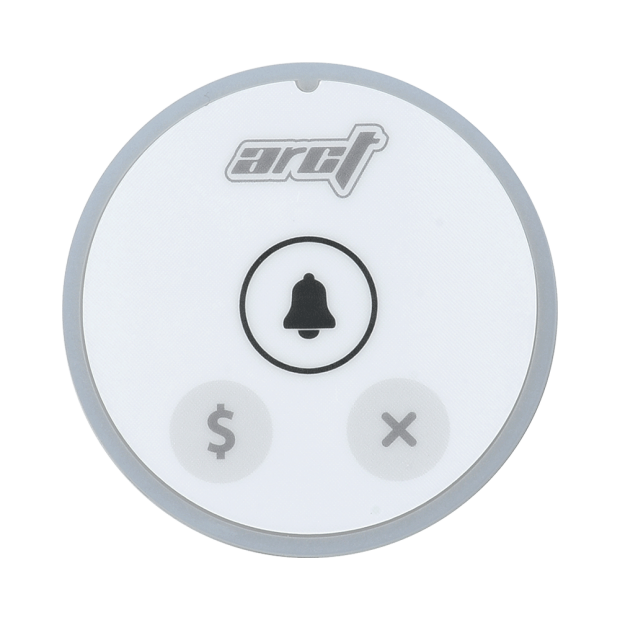

  • PT-03-1.png

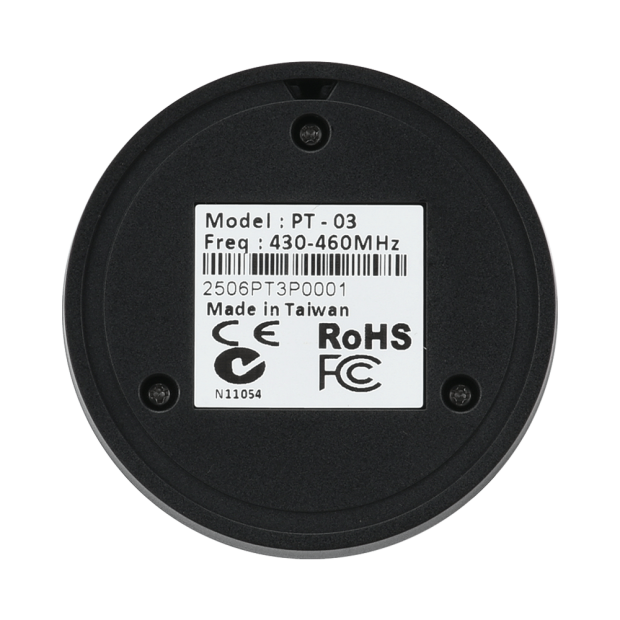

  • PT-03-2.png

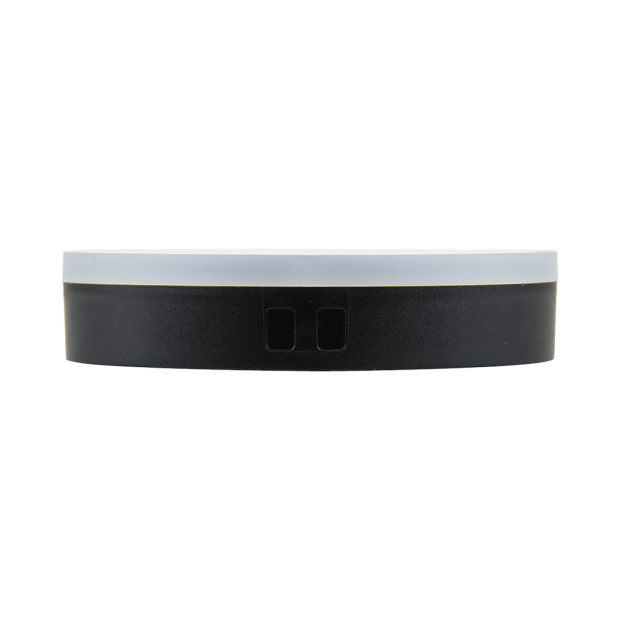

  • PT-03-3.png

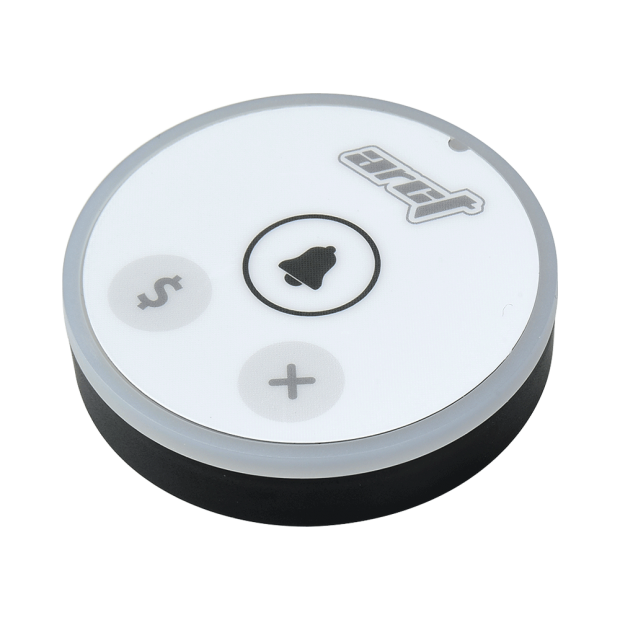

  • PT-03-4.png

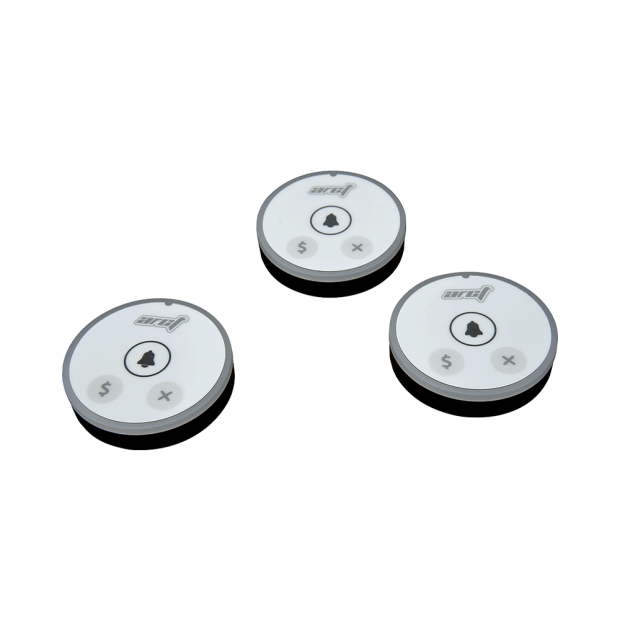

  • PT-03-5.png
DETAIL
 PT-03 Multi-Function Wireless Service Bell

Intuitive 3-Button Operation | Red Light Feedback | Designed for Service Efficiency

The PT-03 is an advanced wireless service bell featuring three independent function buttons, allowing guests to clearly indicate different service needs—such as calling for assistance, requesting the bill, or canceling a call.
When any button is pressed, a ring-shaped red LED light instantly illuminates, providing real-time visual feedback and allowing service staff to respond immediately to customer requests.

Built upon the design principles of the PT series, the PT-03 is made with high-strength PC material, offering water-resistant, moisture-proof, and impact-resistant performance. Its sleek and minimalist rounded design makes it a perfect fit for upscale restaurants, private dining rooms, hotel suites, conference rooms, and business settings—delivering both style and functionality.


Key Advantages

  • Three-Button Design: Supports multiple service needs with dedicated buttons

  • Red LED Indicator: Clearly visible circular red light for instant call status feedback

  • Water-Resistant & Durable: High-strength PC housing suitable for various environments

  • Minimalist Design: Smooth and modern aesthetics fit seamlessly into any commercial space

  • Reliable & Long-Lasting: Durable materials and proven wireless technology for long-term use


Highlighted Features

  • Wireless Operation: No external wiring or power required

  • Easy Installation: Mountable in any location with minimal effort

  • User-Friendly: Intuitive button layout for effortless operation

  • Unique System Code: Prevents interference from nearby systems

  • NFC Configuration Supported: Easily configure via NFC-enabled smartphones

  • Extended Battery Life: Over one year of usage per battery


Specifications

Parameter Details
Frequency 429–460 MHz
Data Rate 1200 bps
Communication Protocol ARCT Protocol & POCSAG
Modulation FSK
Bandwidth 25 KHz
RF Output Power 10 dBm (10 mW)
Communication Range Up to 50 meters (open area)
Frequency Stability ±10 ppm @ -10°C to +60°C
Dimensions 75mm × 55mm × 18.5mm
Power Supply CR2450 3V battery
Weight 30g
Battery Life Up to 2 years
Certifications FCC, CE, NCC
