PTL-100 Intelligent Indicator Light (White)

PTL-100 Intelligent Indicator Light (White)

Application for Pick To Light System

The PTL-100 is a specially designed indicator device for Pick To Light systems. It uses lights and numeric displays to assist pickers in quickly and accurately completing their picking tasks. Pick To Light is a highly efficient smart picking solution widely applied in logistics centers, warehouse operations, and e-commerce order fulfillment processes.
/
/
/
/
/
/

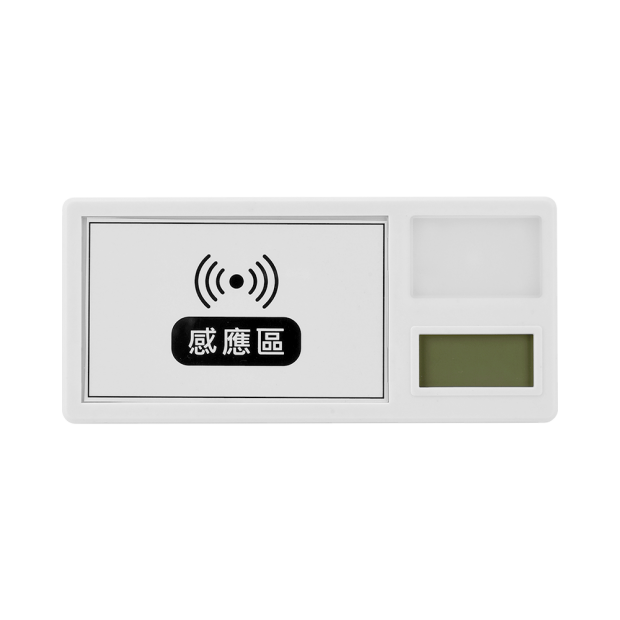

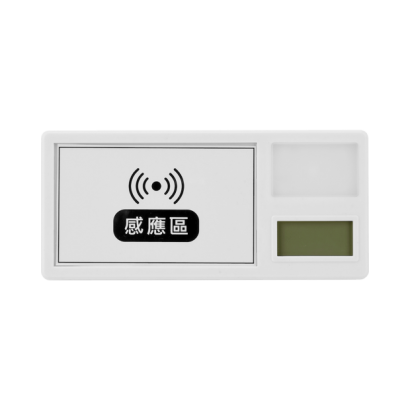

  • PTL-100-WH-1.png

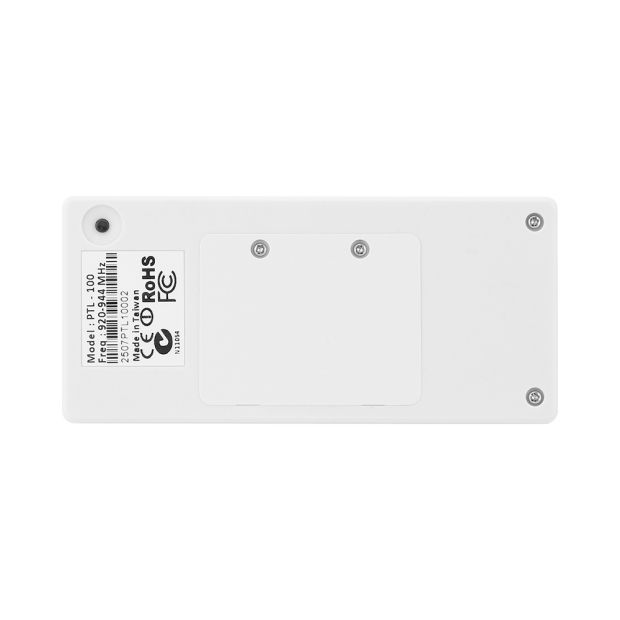

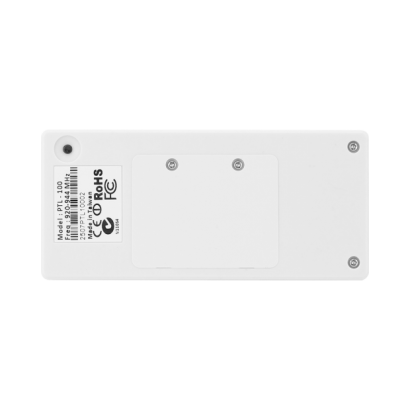

  • PTL-100-WH-2.png

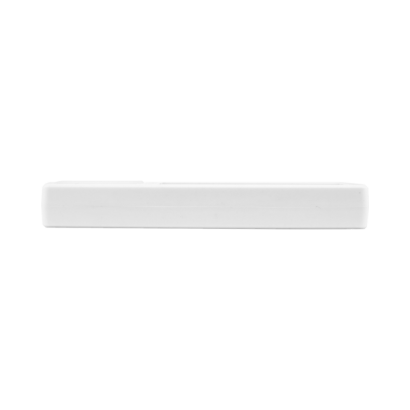

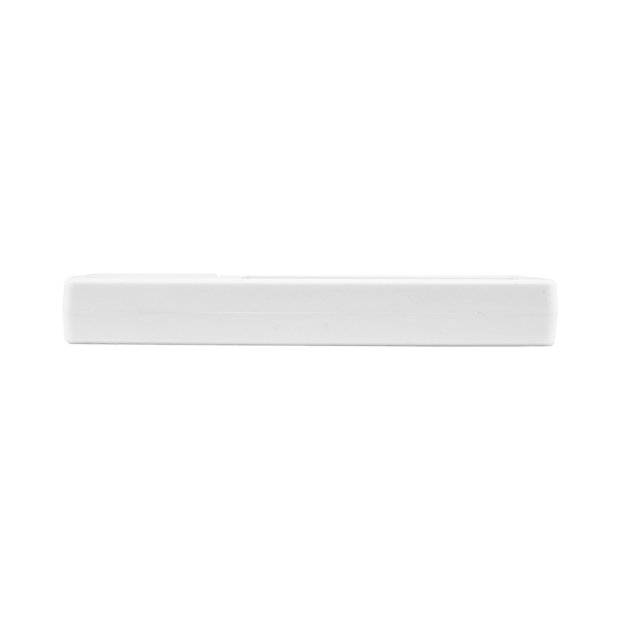

  • PTL-100-WH-3.png

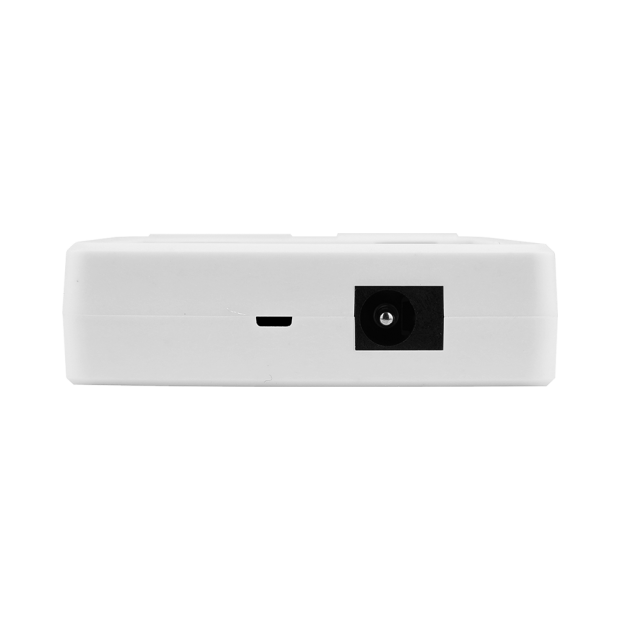

  • PTL-100-WH-4.png

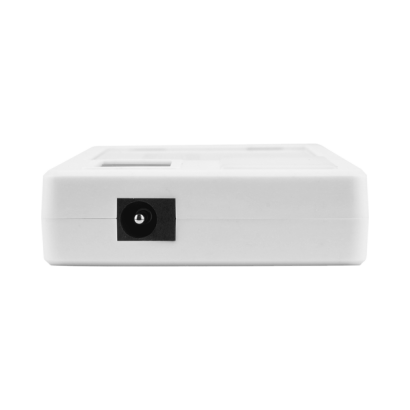

  • PTL-100-WH-5.png

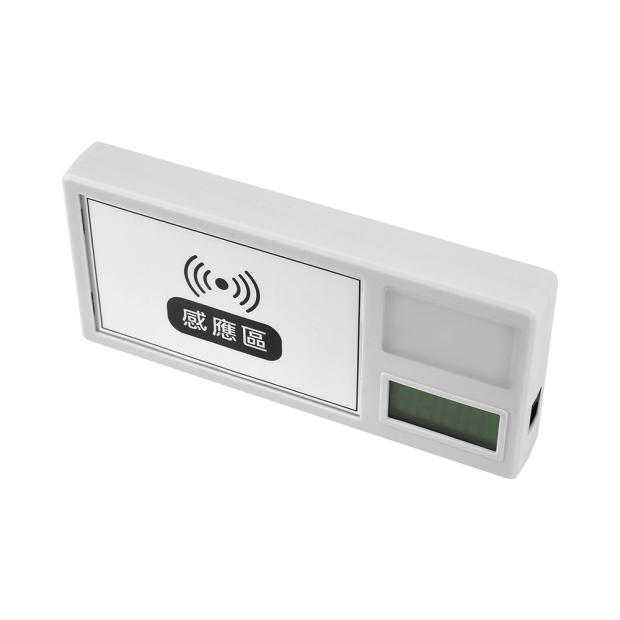

  • PTL-100-WH-6.png
DETAIL

PTL-100 Intelligent Indicator Light
Application: Pick To Light Smart Picking System

The PTL-100 is a purpose-built indicator device designed for Pick To Light systems. Utilizing visual LED signals and numeric LCD displays, it guides pickers to quickly and accurately complete picking tasks. Pick To Light is a highly efficient smart picking solution widely adopted in logistics centers, warehouse operations, and e-commerce fulfillment processes.

The system supports both manual operation and seamless integration with Warehouse Management Systems (WMS). Upon order generation, the corresponding PTL-100 units automatically illuminate and display the required quantity, guiding operators to pick precisely and confirm completion, significantly improving picking accuracy and operational efficiency.

As a core component for digital warehousing and intelligent logistics, the PTL-100 helps enterprises establish fast, accurate, and efficient shipping workflows.

Suitable Scenarios and Benefits

The Pick To Light system is ideal for warehouses requiring rapid assembly, high-frequency shipping, and strict logistics timing. It greatly accelerates picking speed, reduces errors, and optimizes warehouse management efficiency. This technology enables smarter warehouse operations, helping businesses achieve faster delivery and enhance their logistics competitiveness.

If your production line or warehouse demands a more efficient picking solution, the PTL (Pick-To-Light) system is the ideal choice.


Product Advantages

  • Intuitive LED light signals and numeric display simplify the picking process
  • Supports both manual operation and WMS system integration
  • Significantly reduces picking time and improves overall efficiency
  • Lowers error rates and increases order accuracy
  • Modular design enables flexible installation across various storage configurations

Features
  • UHF Band 868~932MHzFrequency Band: UHF 868~932 MHz
  • IP42 Rated for water and dust resistance
  • Multiple power options: rechargeable NiMH batteries, 5V DC power, or alkaline batteries
  • LCD numeric display
  • Communication range up to 200 meters (line-of-sight)
  • Multi-color LED indicators
  • Supports RFID programming function
  • Fully charged standby time up to 270 days


PTL-100 Specifications

Specification Details
Frequency 868~932 MHz
Data Rate 10,000 bps
Modulation FSK
Communication Protocol ARCT Protocol
Channel Bandwidth 50 KHz
Sound Volume 80 dBa @ 10 cm
Dimensions 110(L) x 56(W) x 18(H) mm
Charging Voltage 5 V DC
Charging Current 50 ~ 200 mA
Charging Time Approx. 6~10 hours
Battery 3 x 1.2V Ni-MH AAA
Standby Time 270 days (alkaline battery) / 180 days (NiMH)
Usage Time 90 days @ 50 activations/day, 30s each activation; 30 days @ 400 activations/day, 30s each
Certifications FCC, CE, NCC
